| FSMLF327 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

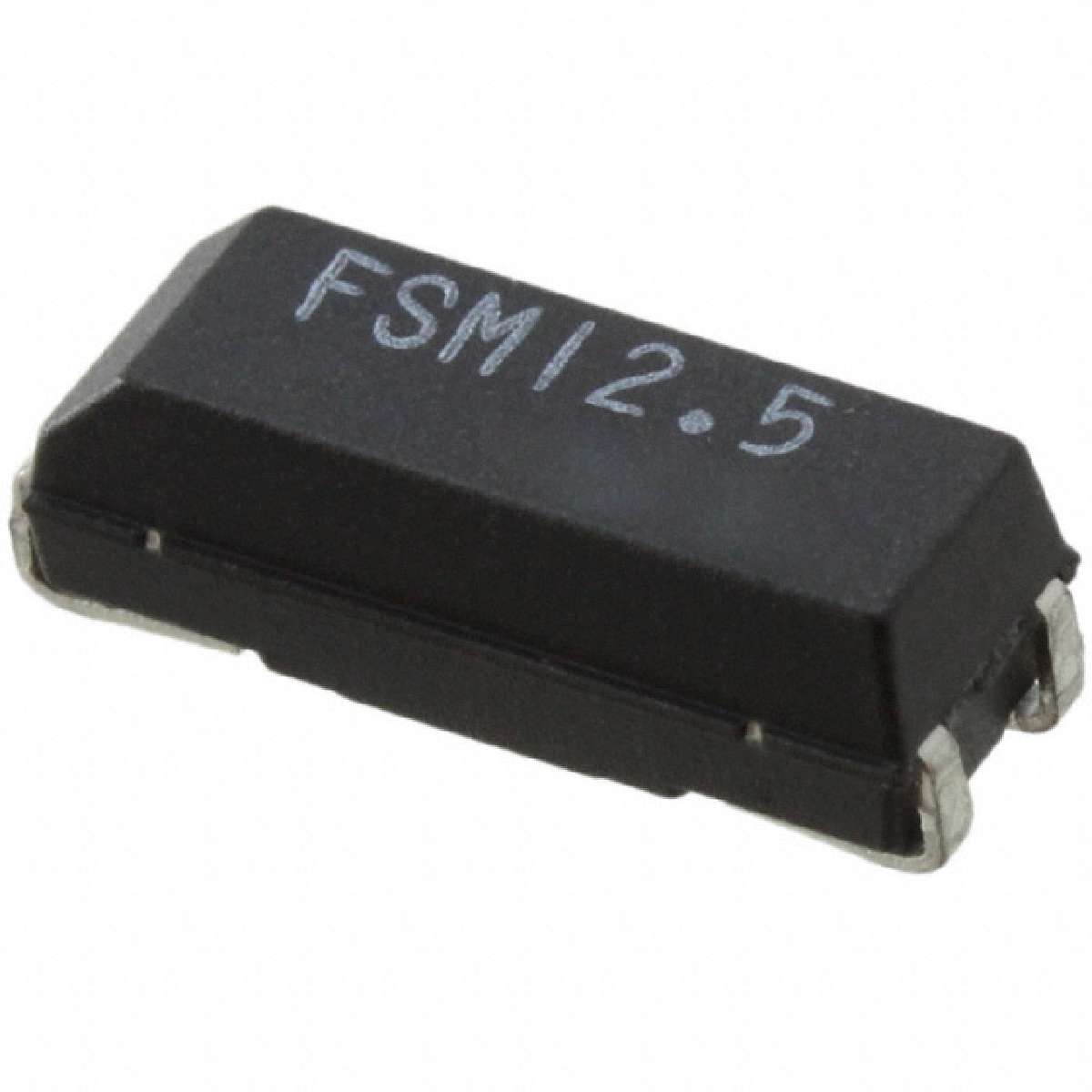

FSMLF Series 32.768 kHz ±20 ppm 12.5 pF -40 to +85 °C Surface Mount Tuning Fork
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Manufacturer: | Fox |
|---|---|
| Packaging: | Reel |
| Load Capacitance: | 12.5 pF |
| Operating Temperature Range: | - 40 C to + 85 C |
| Factory Pack Quantity: | 2000 |
| RoHS: | Details |
| Package / Case: | 10.41 mm x 4.06 mm |
| Tolerance: | 20 PPM |
| Type: | Tuning Fork Watch Crystal SMD |
| ECCN | EAR99 |
| Length: | 10.41 mm |
| Width: | 4.06 mm |
| Series: | FSMLF |
| Frequency: | 32.768 kHz |
| Brand: | Fox |
| Termination Style: | SMD/SMT |
| Product Category: | Crystals |
| Height: | 3.56 mm |
| Mounting Style: | SMD/SMT |
