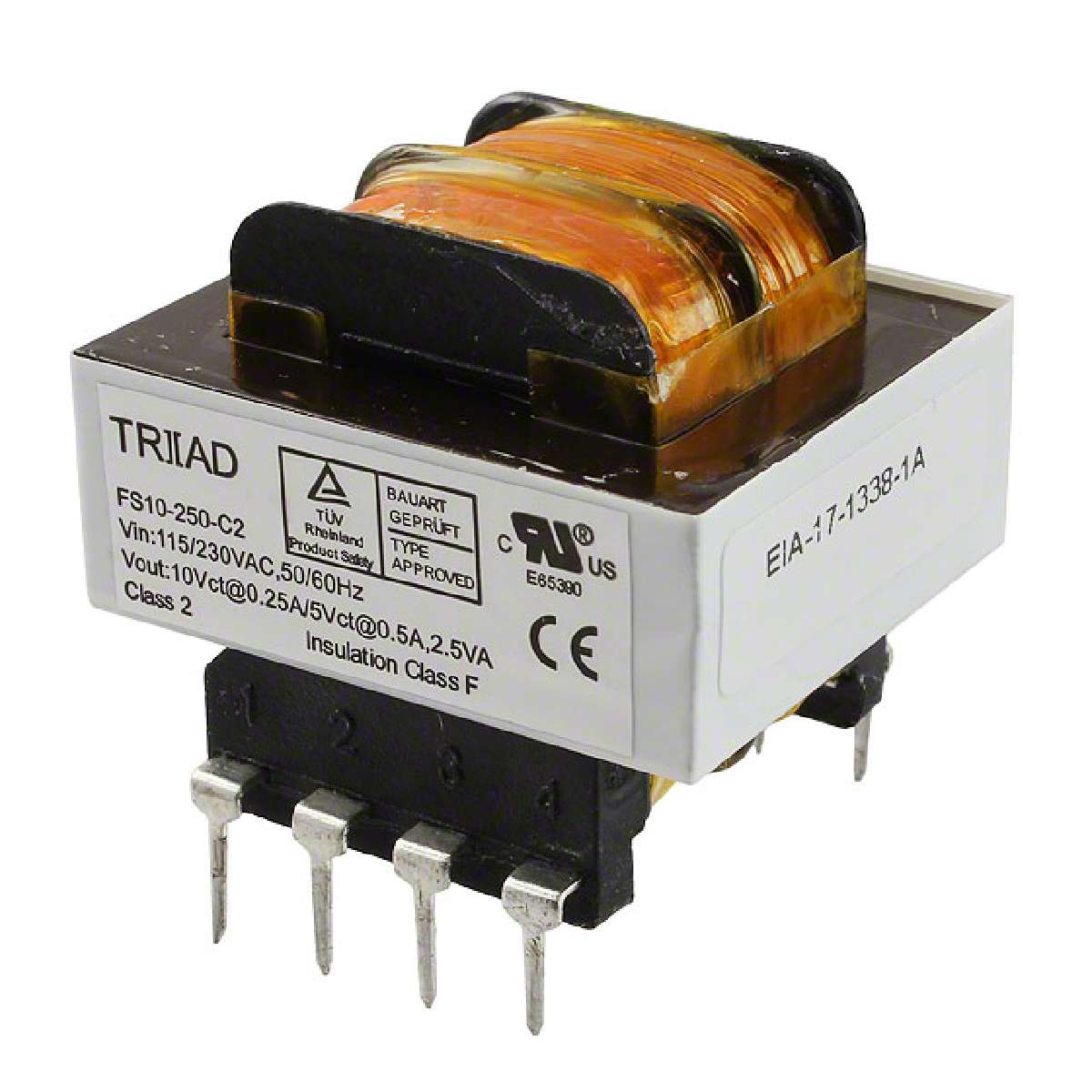

| FS10-250-C2-B | ||
|---|---|---|
|
|
||
|
||
| Product description : FS Series Dual Primary/Secondary Class 2 8 Pin Split Bobbin Power Transformer | ||
| SPQ：10 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 4200Vrms |
|---|---|
| Voltage - Secondary (Full Load) | Parallel 5V, Series 10V |
| Type | Laminated Core |
| Center Tap | No |
| Size / Dimension | 34.93mm L x 28.58mm W |
| Voltage - Primary | 115V, 230V |
| Manufacturer | Triad Magnetics |
| Secondary Winding(s) | Dual |
| Mounting Type | Through Hole |
| Primary Winding(s) | Dual |
| Power - Max | 2.4 VA |
| Current - Output (Max) | Parallel 500mA, Series 250mA |
| Termination Style | PC Pin |
| Part Status | Active |
| Category | Transformers |
| Height - Seated (Max) | 30.15mm |
| Family | Power Transformers |
