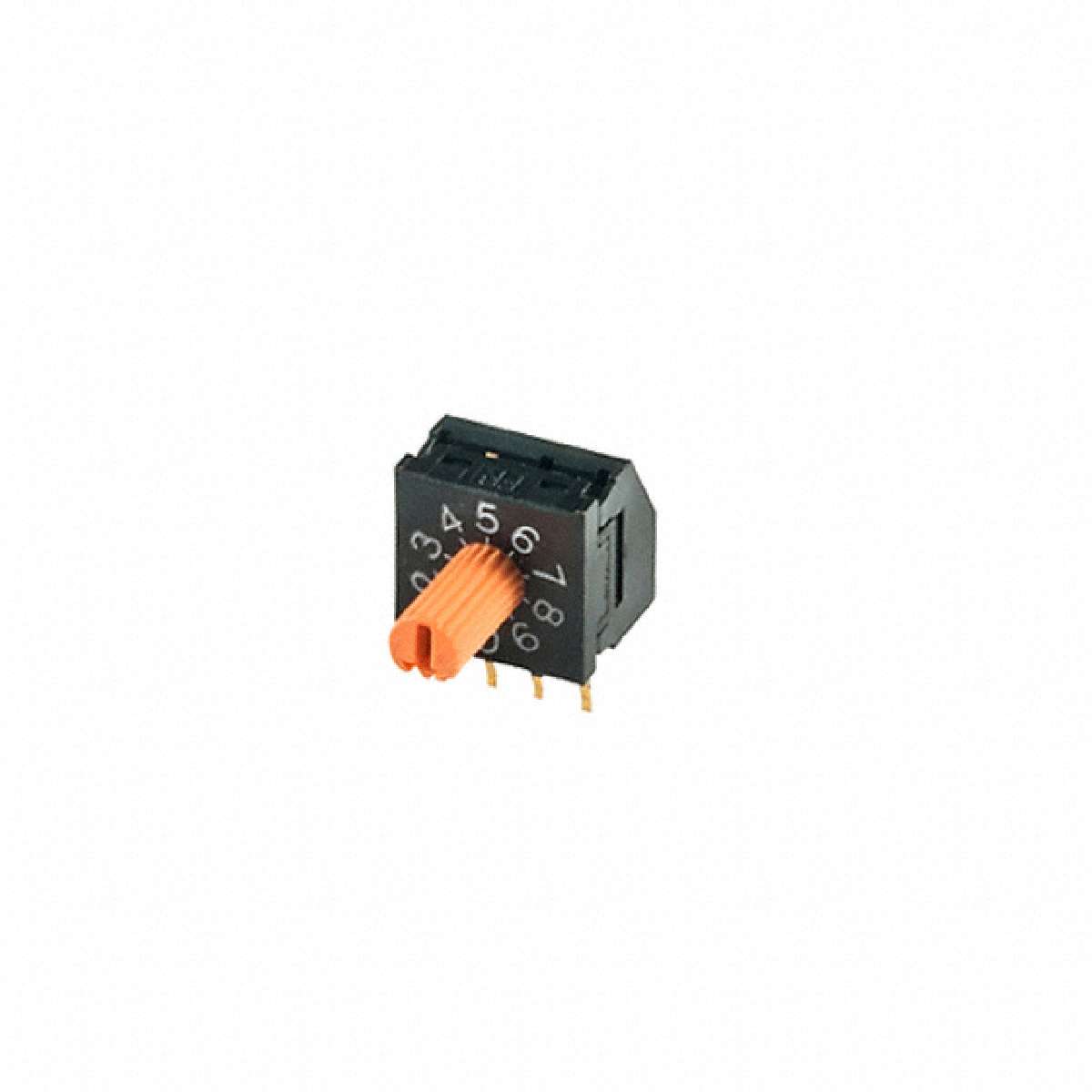

| FR01KR16H-06XL-S | ||
|---|---|---|
|
|
||
|
||
| Product description : FR01 Series Side Actuated 16 Position Through Hole Rotary DIP Switch Tube | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 5VDC |
|---|---|
| Termination Style | PC Pin |
| Electrical Life | 10,000 Steps |
| Washable | No |
| Packaging | Tube |
| Circuit | Hexadecimal |
| Part Status | Active |
| Contact Material | Copper Alloy |
| Length | 0.393" (10.00mm) |
| Number of Positions | 16 |
| Family | DIP Switches |
| Current Rating | 100mA |
| ECCN | EAR99 |
| Contact Finish | Gold |
| Body Material | Polyamide (PA), Nylon, Glass Filled |
| Manufacturer | NKK Switches |
| Mounting Type | Through Hole, Right Angle |
| Height Above Board | 0.394" (10.00mm) |
| Actuator Type | Rotary with Shaft |
| Category | Switches |
| Actuator Level | Raised |
| Mechanical Life | 10,000 Steps |
| Series | FR01 |
| Operating Temperature | -25°C ~ 85°C |
| Pitch | 0.100" (2.54mm), Full |
