FR01FC10H-06XL-S
FR01FC10H-06XL-S
  • ACTIVE
  • EAR99

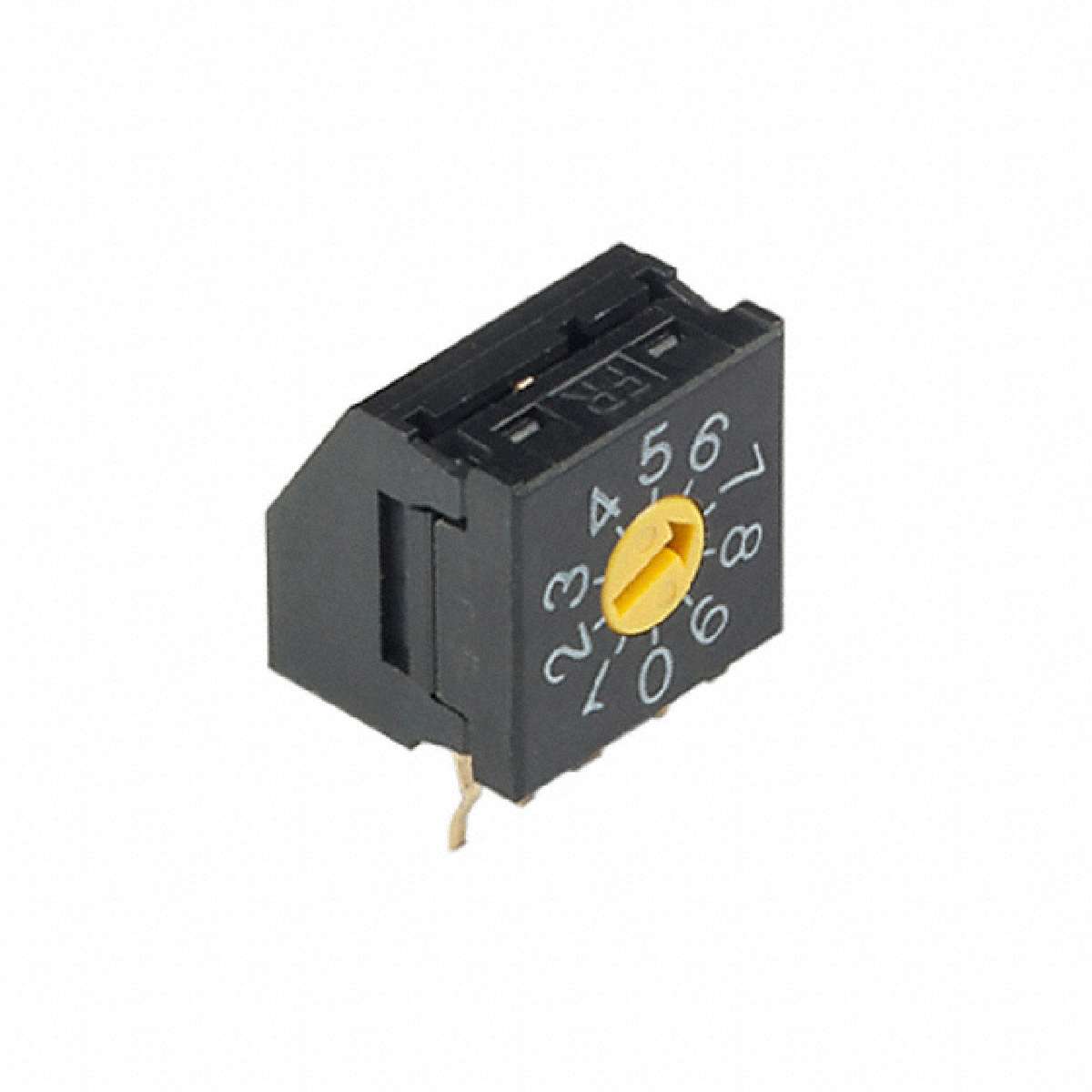

Product description : FR01 Series 0.1A 5 Vdc 10 Position Through Hole Rotary Switch
SPQ:50
Datasheet : --
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Voltage Rating 5VDC
Termination Style PC Pin
Electrical Life 10,000 Steps
Washable No
Packaging Tube
Circuit BCD Complement
Part Status Active
Contact Material Copper Alloy
Length 0.393" (10.00mm)
Number of Positions 10
Family DIP Switches
Current Rating 100mA
ECCN EAR99
Contact Finish Gold
Body Material Polyamide (PA), Nylon, Glass Filled
Manufacturer NKK Switches
Mounting Type Through Hole, Right Angle
Height Above Board 0.394" (10.00mm)
Actuator Type Rotary for Tool
Category Switches
Actuator Level Flush, Recessed
Mechanical Life 10,000 Steps
Series FR01
Operating Temperature -25°C ~ 85°C
Pitch 0.100" (2.54mm), Full
