| FP3-4R7-R | ||
|---|---|---|
|
|
||
|
||

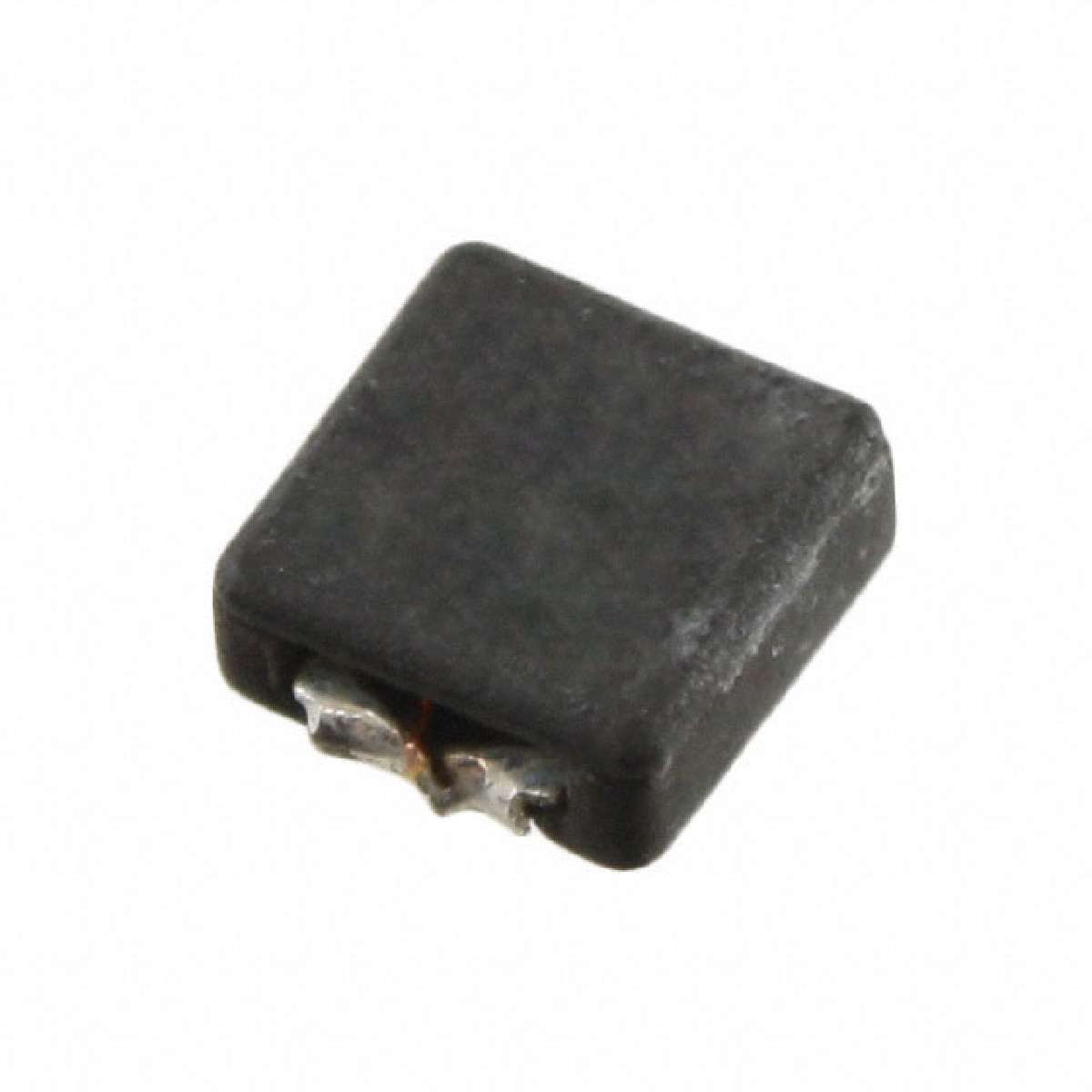

| Product description : FP3 Series 7.25 x 6.7 x 3 mm 4.7 uH 3.23 A ±15% 40 mΩ Unshielded SMT Inductor | ||
| SPQ：1 | ||
| Datasheet : |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Type | Wirewound |
|---|---|
| Inductance | 4.7µH |
| Current - Saturation | 4.2A |
| Part Status | Active |
| Manufacturer | Eaton |
| Material - Core | Powdered Iron |
| Family | Fixed Inductors |
| Shielding | Unshielded |
| DC Resistance (DCR) | 40 mOhm Max |
| Current Rating | 3.23A |
| ECCN | EAR99 |
| Package / Case | Nonstandard |
| Tolerance | ±15% |
| Size / Dimension | 0.285" L x 0.263" W (7.25mm x 6.70mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Series | FLAT-PAC 3 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 155°C |
| Packaging | Cut Tape (CT) |
| Frequency - Test | 100kHz |
| Datasheet： |
|---|
You can comment after logging in.
库存信息3到货提醒
供应商编码:SP1027
线下原厂及原厂授权代理商库存，接单后需要再次确认价格和数量
$4.5756
￥38.00332001353800
查看价格阶梯
| 1+ | $4.5756 |
|---|---|
| 10+ | $3.7386 |
| 25+ | $3.62855 |
| 100+ | $3.46425 |
| 250+ | $3.2519 |
| 500+ | $3.19455 |
| 1000+ | $3.1372 |
| 库存数量 | 1653 | 库存更新于 2025-01-09 |
|---|---|---|
| 订货周期 | 12Weeks | |
| Supplier SPQ/MOQ | 1/1 | |
| 库存地 | -- | |
| 生产批次 | 1719 |
