| FOD8318 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

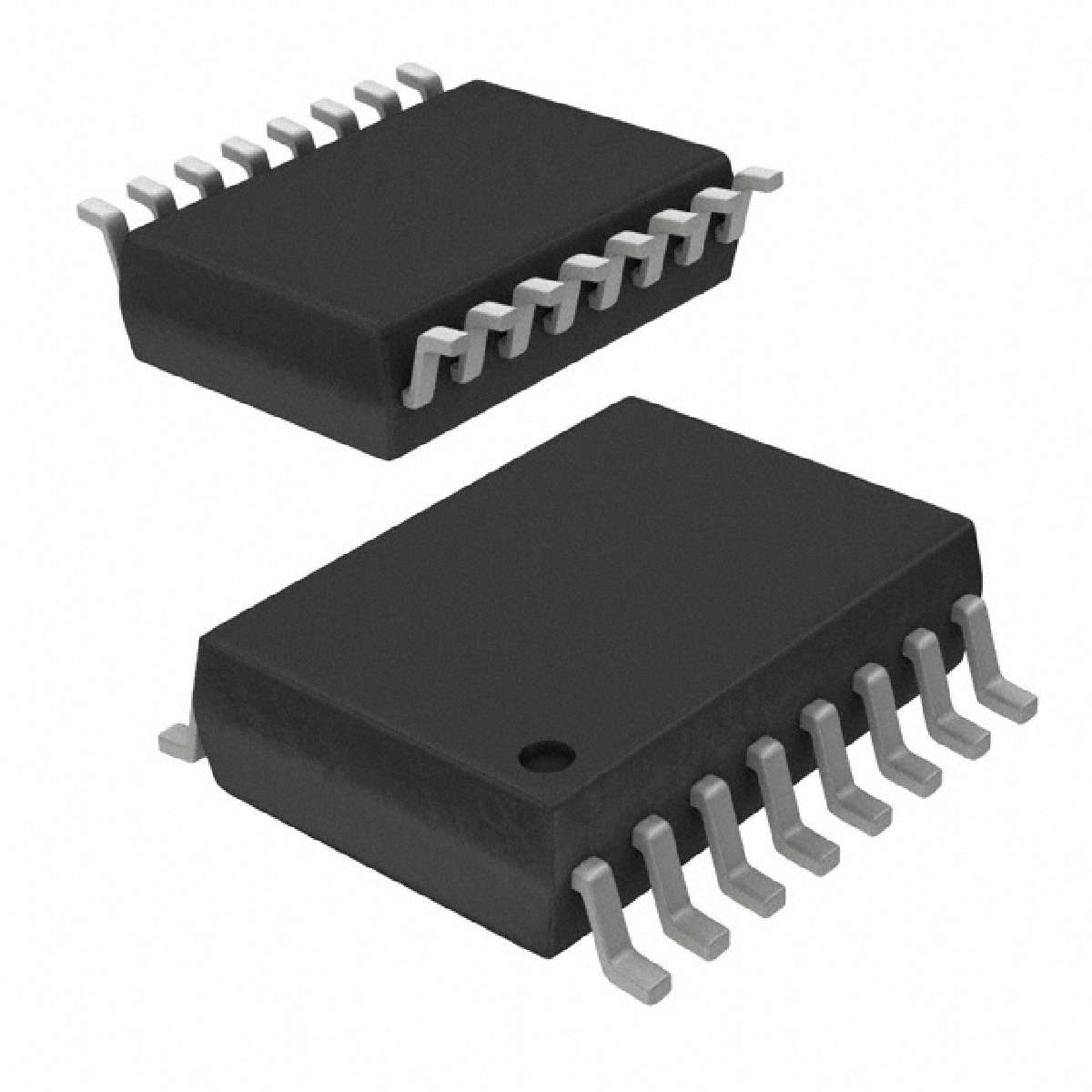

FOD8318 Series Single Channel 30 V 4243 Vrms IGBT Drive Optocoupler - SOIC-16
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Fall Time: | 34 ns |
|---|---|
| Maximum Continuous Output Current: | 2.5 A |
| Packaging: | Bulk |
| Length: | 10.3 mm |
| Output Type: | Push-Pull |
| Operating Supply Voltage: | 15 V to 30 V |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Fairchild Semiconductor |
| Package / Case: | SO-16 |
| Height: | 3 mm |
| Unit Weight: | 0.026738 oz |
| Maximum Operating Temperature: | + 100 C |
| Number of Channels: | 1 Channel |
| Width: | 7.5 mm |
| Isolation Voltage: | 4243 Vrms |
| Manufacturer: | Fairchild Semiconductor |
| Propagation Delay - Max: | 500 ns |
| Pd - Power Dissipation: | 100 mW |
| Factory Pack Quantity: | 1000 |
| RoHS: | Details |
| Product Category: | Logic Output Optocouplers |
| Rise Time: | 34 ns |
| Type: | IGBT |
| ECCN | EAR99 |
