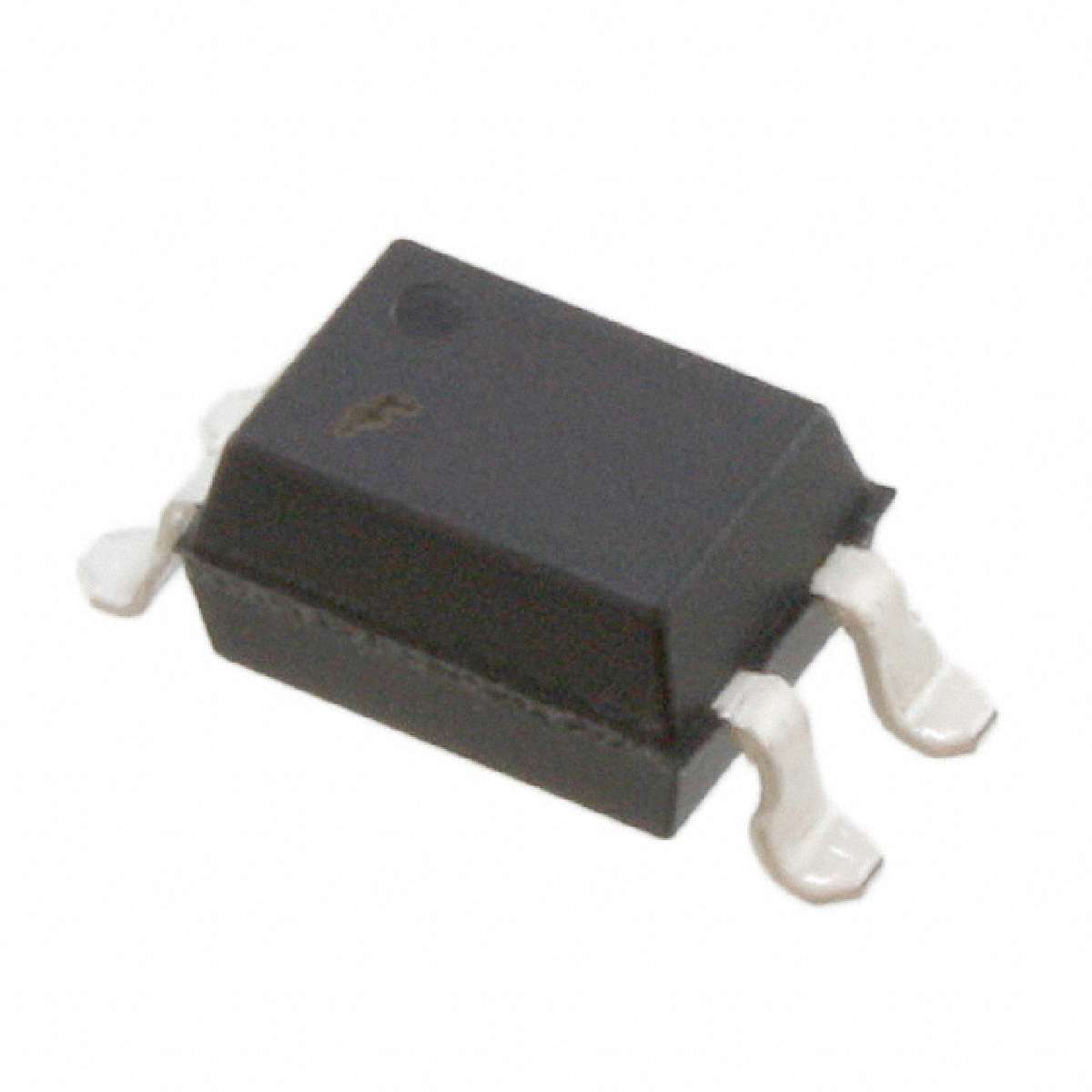

| FOD817D3SD | ||
|---|---|---|
|
|
||
|
||
| Product description : DIP4 SMT Single Channel 70 V 5000 Vrms Phototransistor Optocoupler | ||
| SPQ：1 | ||
| Datasheet : |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Packaging: | Reel |
|---|---|
| Maximum Collector Emitter Voltage: | 70 V |
| Isolation Voltage: | 5000 Vrms |
| Pd - Power Dissipation: | 200 mW |
| Package / Case: | SMD-4 |
| Configuration: | 1 Channel |
| Vf - Forward Voltage: | 1.4 V |
| Number of Channels: | 1 Channel |
| Length: | 5.1 mm |
| Manufacturer: | Fairchild Semiconductor |
| Vr - Reverse Voltage: | 6 V |
| Brand: | Fairchild Semiconductor |
| Product Category: | Transistor Output Optocouplers |
| Maximum Operating Temperature: | + 110 C |
| Width: | 7 mm |
| Maximum Collector Emitter Saturation Voltage: | 0.2 V |
| Minimum Operating Temperature: | - 55 C |
| Current Transfer Ratio: | 600 % |
| Height: | 4 mm |
| Mounting Style: | SMD/SMT |
| Maximum Collector Current: | 50 mA |
| Fall Time: | 18 us |
| If - Forward Current: | 50 mA |
| Output Type: | NPN Phototransistor |
| Factory Pack Quantity: | 1000 |
| RoHS: | Details |
| Rise Time: | 18 us |
| ECCN | EAR99 |
| Datasheet： |
|---|
You can comment after logging in.
- Replacement Products
- Associated Product
- P2P:A direct drop-in replacement or second source option. Possible minor parametric differences. No change required in most designs.
- Functional Equivalent:A direct replacement or second source option. Possible major parametric differences. Changes may be required in some designs.
- Contain: The functions that one IC can achieve contain the functions that another IC can achieve.
- For more support, please contact us. Email:shirleyxie@ameya360.com QQ:1376166204
Availability5Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 188000 | Update On 2025-06-24 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | 2403 |
Supplier Code:SP1036
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.17916
￥1.4880399993049163
| 1+ | $0.17916 |
|---|---|
| 50+ | $0.13885 |
| 1000+ | $0.11558 |
| stock | 1024 | Update On 2025-02-22 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1000/1 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1038
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.15953
￥1.3250000000000000
| 1+ | $0.15953 |
|---|---|
| 100+ | $0.14879 |
| stock | 28 | Update On 2025-02-22 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | 2309 |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.13005
￥1.08015
| stock | 193000 | Update On 2025-02-22 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 1/1000 | |
| Location | -- | |
| DateCode | 2345 |
