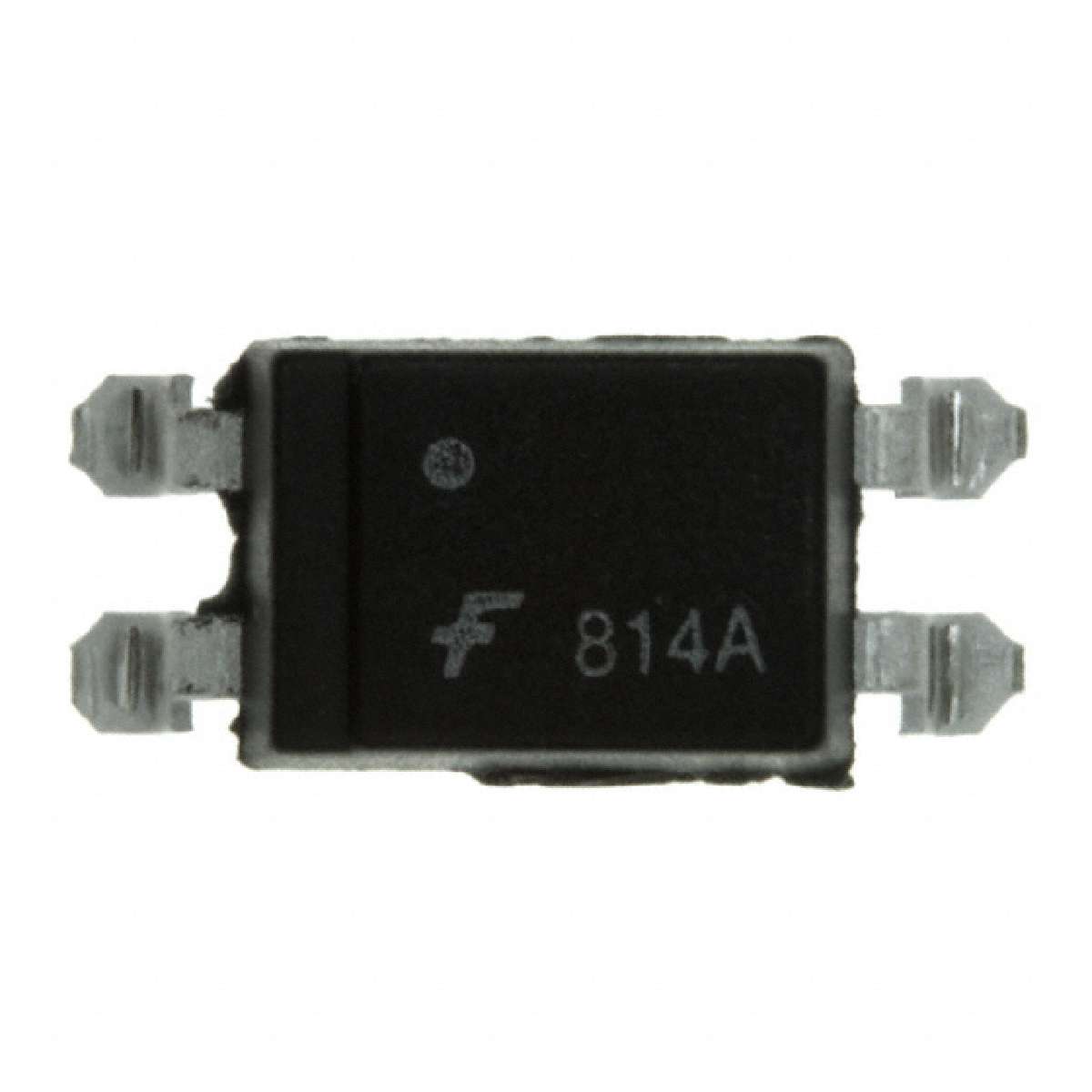

| FOD814AS | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Single Channel 70 V 5000 Vrms Surface Mount Phototransistor Optocoupler - SDIP-4
|
||
| 标准包装：2000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Packaging: | Bulk |
|---|---|
| Maximum Collector Emitter Voltage: | 70 V |
| Isolation Voltage: | 5000 Vrms |
| Pd - Power Dissipation: | 200 mW |
| Package / Case: | SMD-4 |
| Configuration: | 1 Channel |
| Vf - Forward Voltage: | 1.4 V |
| Number of Channels: | 1 Channel |
| Length: | 5.1 mm |
| Manufacturer: | Fairchild Semiconductor |
| Factory Pack Quantity: | 2000 |
| RoHS: | Details |
| Rise Time: | 18 us |
| ECCN | EAR99 |
| Width: | 7 mm |
| Maximum Collector Emitter Saturation Voltage: | 0.2 V |
| Minimum Operating Temperature: | - 55 C |
| Current Transfer Ratio: | 150 % |
| Height: | 4 mm |
| Mounting Style: | SMD/SMT |
| Maximum Collector Current: | 50 mA |
| Fall Time: | 18 us |
| If - Forward Current: | 50 mA |
| Output Type: | NPN Phototransistor |
| Brand: | Fairchild Semiconductor |
| Product Category: | Transistor Output Optocouplers |
| Maximum Operating Temperature: | + 105 C |
