| FOD3180SDV | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

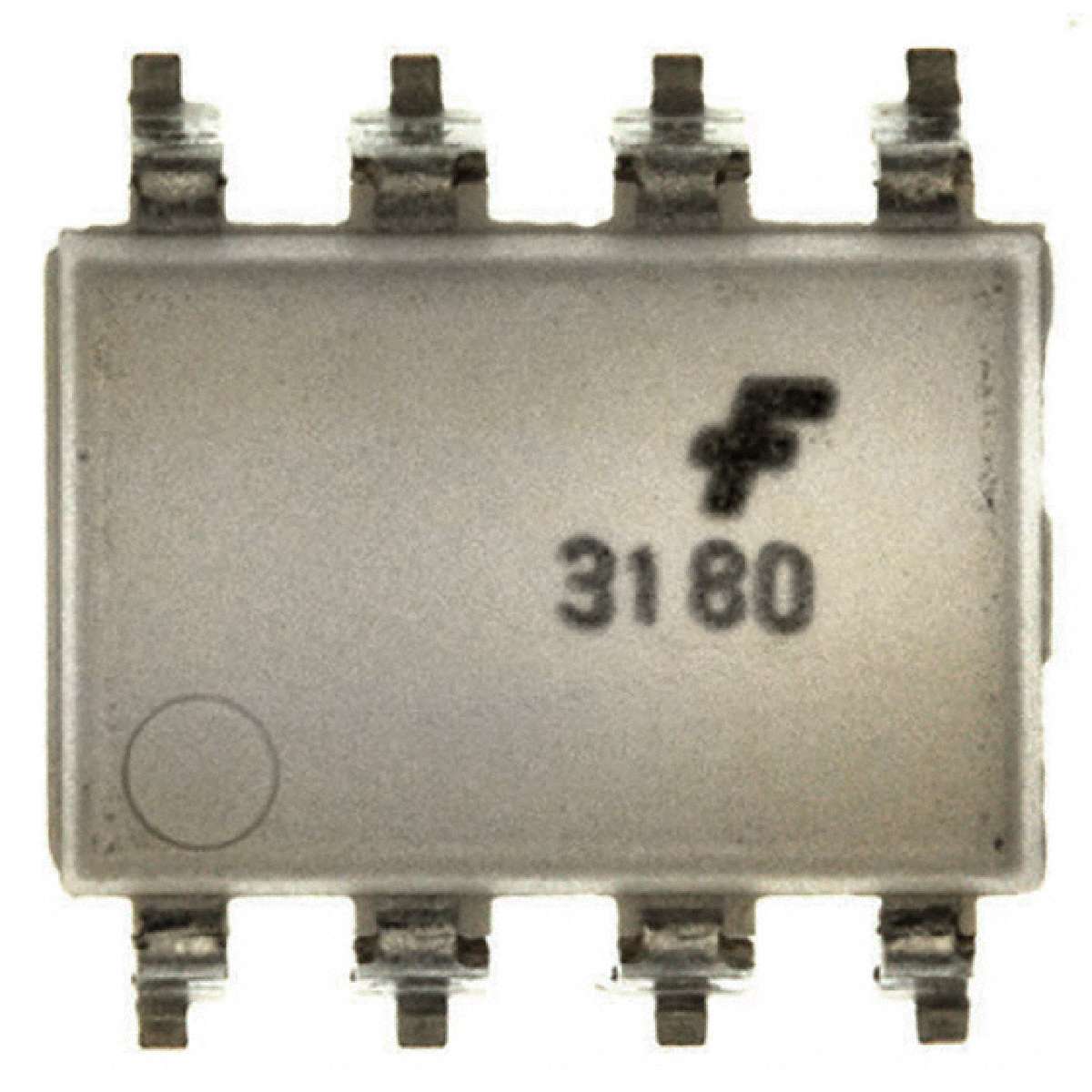

DIP-8 Surface Mount 1 Channel 25 V 5000 Vrms MOSFET Gate Driver Optocoupler
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Width: | 6.86 mm |
|---|---|
| Number of Channels: | 1 Channel |
| Isolation Voltage: | 5000 Vrms |
| If - Forward Current: | 25 mA |
| Output Type: | Push-Pull |
| Pd - Power Dissipation: | 295 mW |
| Factory Pack Quantity: | 1000 |
| RoHS: | Details |
| Product Category: | MOSFET Output Optocouplers |
| Rise Time: | 75 ns |
| Vf - Forward Voltage: | 1.43 V |
| ECCN | EAR99 |
| Fall Time: | 55 ns |
| Packaging: | Reel |
| Length: | 9.91 mm |
| Manufacturer: | Fairchild Semiconductor |
| Vr - Reverse Voltage: | 5 V |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Fairchild Semiconductor |
| Package / Case: | SMD-8 |
| Height: | 5.08 mm |
| Unit Weight: | 0.025397 oz |
| Maximum Operating Temperature: | + 100 C |
| 数据手册： |
|---|
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$2.79
￥23.17275920613419
See more prices
| 1+ | $2.79 |
|---|---|
| 10+ | $2.3994 |
| 25+ | $2.3684 |
| 100+ | $2.14675 |
| 250+ | $2.0894 |
| stock | 377 | Update On 2024-11-30 |
|---|---|---|
| Lead-Time | 15Weeks | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | 2129 |
