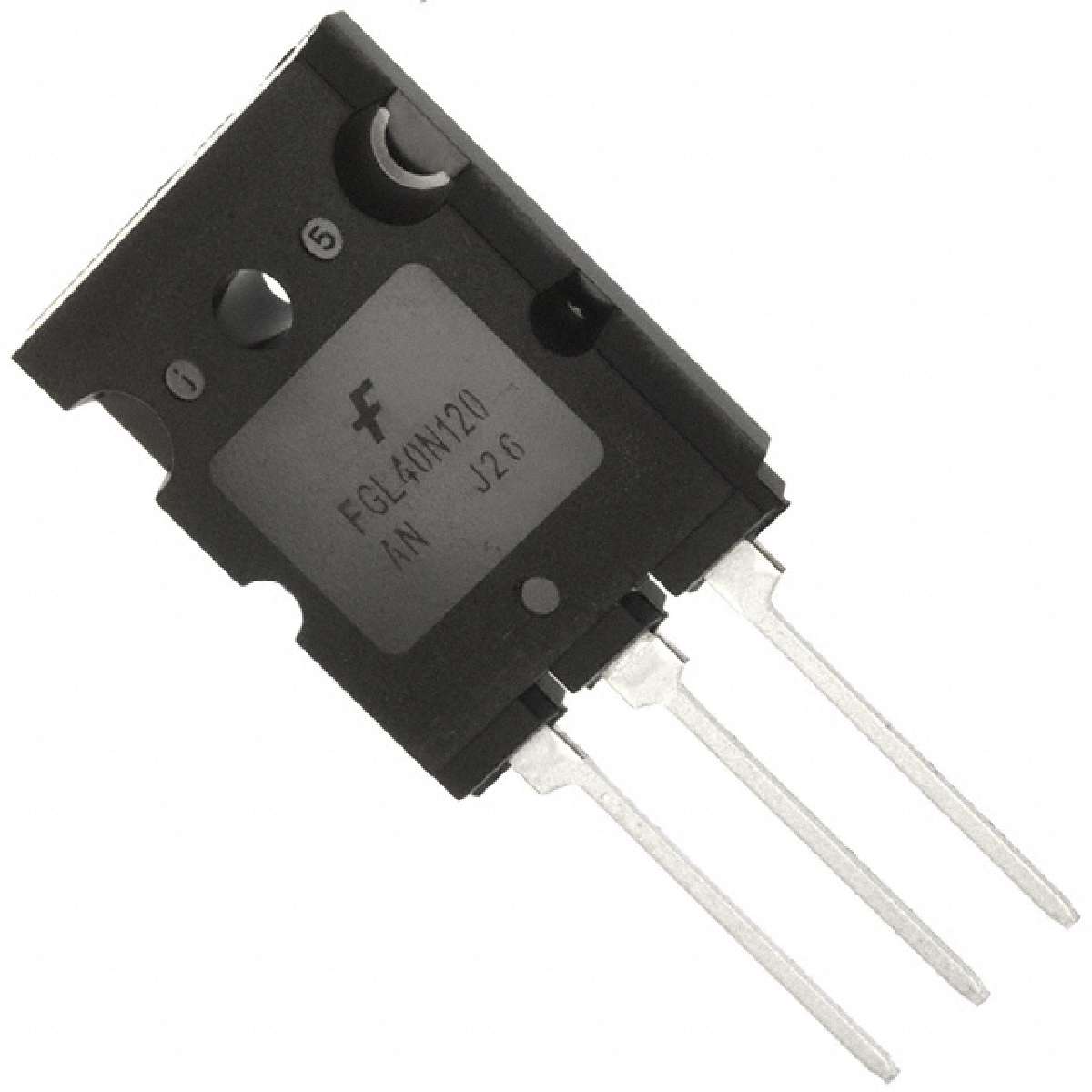

| FGL40N120ANTU | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
1200V, 40A, IGBT, NPT
|
||
| 标准包装：375 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Power - Max | 500W |
|---|---|
| Current - Collector Pulsed (Icm) | 160A |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 15ns/110ns |
| Part Status | Not For New Designs |
| Manufacturer | Fairchild Semiconductor |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Mounting Type | Through Hole |
| Switching Energy | 2.3mJ (on), 1.1mJ (off) |
| Packaging | Bulk |
| Package / Case | TO-264-3, TO-264AA |
| Test Condition | 600V, 40A, 5 Ohm, 15V |
| Supplier Device Package | TO-264 |
| Current - Collector (Ic) (Max) | 64A |
| Category | Discrete Semiconductor Products |
| Gate Charge | 220nC |
| Family | Transistors - IGBTs - Single |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 40A |
| Input Type | Standard |
| ECCN | EAR99 |
