| FFPF08S60STU | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

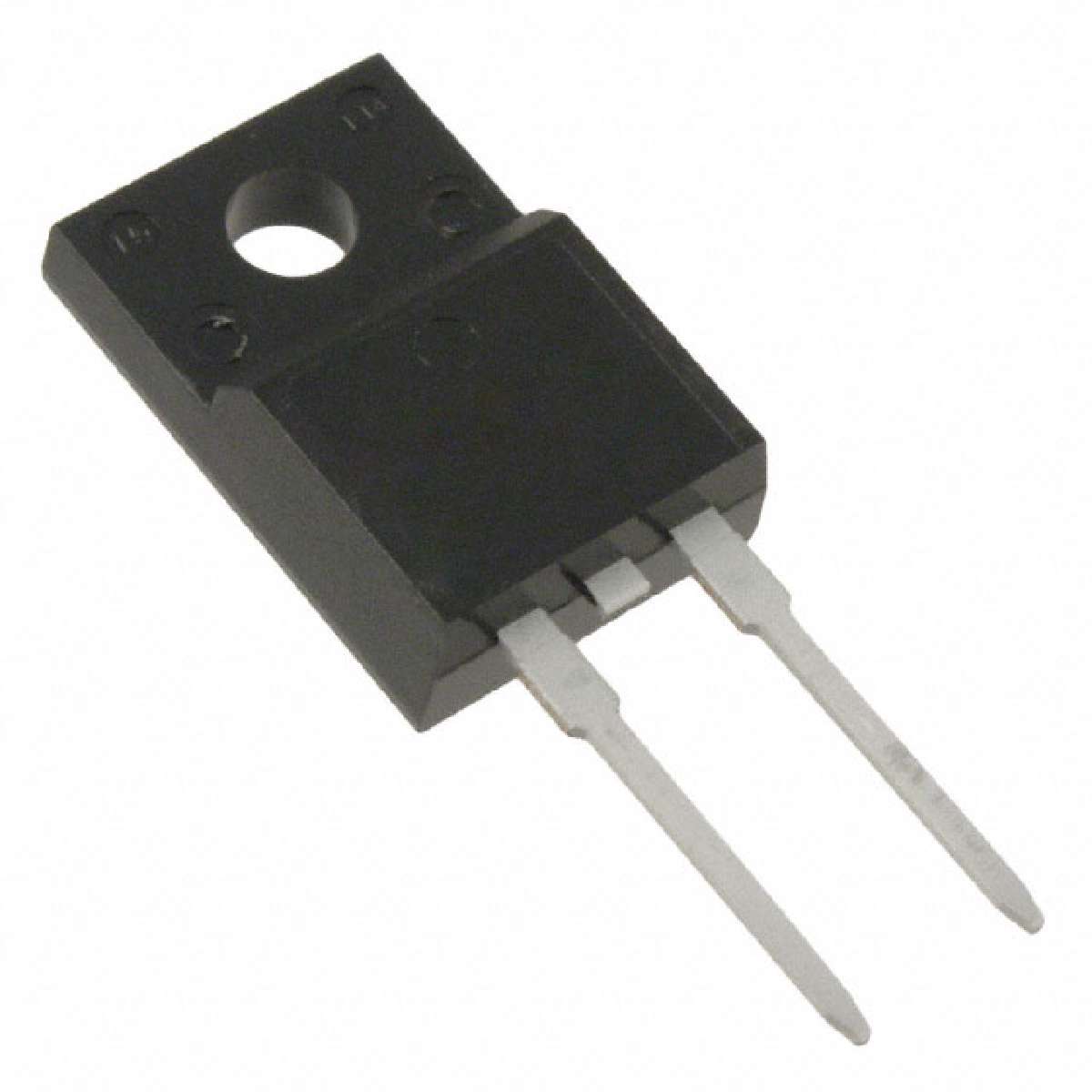

FFPF08S60S 600 V 8 A 30 ns Flange Mount Stealth II Rectifier - TO-220F-2L
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Current - Average Rectified (Io) | 8A |
|---|---|
| Package / Case | TO-220-2 Full Pack |
| Part Status | Active |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Manufacturer | Fairchild Semiconductor |
| Current - Reverse Leakage @ Vr | 100µA @ 600V |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 600V |
| Packaging | Tube |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Supplier Device Package | TO-220F-2L |
| Diode Type | Standard |
| Category | Discrete Semiconductor Products |
| Reverse Recovery Time (trr) | 30ns |
| Series | STEALTH™ II |
| Mounting Type | Through Hole |
| Voltage - Forward (Vf) (Max) @ If | 2.6V @ 8A |
| ECCN | EAR99 |
