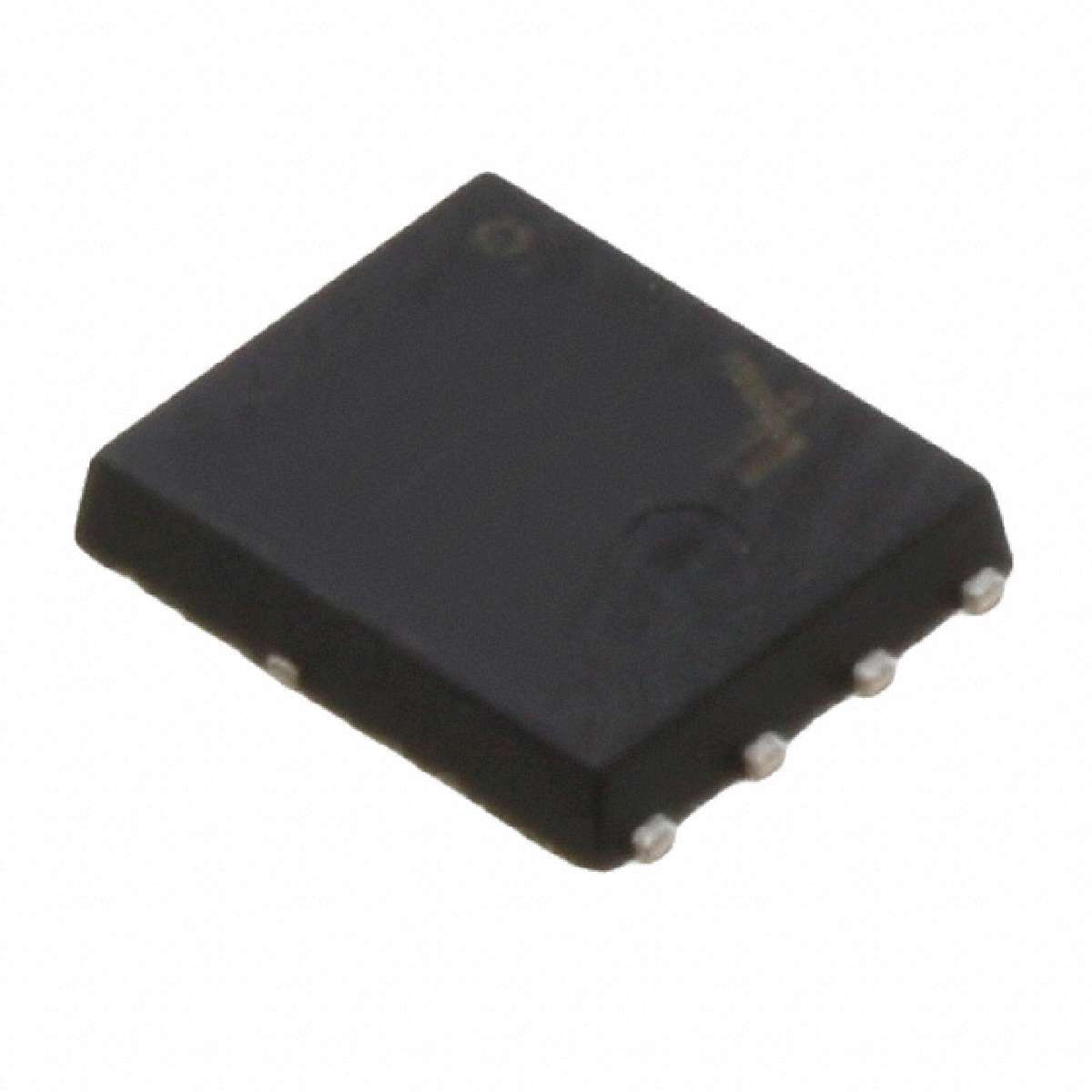

| FDMS8320L | ||
|---|---|---|
|
|
||
|
||
| Product description : Single N-Channel 40 V 1.7 mOhm 117 nC 104 W PowerTrench SMT Mosfet - POWER 56-8 | ||
| SPQ：1 | ||
| Datasheet : |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Package / Case | 8-PowerTDFN |
|---|---|
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Ta), 100A (Tc) |
| Part Status | Active |
| Manufacturer | Fairchild Semiconductor |
| Series | PowerTrench® |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Packaging | Cut Tape (CT) |
| Rds On (Max) @ Id, Vgs | 1.1 mOhm @ 32A, 10V |
| Power - Max | 2.5W |
| Supplier Device Package | 8-PQFN (5x6), Power56 |
| Gate Charge (Qg) @ Vgs | 170nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Family | Transistors - FETs, MOSFETs - Single |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 11110pF @ 20V |
| ECCN | EAR99 |
| Datasheet： |
|---|
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 6000 | Update On 2025-05-20 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$2.68131
￥22.27001999587476
| 2+ | $2.68131 |
|---|---|
| 750+ | $2.60069 |
| 1500+ | $2.52354 |
| stock | 2982 | Update On 2025-05-21 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/2 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$2.60069
￥21.600419994257017
| 750+ | $2.60069 |
|---|---|
| 1500+ | $2.52354 |
| stock | 2982 | Update On 2025-05-21 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/750 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1034
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$2.30017
￥19.104400002426612
| 3000+ | $2.30017 |
|---|---|
| 15000+ | $2.20815 |
| stock | 2982 | Update On 2025-05-21 |
|---|---|---|
| Lead-Time | -- | |
| Supplier SPQ/MOQ | 1/3000 | |
| Location | -- | |
| DateCode | -- |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$4.18035
￥34.72051
| stock | 1 | Update On 2022-12-02 |
|---|---|---|
| Lead-Time | 24Weeks | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | 2141 |
