| FDMC89521L | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

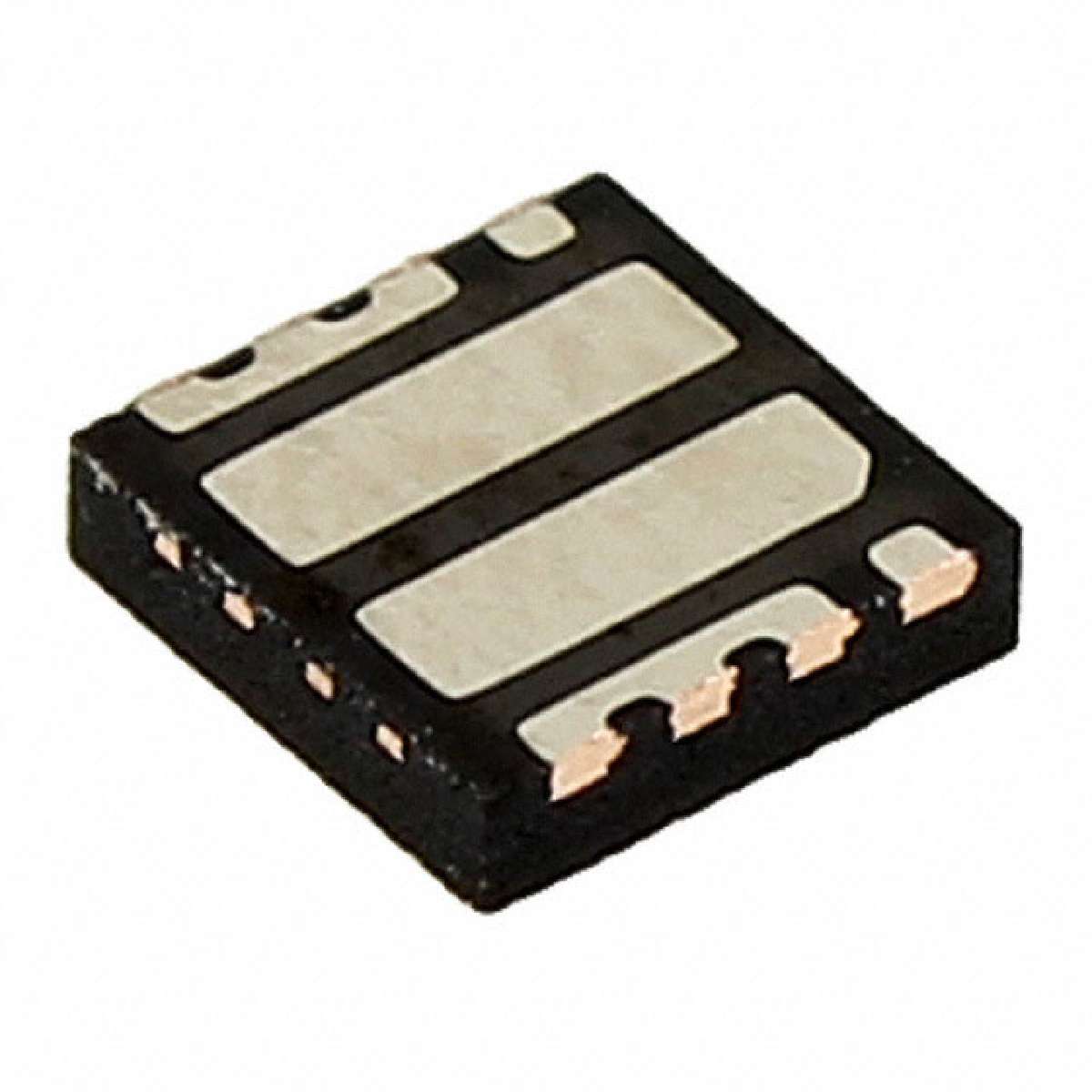

Dual N-Channel 60 V 8.2 A 17 mOhm Surface Mount PowerTrench Mosfet -Power 33
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 8-PowerWDFN |
|---|---|
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 8.2A |
| Part Status | Active |
| Manufacturer | Fairchild Semiconductor |
| Series | PowerTrench® |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Packaging | Digi-Reel® |
| Rds On (Max) @ Id, Vgs | 17 mOhm @ 8.2A, 10V |
| Power - Max | 800mW |
| Supplier Device Package | 8-MLP (3x3), Power33 |
| Gate Charge (Qg) @ Vgs | 24nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | 2 N-Channel (Dual) Asymmetrical |
| Family | Transistors - FETs, MOSFETs - Arrays |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 1635pF @ 30V |
| ECCN | EAR99 |
