FDMC86520L specifications -Ameya360 electronic components purchase network


FDMC86520L

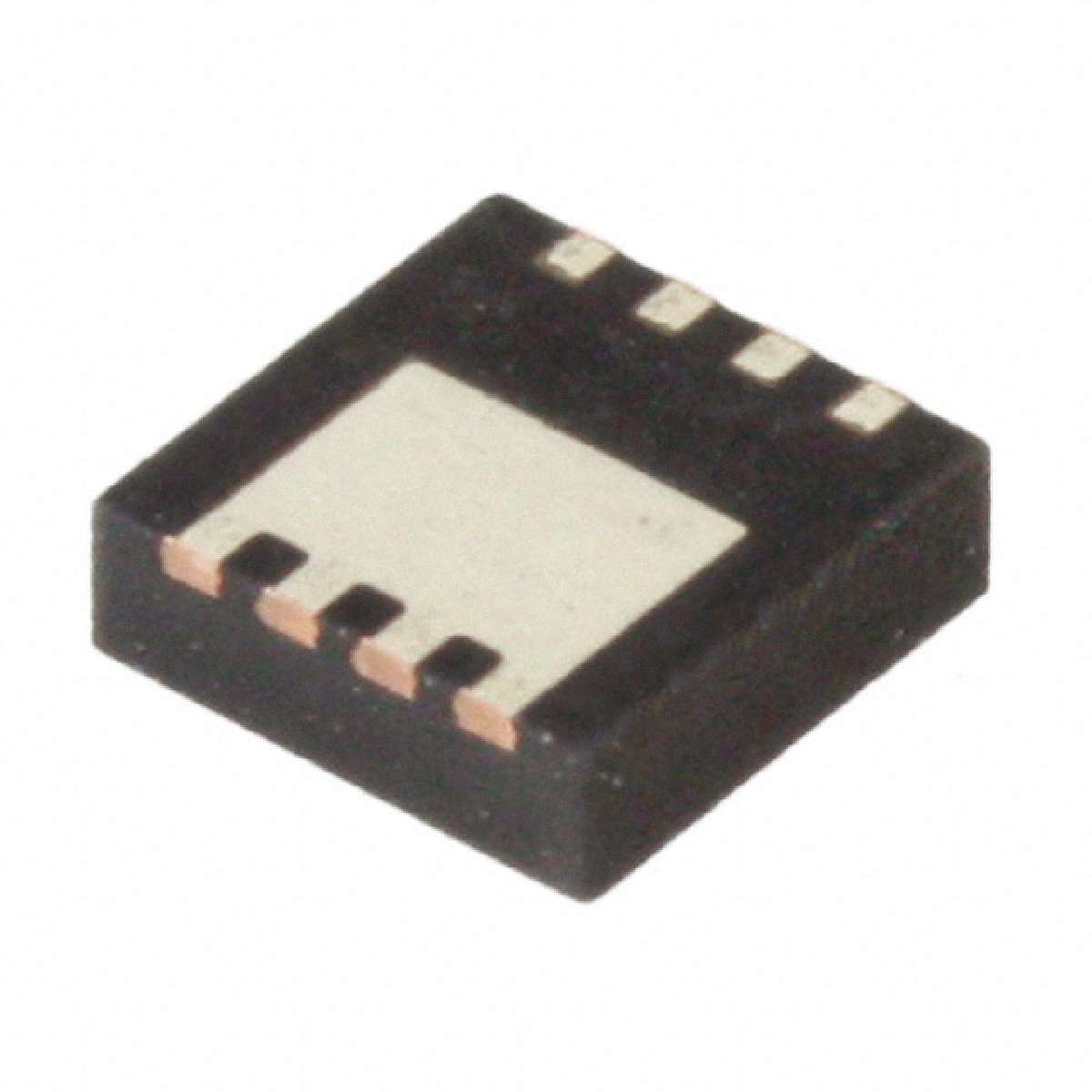

ACTIVE 8-MLP (3.3x3.3), Power33 EAR99
Product description : FDMC86520L Series 60 V 13.5 A 7.9 mOhm N.Ch. PowerTrench Mosfet - MLP-8
SPQ：3000
Datasheet : FDMC86520L.pdf

Package / Case	8-PowerWDFN
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	13.5A (Ta), 22A (Tc)
Part Status	Active
Manufacturer	Fairchild Semiconductor
Series	PowerTrench®
Vgs(th) (Max) @ Id	3V @ 250µA
Operating Temperature	-55°C ~ 150°C (TJ)
Packaging	Cut Tape (CT)
Rds On (Max) @ Id, Vgs	7.9 mOhm @ 13.5A, 10V
Power - Max	2.3W
Supplier Device Package	8-MLP (3.3x3.3), Power33
Gate Charge (Qg) @ Vgs	64nC @ 10V
Category	Discrete Semiconductor Products
FET Type	MOSFET N-Channel, Metal Oxide
Family	Transistors - FETs, MOSFETs - Single
Mounting Type	Surface Mount
Input Capacitance (Ciss) @ Vds	4550pF @ 30V
ECCN	EAR99

Datasheet： FDMC86520L.pdf
