| FDMC86520DC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

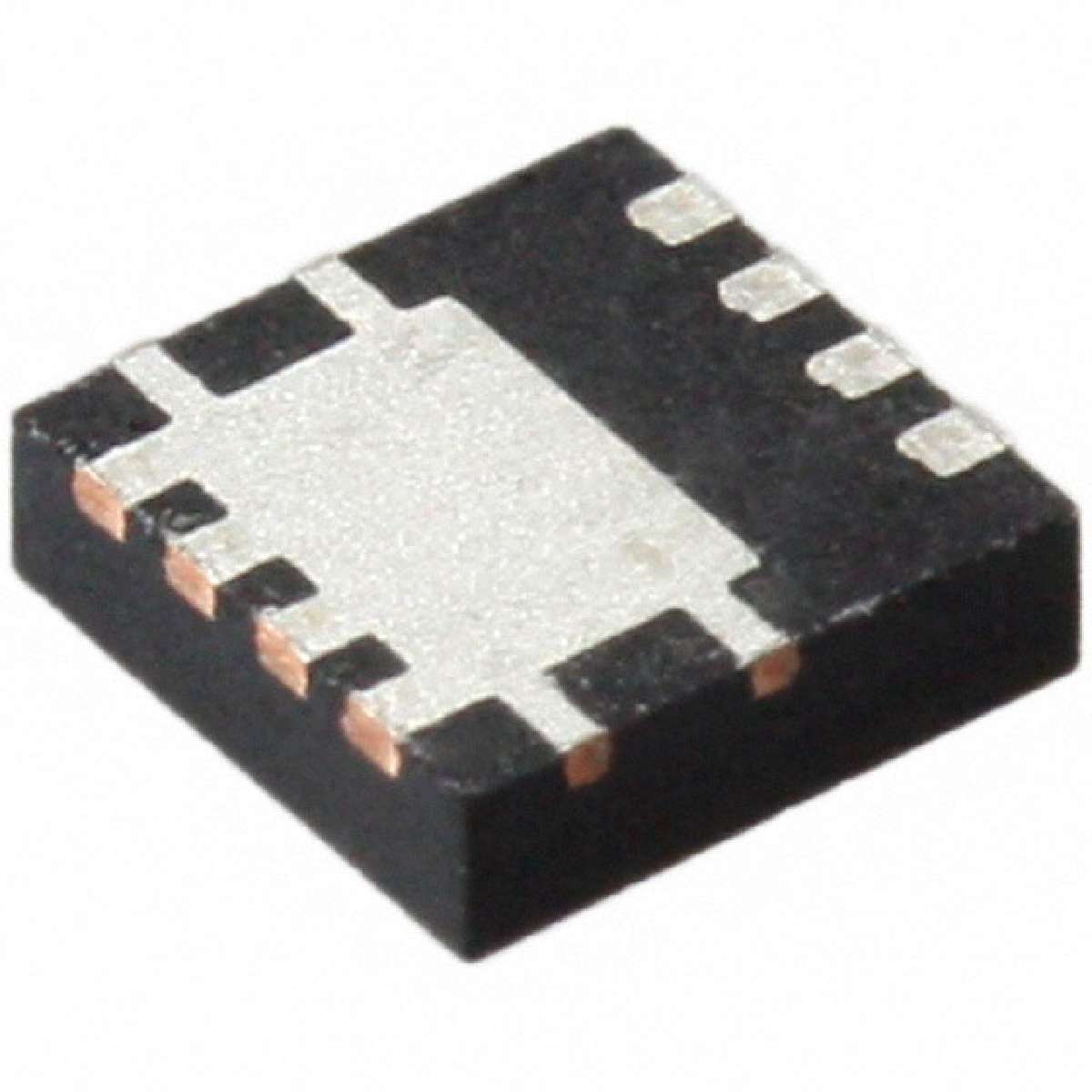

MOSFET N CH 60V 17A POWER33
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 8-PowerTDFN |
|---|---|
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Ta), 40A (Tc) |
| Part Status | Active |
| Manufacturer | Fairchild Semiconductor |
| Series | Dual Cool™, PowerTrench® |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Packaging | Cut Tape (CT) |
| Rds On (Max) @ Id, Vgs | 6.3 mOhm @ 17A, 10V |
| Power - Max | 3W |
| Supplier Device Package | 8-PQFN (3.3x3.3), Dual Cool 33 |
| Gate Charge (Qg) @ Vgs | 40nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Family | Transistors - FETs, MOSFETs - Single |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 2790pF @ 30V |
