| FDB016N04AL7 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

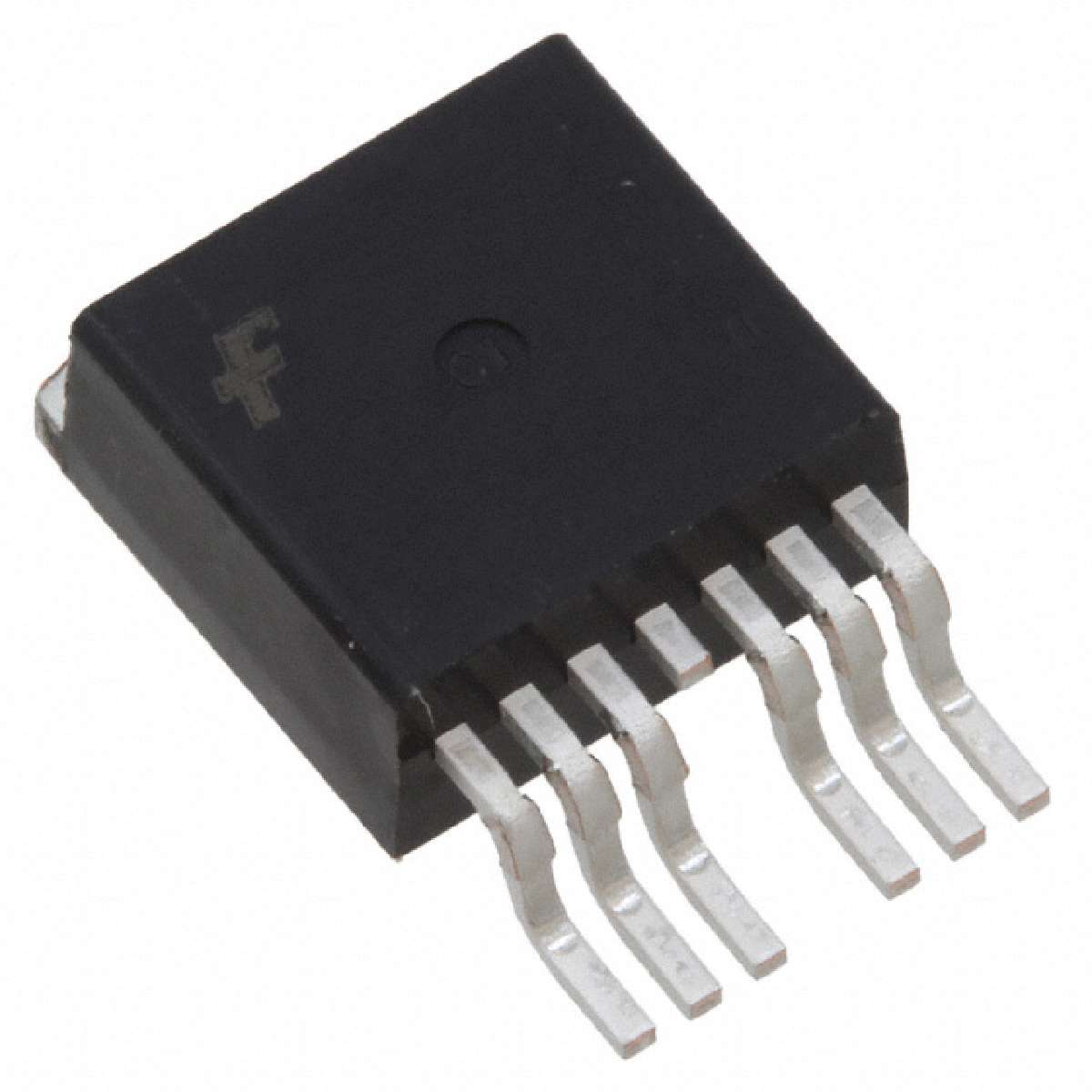

MOSFET N-CH 40V 160A D2PAK-7
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | TO-263-7, D²Pak (6 Leads + Tab) |
|---|---|
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 160A (Tc) |
| Part Status | Active |
| Manufacturer | Fairchild Semiconductor |
| Series | PowerTrench® |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Packaging | Tape & Reel (TR) |
| Rds On (Max) @ Id, Vgs | 1.6 mOhm @ 80A, 10V |
| Power - Max | 283W |
| Supplier Device Package | D²PAK (TO-263) |
| Gate Charge (Qg) @ Vgs | 167nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Family | Transistors - FETs, MOSFETs - Single |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 11600pF @ 25V |
