| FCE17B25SA410 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

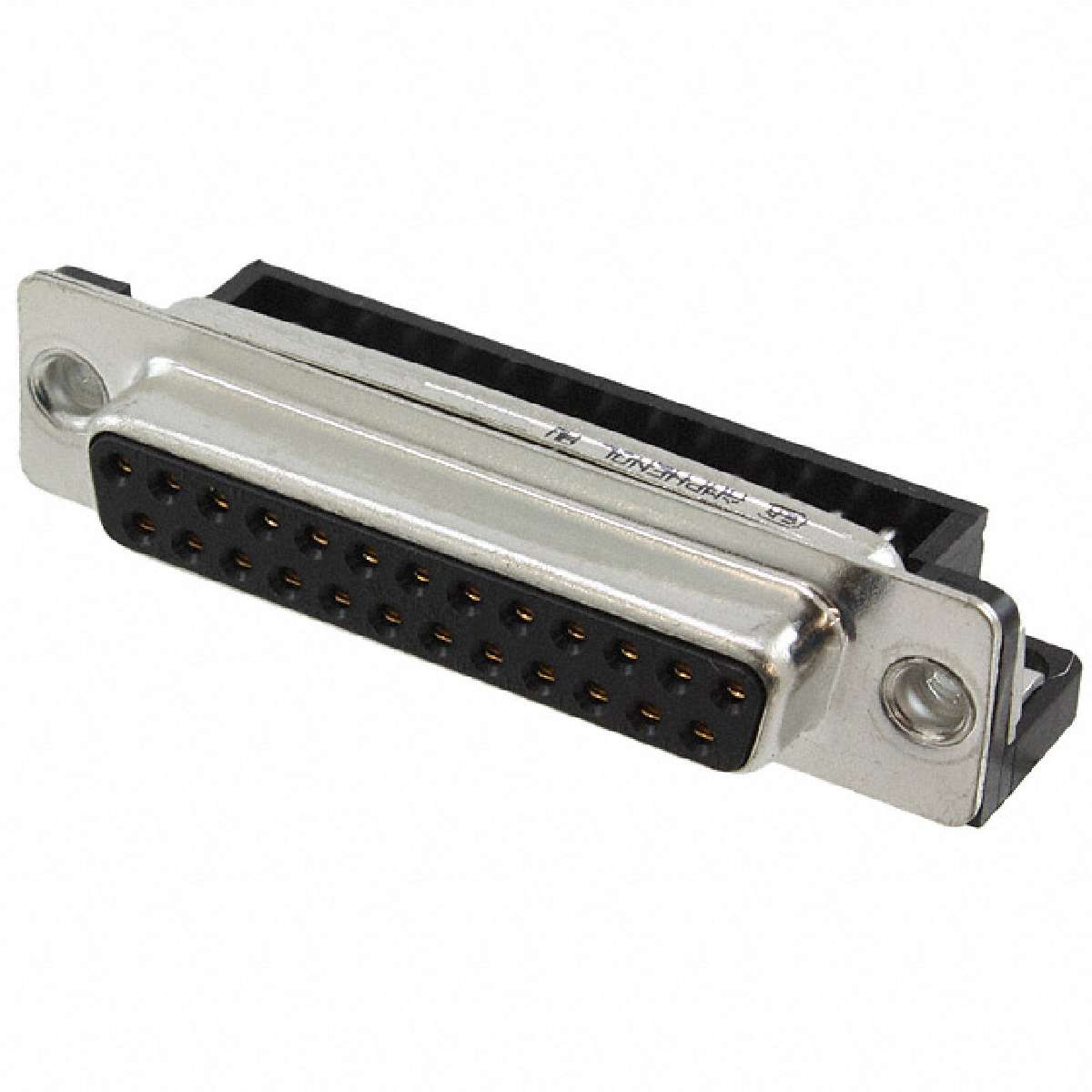

25 Position 2.76mm Solder RA Through Hole Port Filtered D-Sub
|
||
| 标准包装：60 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Connector Style | D-Sub |
|---|---|
| Shell Material, Finish | Steel, Tin Plated |
| Shell Size, Connector Layout | 3 (DB, B) |
| Color | Black |
| Part Status | Active |
| Manufacturer | Amphenol Commercial Products |
| Housing Material | Thermoplastic, Glass Filled |
| Number of Positions | 25 |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Packaging | Bulk |
| Current Rating | 5A |
| Termination | Solder |
| Contact Finish | Gold |
| Contact Type | Signal |
| Features | Board Lock, Filter |
| Flange Feature | Housing/Shell (4-40) |
| Category | Connectors, Interconnects |
| Series | FCE17 |
| Family | D-Sub Connectors |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish Thickness | 15µin (0.38µm) |
| Number of Rows | 2 |
| ECCN | EAR99 |
