| F316R-24.000 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

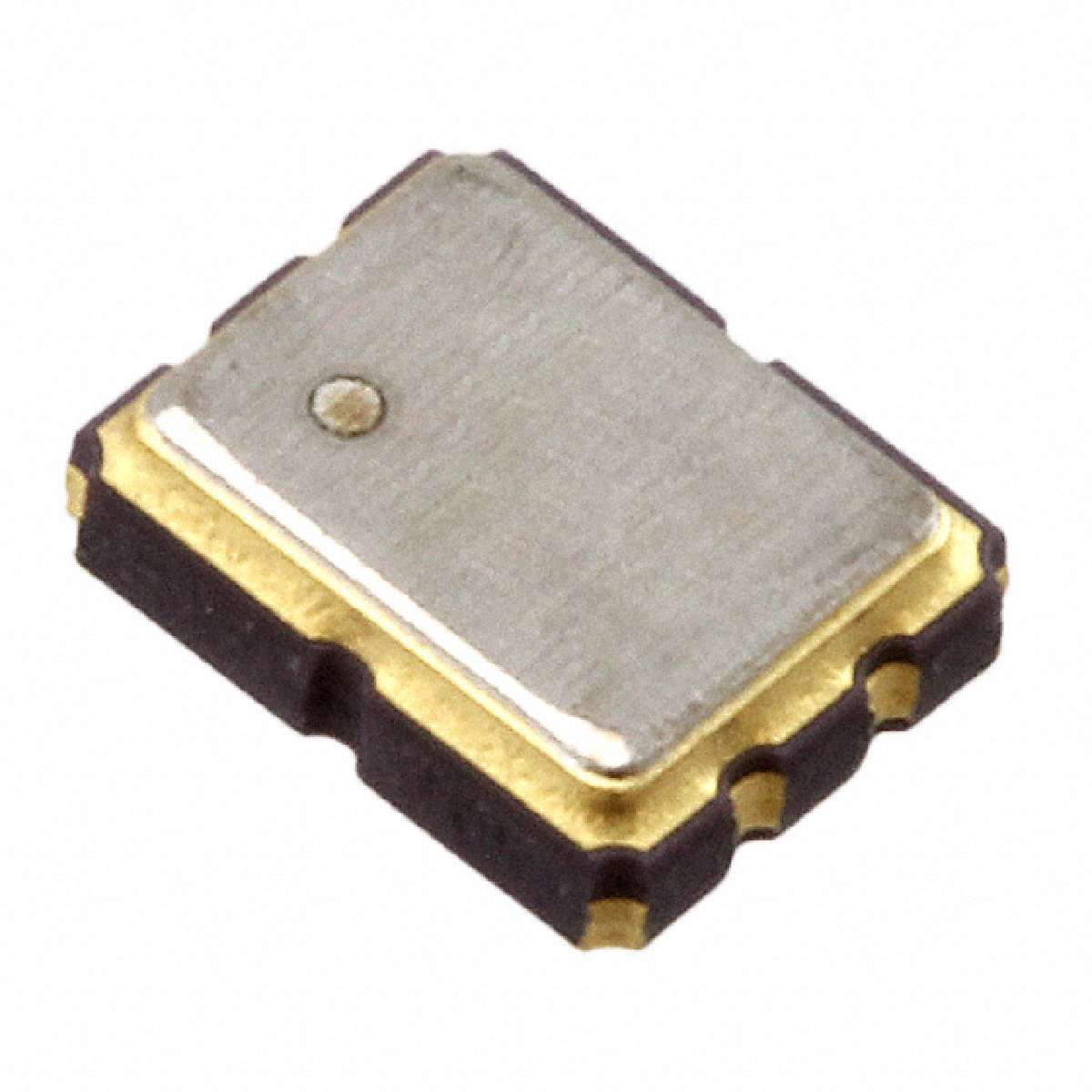

24.000MHZ HCMOS SMD Oscillator
|
||
| 标准包装：2000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Frequency Stability | ±25ppm |
|---|---|
| Package / Case | 4-SMD, No Lead (DFN, LCC) |
| Function | Enable/Disable |
| Output | HCMOS |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Category | Crystals, Oscillators, Resonators |
| Series | F310R |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Cut Tape (CT) |
| Voltage - Supply | 1.8V |
| Type | XO (Standard) |
| Height | 0.047" (1.20mm) |
| Current - Supply (Max) | 7mA |
| Part Status | Active |
| Manufacturer | Fox Electronics |
| Family | Oscillators |
| Frequency | 24MHz |
| Current - Supply (Disable) (Max) | 10µA |
| ECCN | EAR99 |
