F-359XP
F-359XP
  • ACTIVE
  • EAR99

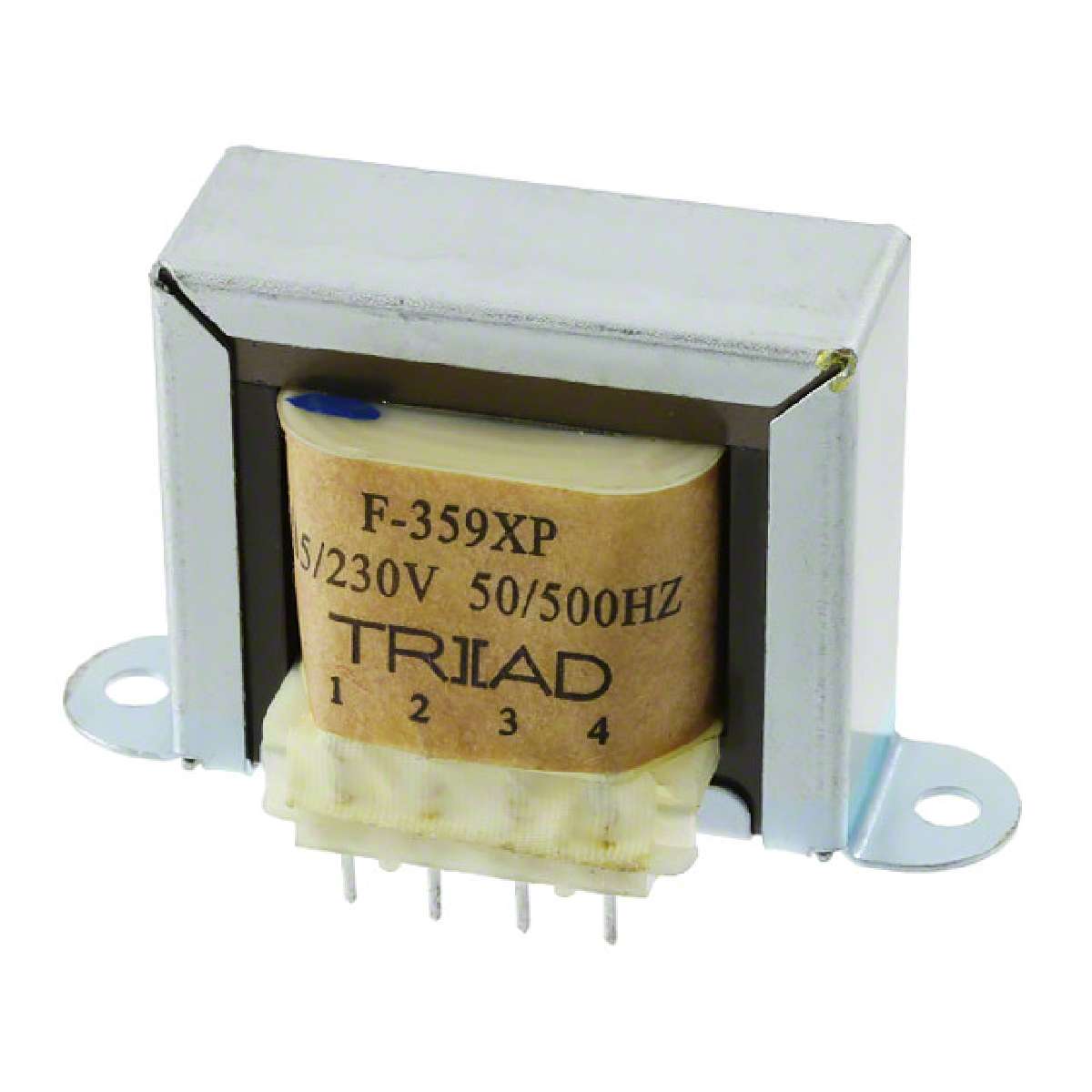

Product description : POWER TRANSFORMER 24.0Vct@0.450A 115V/230 PCB MOUNT/
SPQ:20
Datasheet :
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Voltage - Isolation 1500Vrms
Voltage - Secondary (Full Load) Parallel 12V, Series 24V
Type Laminated Core
Center Tap No
Size / Dimension 71.42mm L x 36.50mm W
Voltage - Primary 115V, 230V
Manufacturer Triad Magnetics
Secondary Winding(s) Dual
Mounting Type User Defined
Primary Winding(s) Dual
Power - Max 10 VA
Current - Output (Max) Parallel 900mA, Series 450mA
Termination Style PC Pin
Part Status Active
Category Transformers
Height - Seated (Max) 41.28mm
Family Power Transformers
ECCN EAR99
