| ESMQ451VSN101MP25S | ||
|---|---|---|
|
|
||
|
||

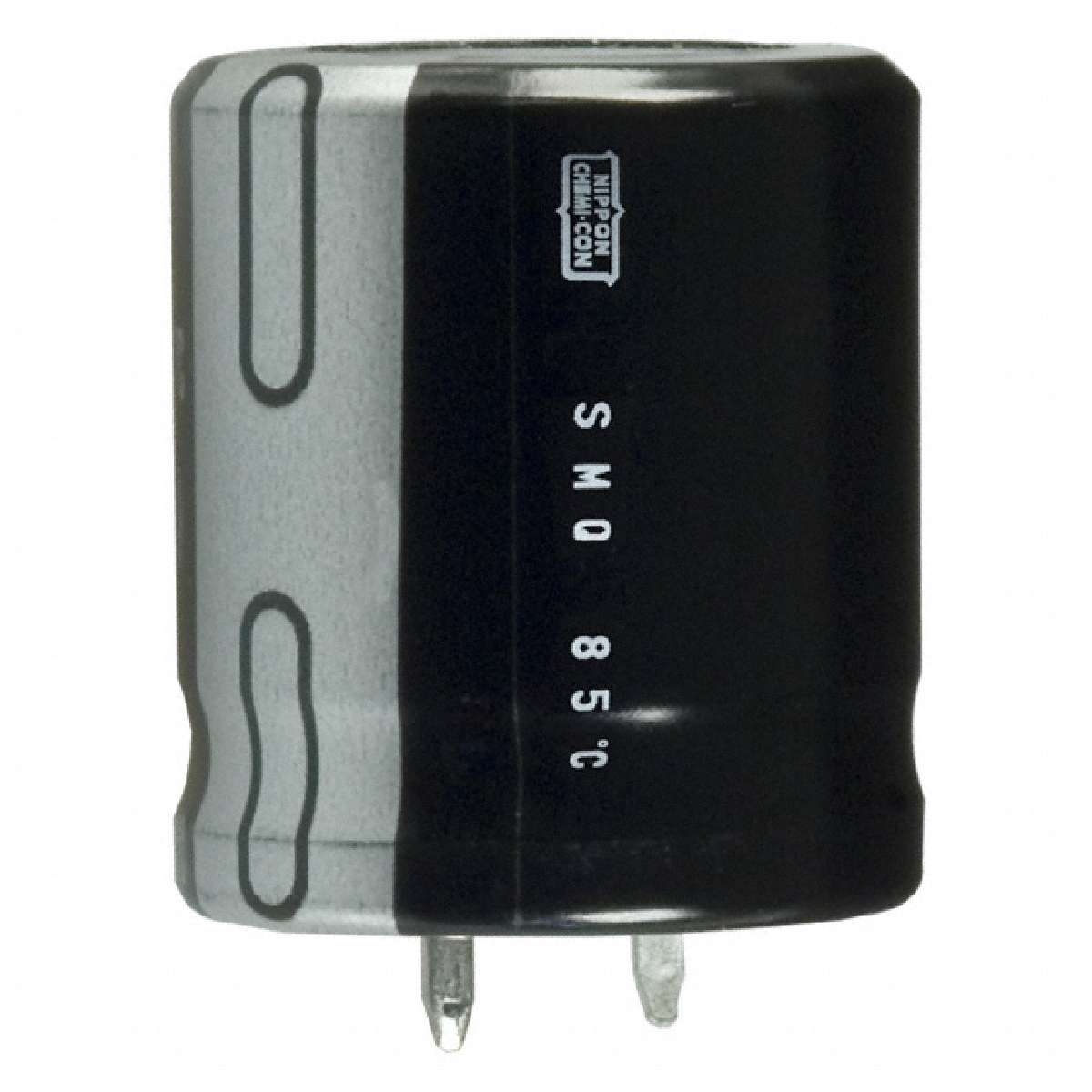

| Product description : SMQ Series 100 uF 450 V 105°C Ø22x25mm Snap-In Aluminum Electrolytic Capacitor | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 450V |
|---|---|
| Package / Case | Radial, Can - Snap-In |
| Capacitance | 100µF |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Ripple Current | 930mA @ 120Hz |
| Manufacturer | United Chemi-Con |
| Series | SMQ |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Packaging | Bulk |
| Tolerance | ±20% |
| Lead Spacing | 0.394" (10.00mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| ECCN | EAR99 |
