| ESMG350ELL101MF11D | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

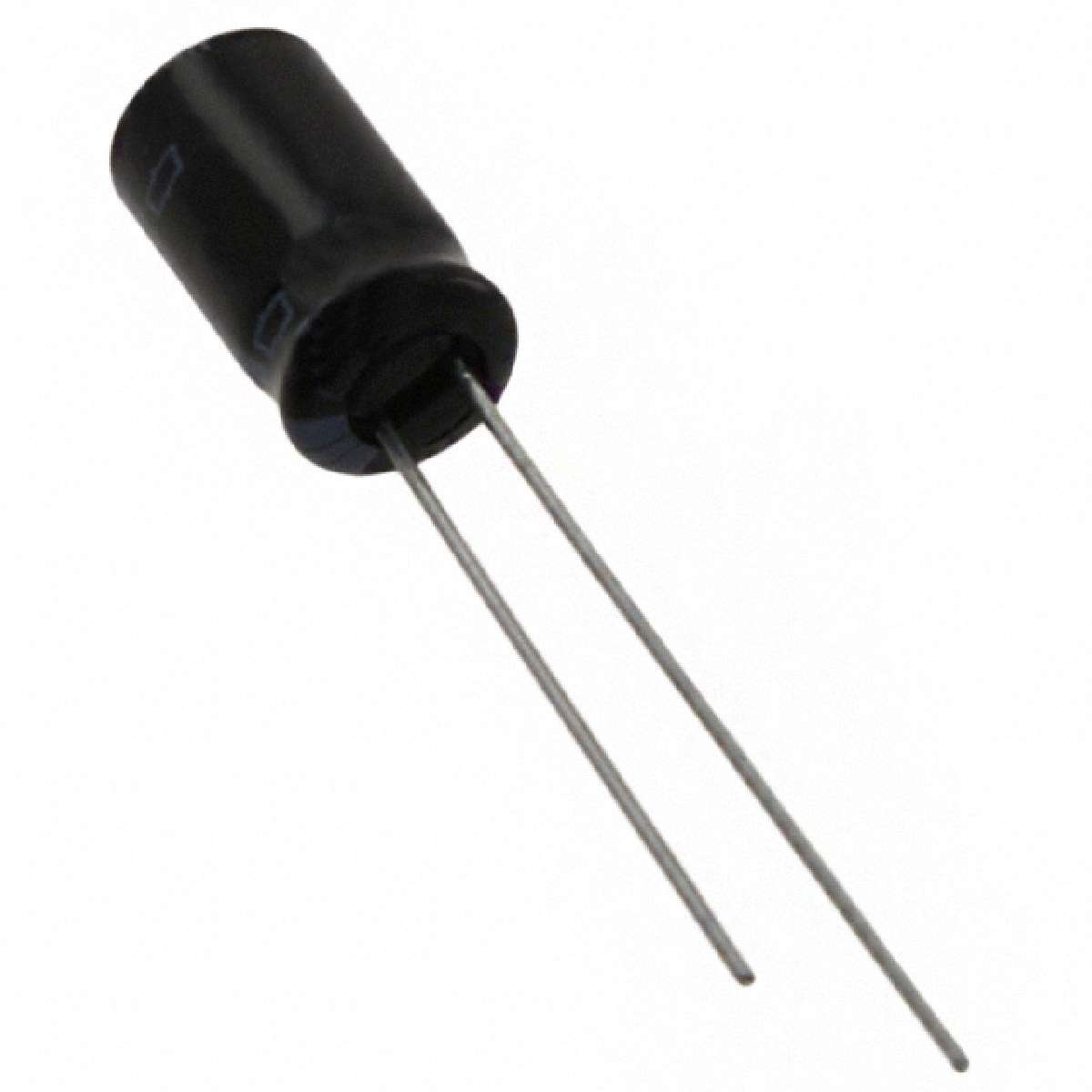

SMG Series 100 uF 35 V ±20 % Through Hole Radial Aluminum Electrolytic Capacitor
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 35V |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 100µF |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Ripple Current | 210mA @ 120Hz |
| Manufacturer | United Chemi-Con |
| Series | SMG |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Packaging | Bulk |
| Tolerance | ±20% |
| Lead Spacing | 0.098" (2.50mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
