| EMVE101ARA101MKE0S | ||
|---|---|---|
|
|
||
|
||

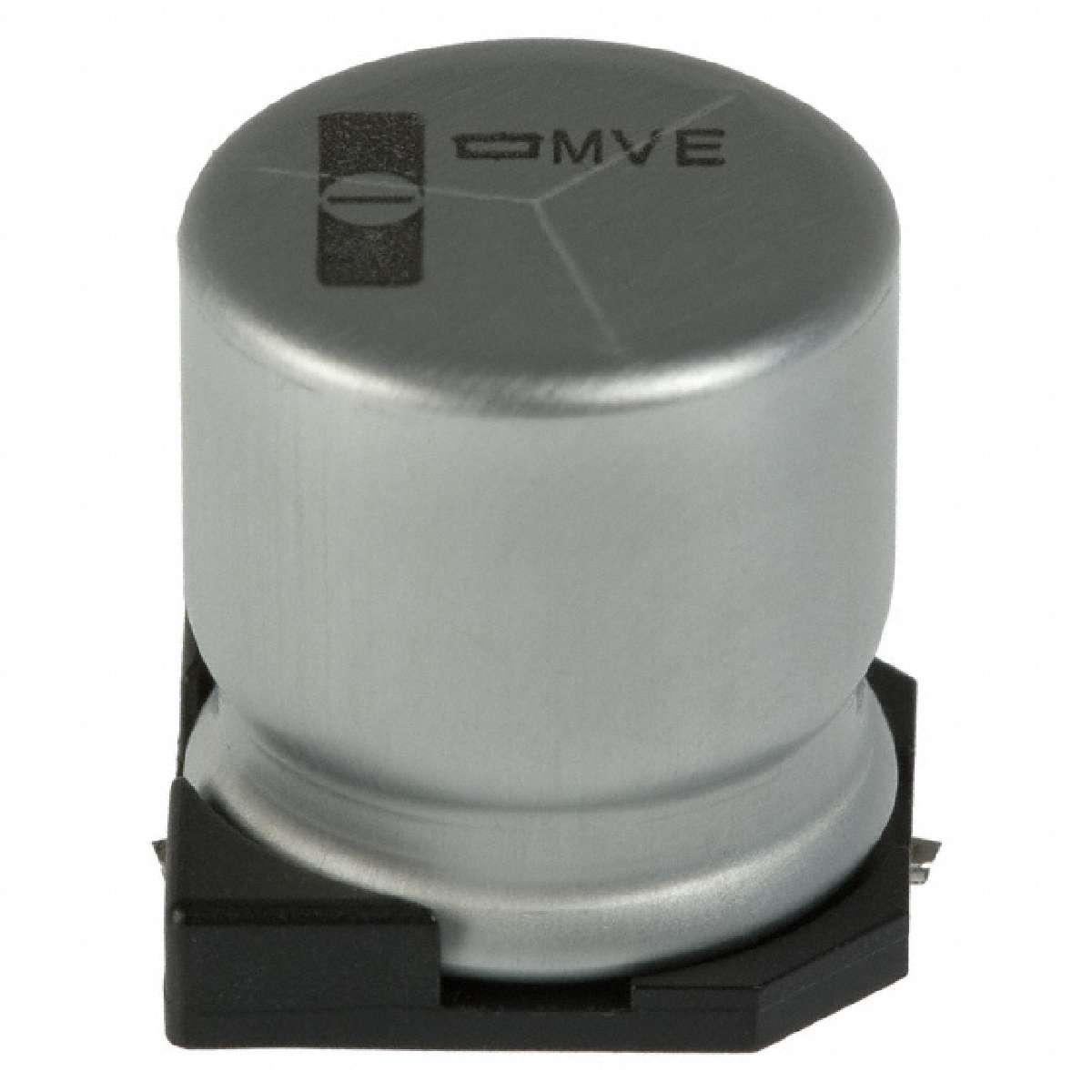

| Product description : MVE Series 100 uF 100 V ±20 % Surface Mount Can Aluminum Electrolytic Capacitor | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 100V |
|---|---|
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Series | Alchip™- MVE |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Packaging | Tape & Reel (TR) |
| Tolerance | ±20% |
| Capacitance | 100µF |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Ripple Current | 380mA |
| Manufacturer | United Chemi-Con |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| ECCN | EAR99 |
