| EMC10DRXH | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

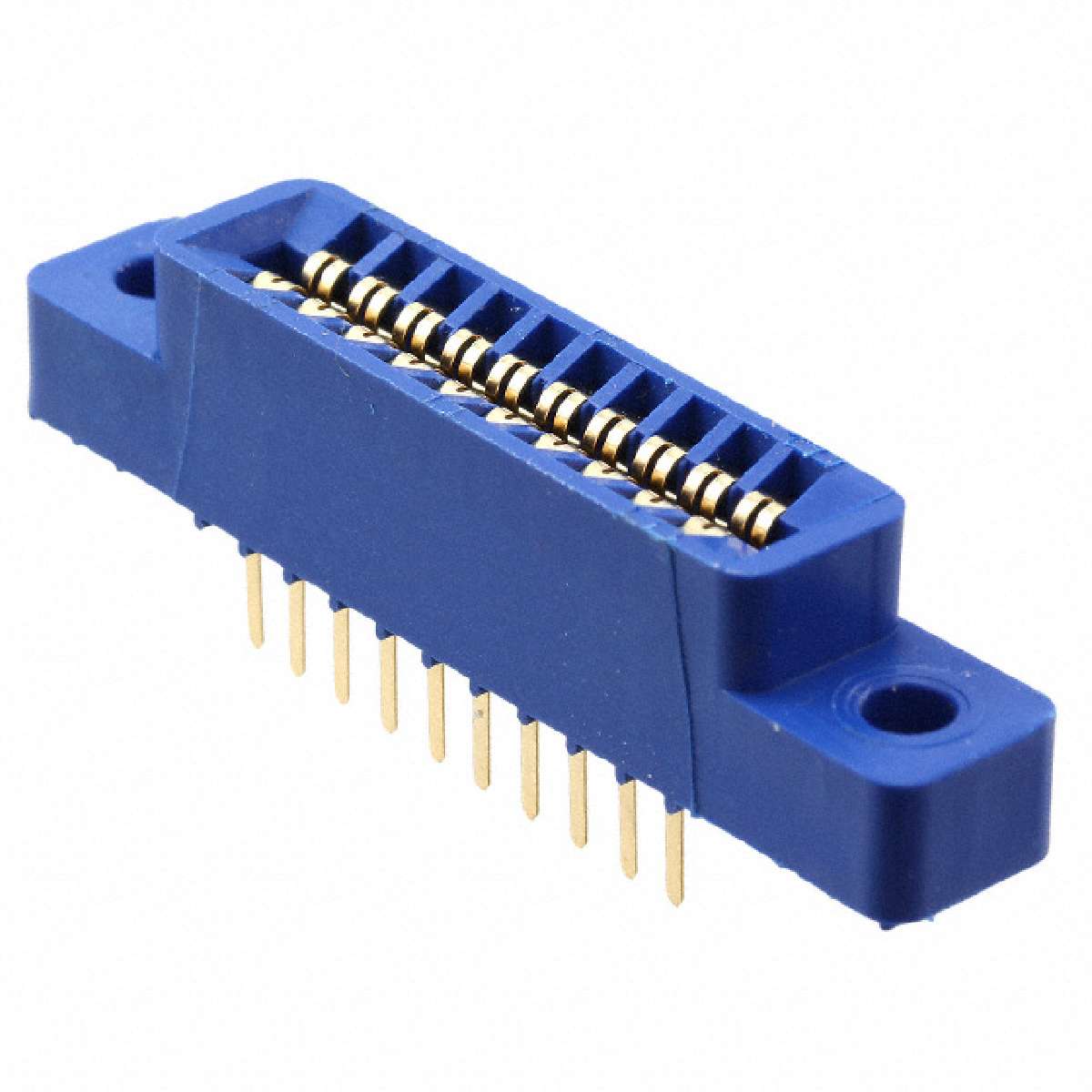

20 Position Dual In Line Package (2x10) 2.54mm Pitch Card Edge Connector
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Solder |
|---|---|
| Card Thickness | 0.062" (1.57mm) |
| Contact Type | Full Bellows |
| Part Status | Active |
| Manufacturer | Sullins Connector Solutions |
| Contact Material | Phosphor Bronze |
| Read Out | Dual |
| Family | Card Edge Connectors - Edgeboard Connectors |
| Operating Temperature | -65°C ~ 125°C |
| Contact Finish Thickness | 30µin (0.76µm) |
| Pitch | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Contact Finish | Gold |
| Color | Blue |
| Flange Feature | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Category | Connectors, Interconnects |
| Gender | Female |
| Number of Positions | 20 |
| Mounting Type | Through Hole |
| Card Type | Non Specified - Dual Edge |
| Number of Positions/Bay/Row | 10 |
| Packaging | Tube |
| ECCN | EAR99 |
