| ELXZ350ELL471MJ20S | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

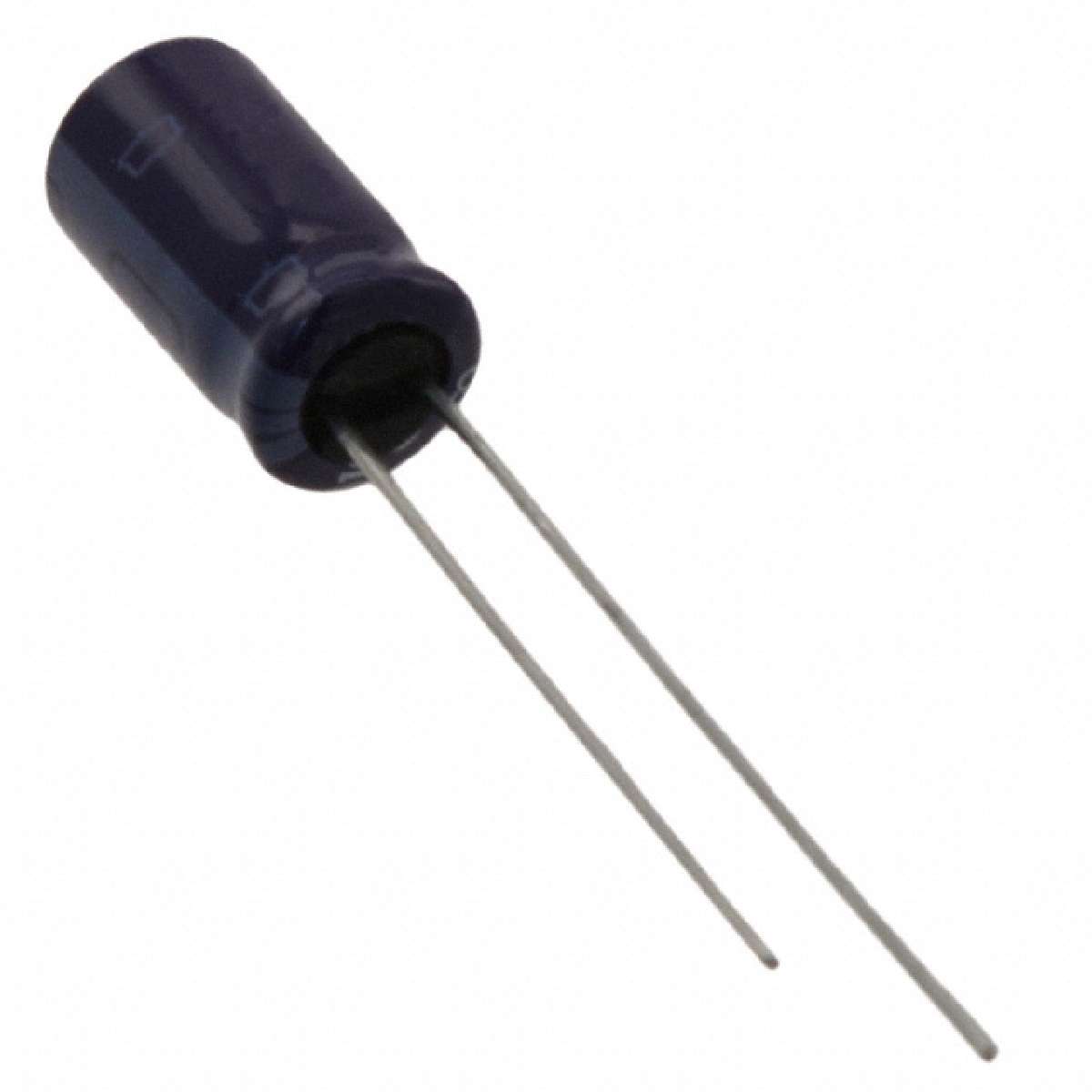

LXZ Series 35 V 470 uF 10 x 20 mm LS =5 mm ±20 % Radial Electrolytic Capacitor
|
||
| 标准包装：2000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 35V |
|---|---|
| Impedance | 52 mOhm |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Ripple Current | 1.22A |
| Manufacturer | United Chemi-Con |
| Series | LXZ |
| Applications | General Purpose |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Packaging | Bulk |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 470µF |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| ECCN | EAR99 |
