| EKY-100ELL102MJ16S | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

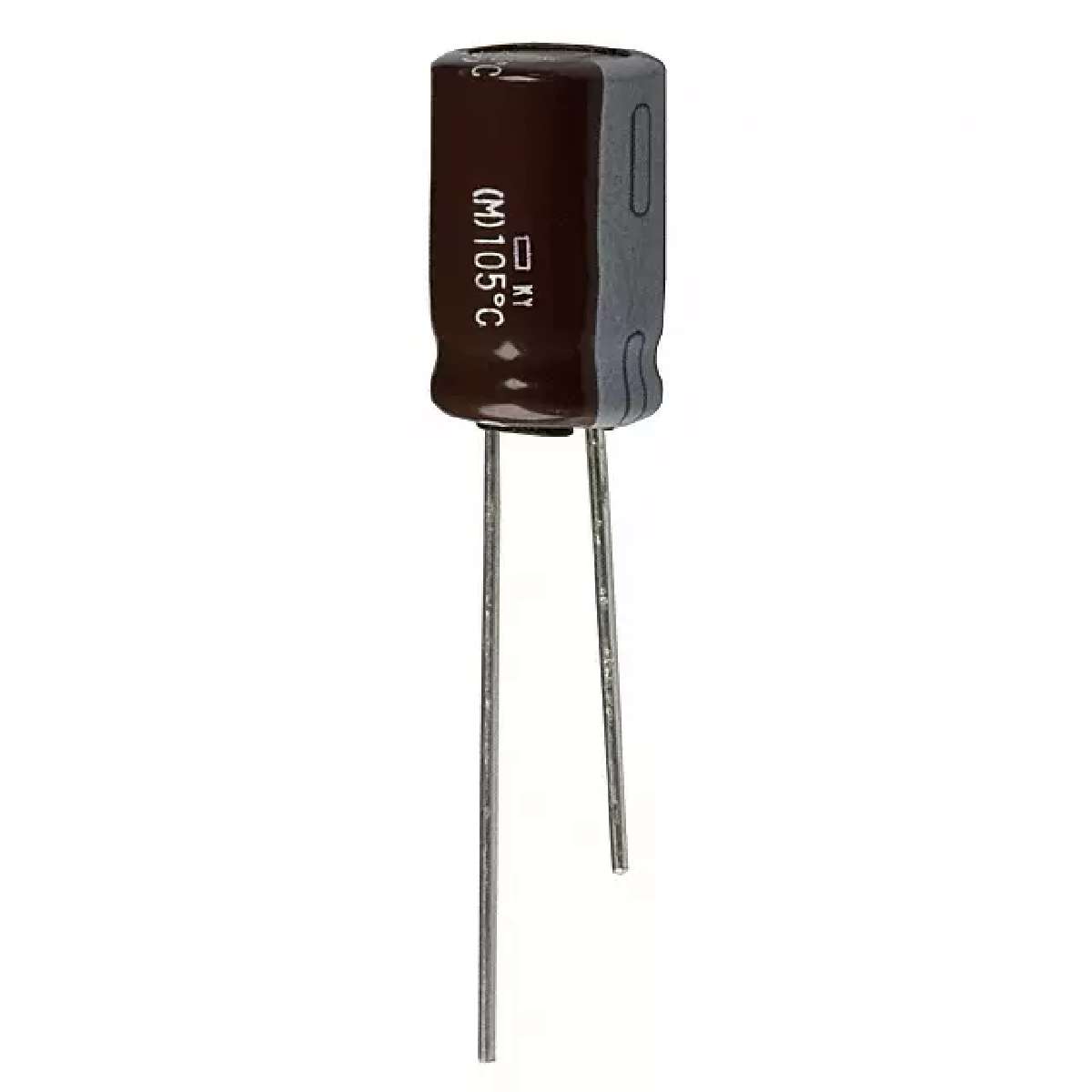

KY Series 10 V 1000 uF Ø10 x 16mm LS=5 mm 6 kHrs 105°C Aluminum Electrolytic Cap
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 10V |
|---|---|
| Impedance | 60 mOhm |
| Lead Spacing | 0.197" (5.00mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 1000µF |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Ripple Current | 726mA @ 120Hz |
| Manufacturer | United Chemi-Con |
| Series | KY |
| Applications | General Purpose |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Packaging | Bulk |
登录之后就可发表评论
库存信息4到货提醒
供应商编码:SP1027
线下原厂及原厂授权代理商库存，接单后需要再次确认价格和数量
$0.14958
￥1.24236
| 库存数量 | 4000 | 库存更新于 2024-12-23 |
|---|---|---|
| 订货周期 | 0Weeks | |
| Supplier SPQ/MOQ | 1/4000 | |
| 库存地 | -- | |
| 生产批次 | 2336 |
供应商编码:SP1028
线下原厂及原厂授权代理商库存，接单后需要再次确认价格和数量
$1.4105
￥11.715118525097646
查看价格阶梯
| 1+ | $1.4105 |
|---|---|
| 10+ | $0.8463 |
| 50+ | $0.67735 |
| 100+ | $0.5363 |
| 500+ | $0.465 |
| 1000+ | $0.434 |
| 2000+ | $0.4061 |
| 4000+ | $0.39835 |
| 库存数量 | 2 | 库存更新于 2024-12-23 |
|---|---|---|
| 订货周期 | -- | |
| Supplier SPQ/MOQ | 1/1 | |
| 库存地 | -- | |
| 生产批次 | -- |
