| EKXG201ELL331MMP1S | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

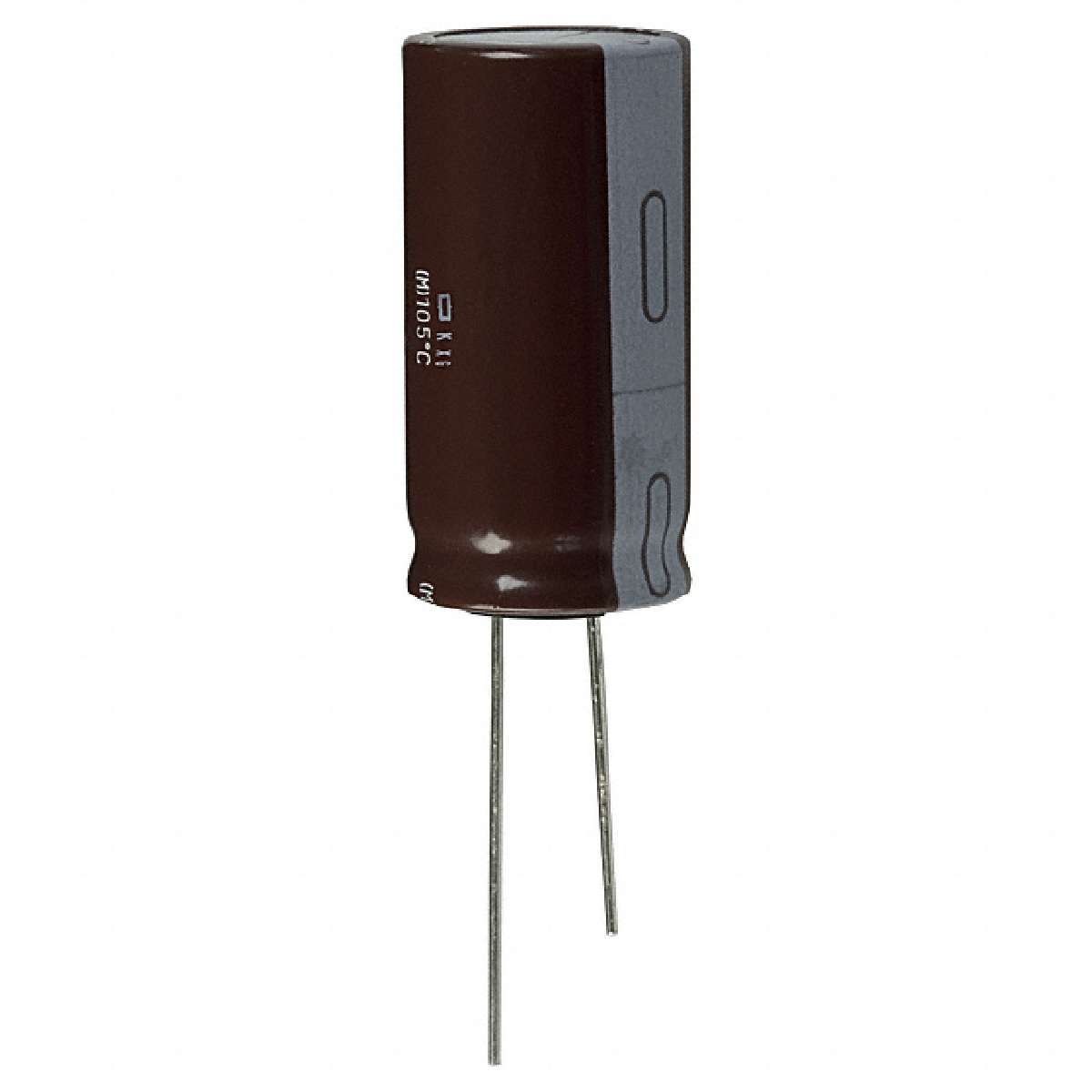

KXG Series 330 uF 200 V ±20% Through Hole Radial Aluminum Electrolytic Capacitor
|
||
| 标准包装：250 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 200V |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 330µF |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Ripple Current | 1.43A @ 120Hz |
| Manufacturer | United Chemi-Con |
| Series | KXG |
| Applications | General Purpose |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Packaging | Bulk |
| Tolerance | ±20% |
| Lead Spacing | 0.295" (7.50mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| ECCN | EAR99 |
