| EGPA250ELL182MK25S | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

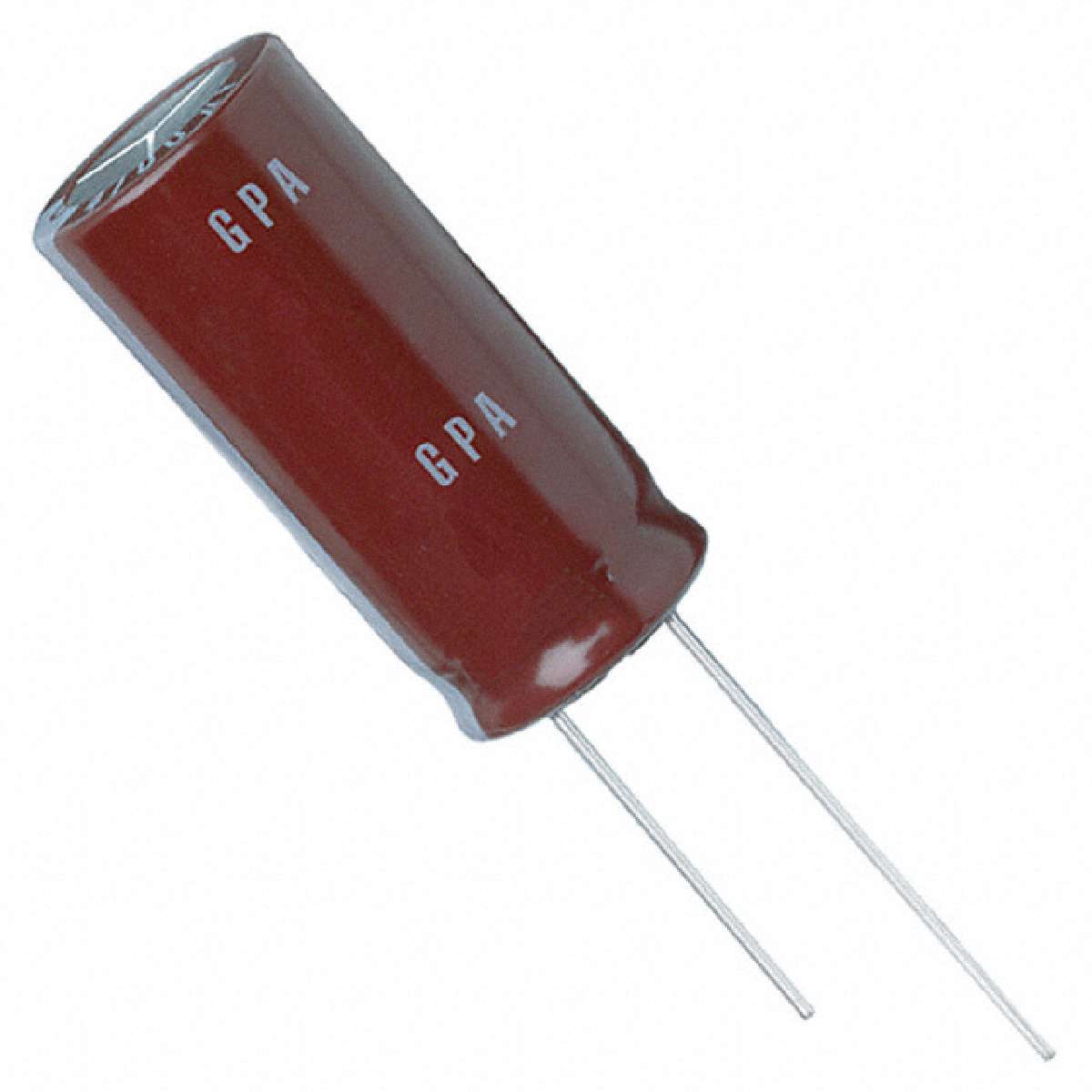

GPA Series 25 V 1800 uF Ø12.5 x 25 mm LS=5 mm Aluminum Electrolytic Capacitor
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 25V |
|---|---|
| Package / Case | Radial, Can |
| Capacitance | 1800µF |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Ripple Current | 2.28A |
| Manufacturer | United Chemi-Con |
| Series | GPA |
| Applications | Automotive |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Packaging | Bulk |
| Tolerance | ±20% |
| Lead Spacing | 0.197" (5.00mm) |
| ESR (Equivalent Series Resistance) | 33 mOhm |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C |
| ECCN | EAR99 |
