EG1213
EG1213
  • ACTIVE
  • EAR99

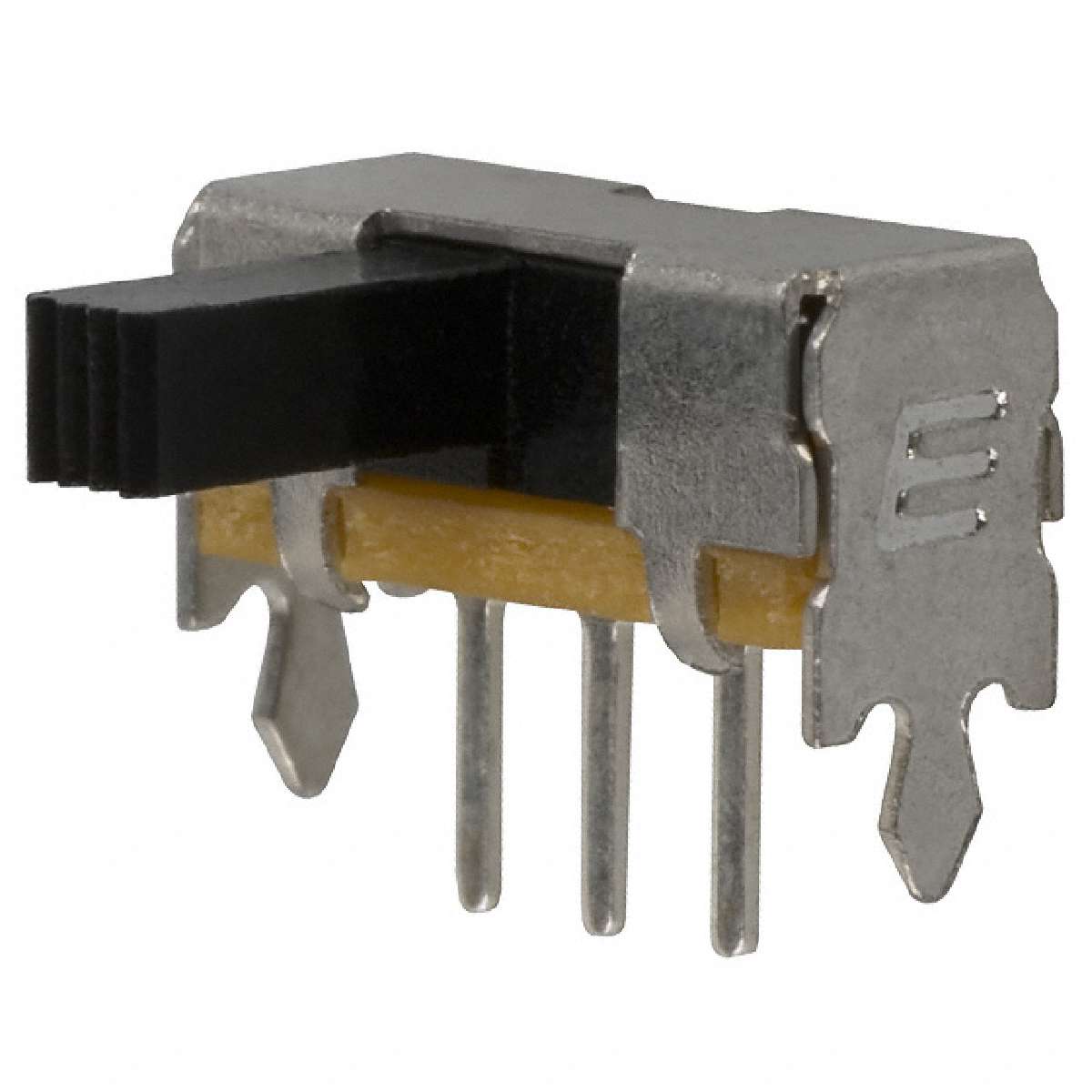

Product description : EG Series SPDT On-On Right Angle Through Hole Slide Switch
SPQ：1000
Datasheet :
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews

Circuit SPDT
Switch Function On-On
Actuator Length 5.00mm
Voltage Rating - DC 30V
Electrical Life 10,000 Cycles
Category Switches
Switch Travel 2.00mm
Operating Force 150 ~ 400gf
Family Slide Switches
Operating Temperature -10°C ~ 60°C
Packaging Bulk
Current Rating 200mA (DC)
Actuator Type Standard
Contact Finish Silver
Termination Style PC Pin
Part Status Active
Manufacturer E-Switch
Contact Material Copper Alloy
Series EG
Mechanical Life 10,000 Cycles
Mounting Type Through Hole, Right Angle
Contact Timing Non-Shorting (BBM)
Actuator Material Polyamide (PA66), Nylon 6/6
ECCN EAR99
Datasheet：
