| EEU-FM1V122S | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

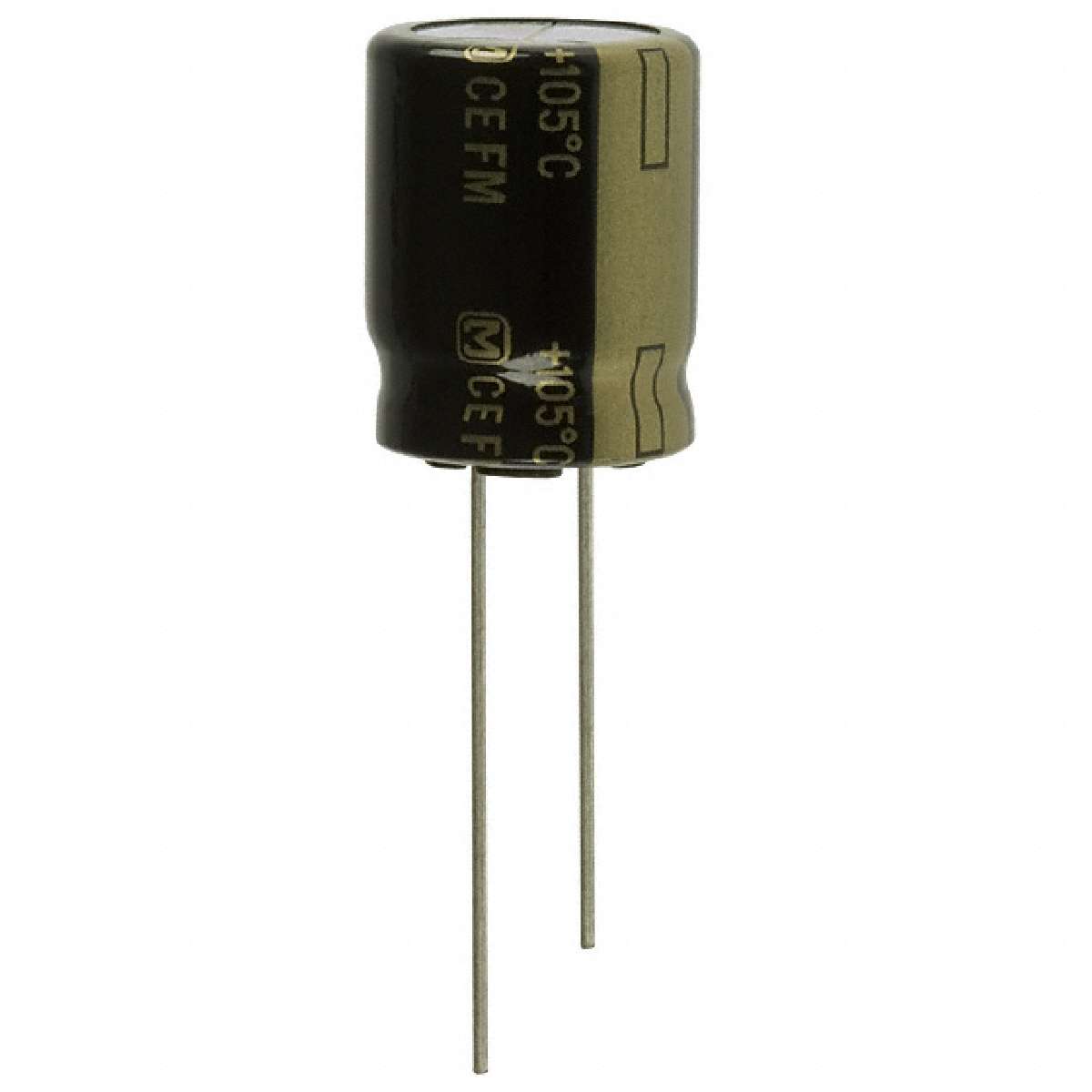

EEU-FM Series 35 V 1200 uF Ø 16 x 20 mm LS=7.5 mm Aluminum Electrolytic Cap
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Impedance | 17 mOhm |
|---|---|
| Voltage Rating | 35V |
| Lead Spacing | 0.295" (7.50mm) |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Capacitance | 1200µF |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Ripple Current | 2.64A @ 120Hz |
| Manufacturer | Panasonic Electronic Components |
| Series | FM |
| Applications | General Purpose |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Packaging | Bulk |
