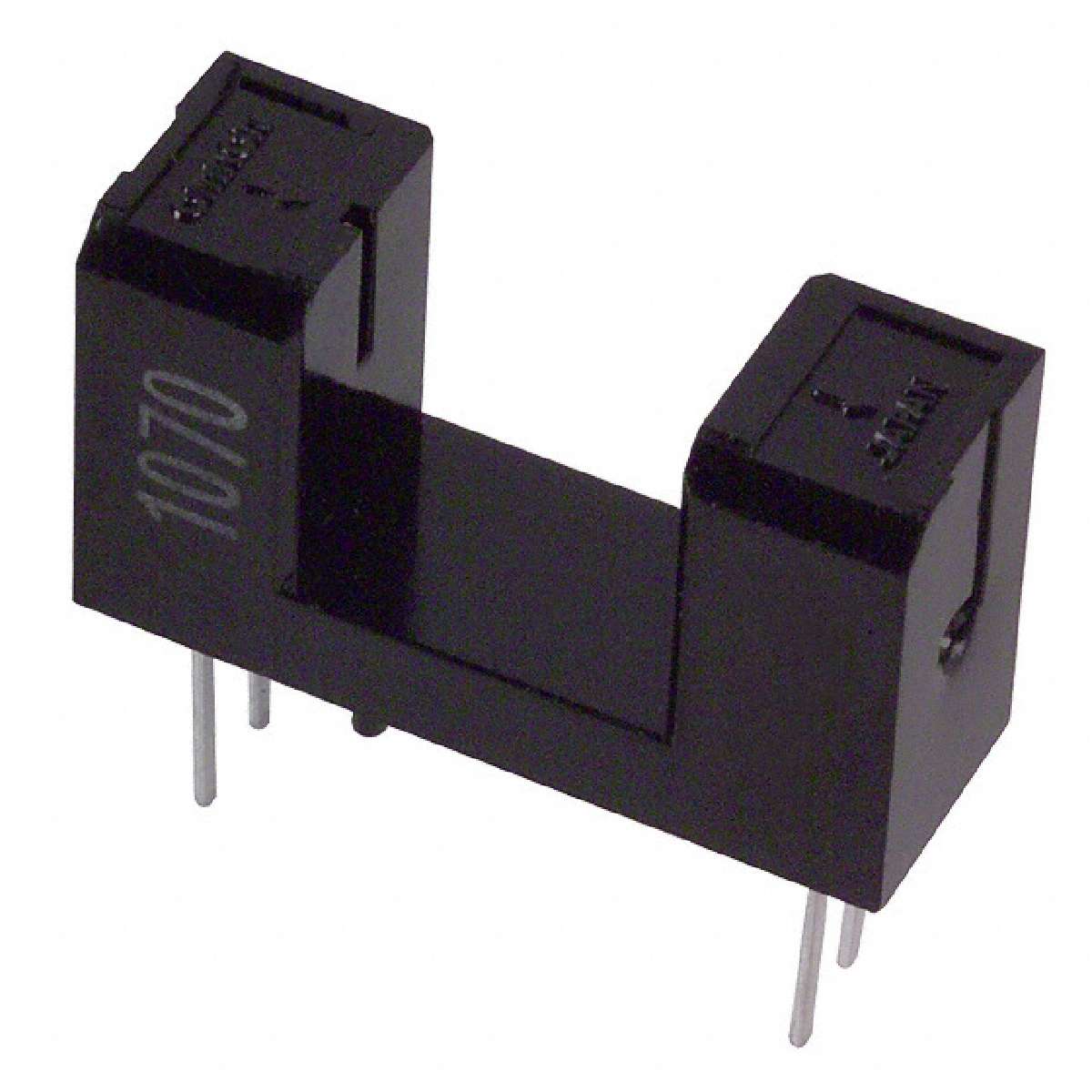

| EE-SX1070 | ||
|---|---|---|
|
|
||
|
||
| Product description : Sensor: photoelectric; through-beam (with slot); Slot width: 8mm | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Sensing Distance: | 8 mm |
|---|---|
| Packaging: | Bulk |
| Minimum Operating Temperature: | - 25 C |
| Aperture Width: | 0.5 mm |
| Vf - Forward Voltage: | 1.2 V |
| Fall Time: | 4 us |
| Output Type: | Phototransistor |
| Series: | EE-SX1070 |
| Brand: | Omron Electronics |
| RoHS: | Details |
| Termination Style: | Solder Pin |
| Collector- Emitter Voltage VCEO Max: | 30 V |
| Wavelength: | 940 nm |
| Sensing Method: | Transmissive, Slotted |
| Width: | 8 mm |
| Pd - Power Dissipation: | 100 mW |
| Mounting Style: | Through Hole |
| Maximum Collector Current: | 20 mA |
| Manufacturer: | Omron |
| Vr - Reverse Voltage: | 4 V |
| Factory Pack Quantity: | 200 |
| Part # Aliases: | 1167222 367395 EESX1070NC OMREESX1070 |
| Slot Width: | 8 mm |
| Product Category: | Optical Switches, Transmissive, Phototransistor Output |
| Rise Time: | 4 us |
| Maximum Operating Temperature: | + 95 C |
