| STTH1512GY-TR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

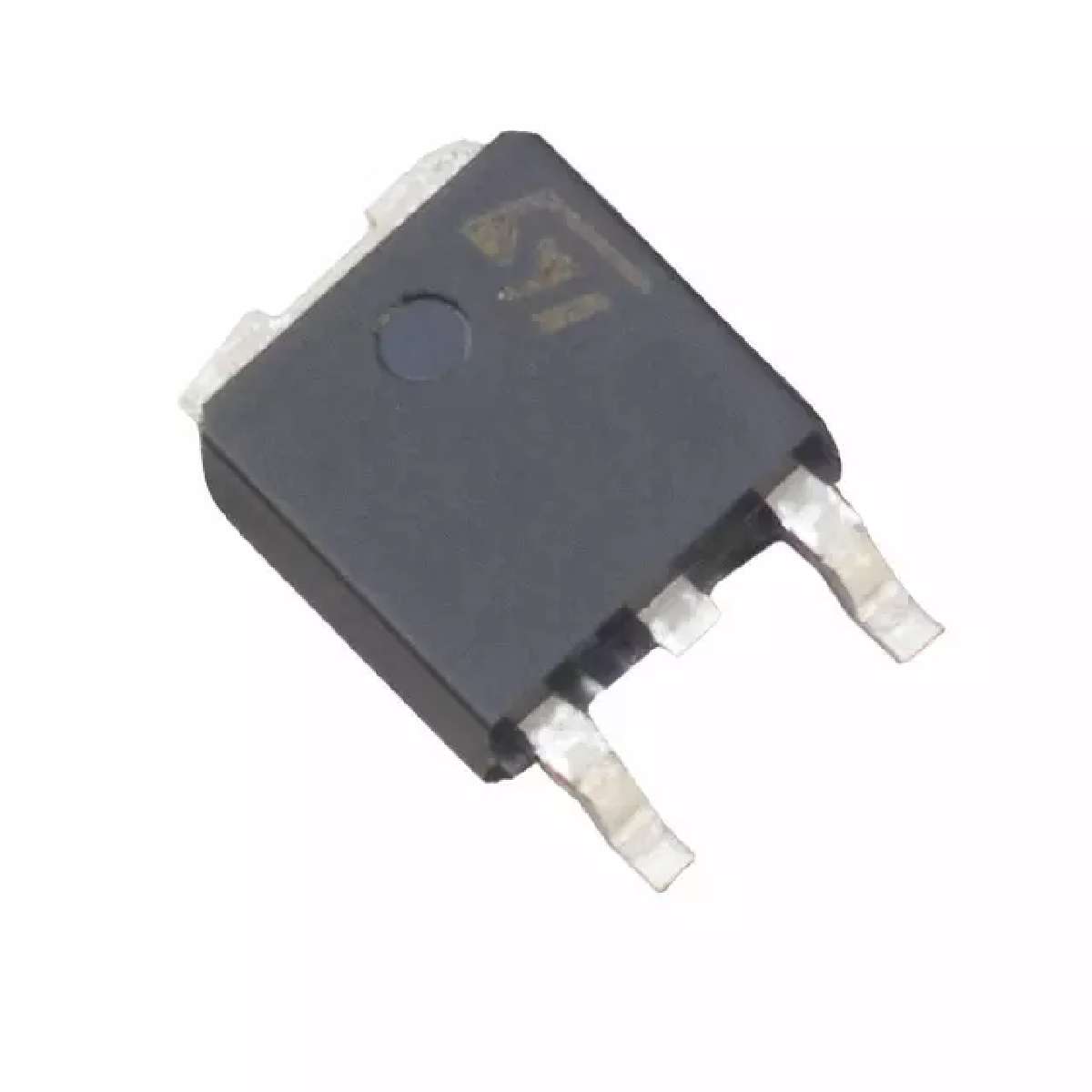

Automotive Grade 15 A 1200 V 75 ns Surface Mount Ultrafast Diode - D2PAK
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | -40°C ~ 175°C |
|---|---|
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Diode Type | Standard |
| Reverse Recovery Time (trr) | 105ns |
| Online Catalog | Standard Diode |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Max) @ If | 1.9V @ 15A |
| RoHS | Lead free / RoHS Compliant |
| Current - Average Rectified (Io) | 15A |
| Supplier Device Package | D2PAK |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 15µA @ 1200V |
| Family | Diodes, Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 1200V (1.2kV) |
| Packaging | Cut Tape (CT) |
| ECCN | EAR99 |
