| ECW-FD2W105J | ||
|---|---|---|
|
|
||
|
||

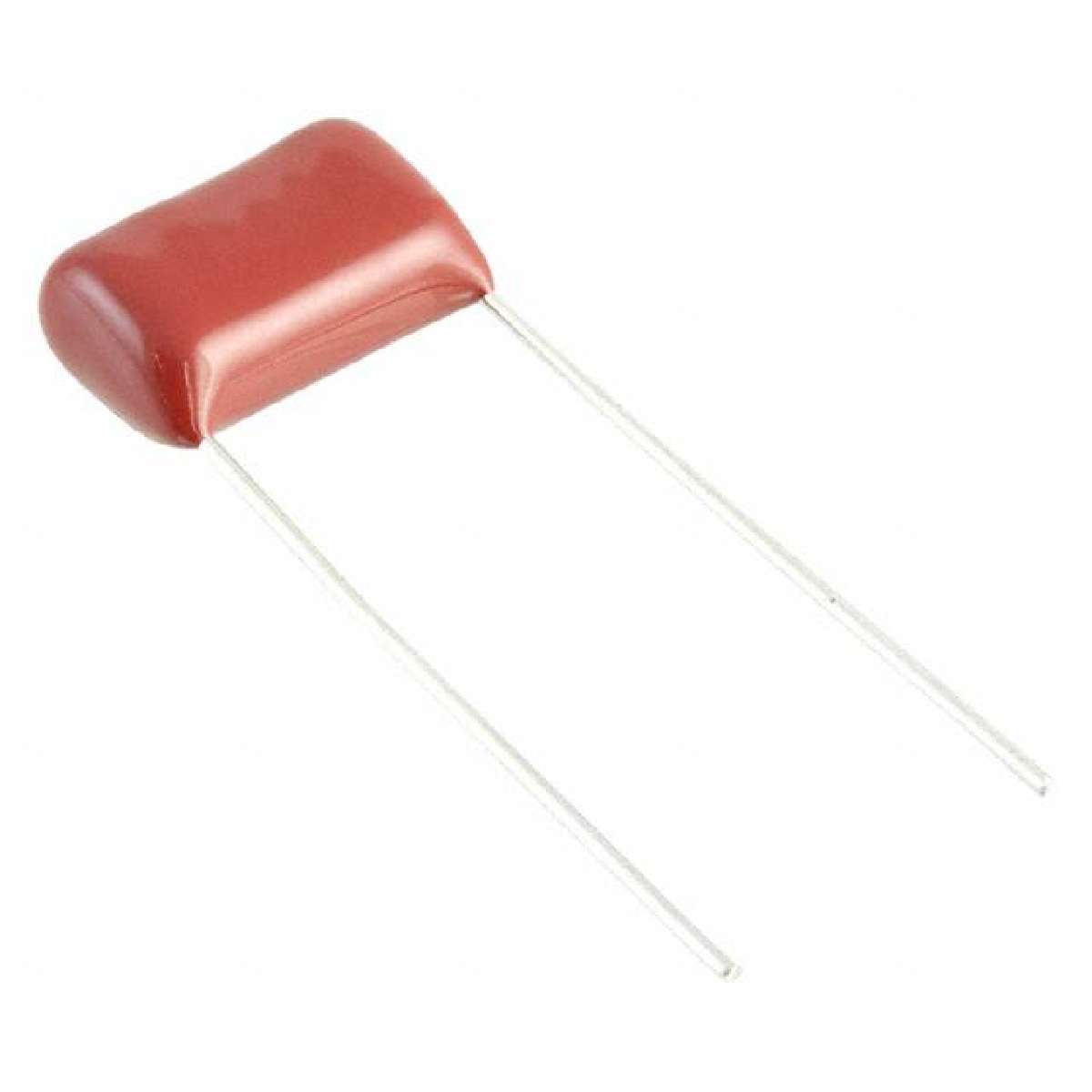

| Product description : ECWFD Series Ø 17.5 x 7.8 x 11 mm 450 V 1 uF ±5 % Through Hole Film Capacitor | ||
| SPQ：100 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | PC Pins |
|---|---|
| Package / Case | Radial |
| Capacitance | 1µF |
| Dielectric Material | Polypropylene (PP), Metallized |
| Part Status | Active |
| Manufacturer | Panasonic Electronic Components |
| Series | ECW-F(D) |
| Applications | EMI, RFI Suppression; High Frequency, Switching; High Pulse, DV/DT |
| Operating Temperature | -40°C ~ 110°C |
| ECCN | EAR99 |
| Tolerance | ±5% |
| Lead Spacing | 0.591" (15.00mm) |
| Voltage Rating - DC | 450V |
| Size / Dimension | 0.689" L x 0.307" W (17.50mm x 7.80mm) |
| Category | Capacitors |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Family | Film Capacitors |
| Mounting Type | Through Hole |
| Packaging | Bulk |
