| ECS-LVDS33-2000-BN | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

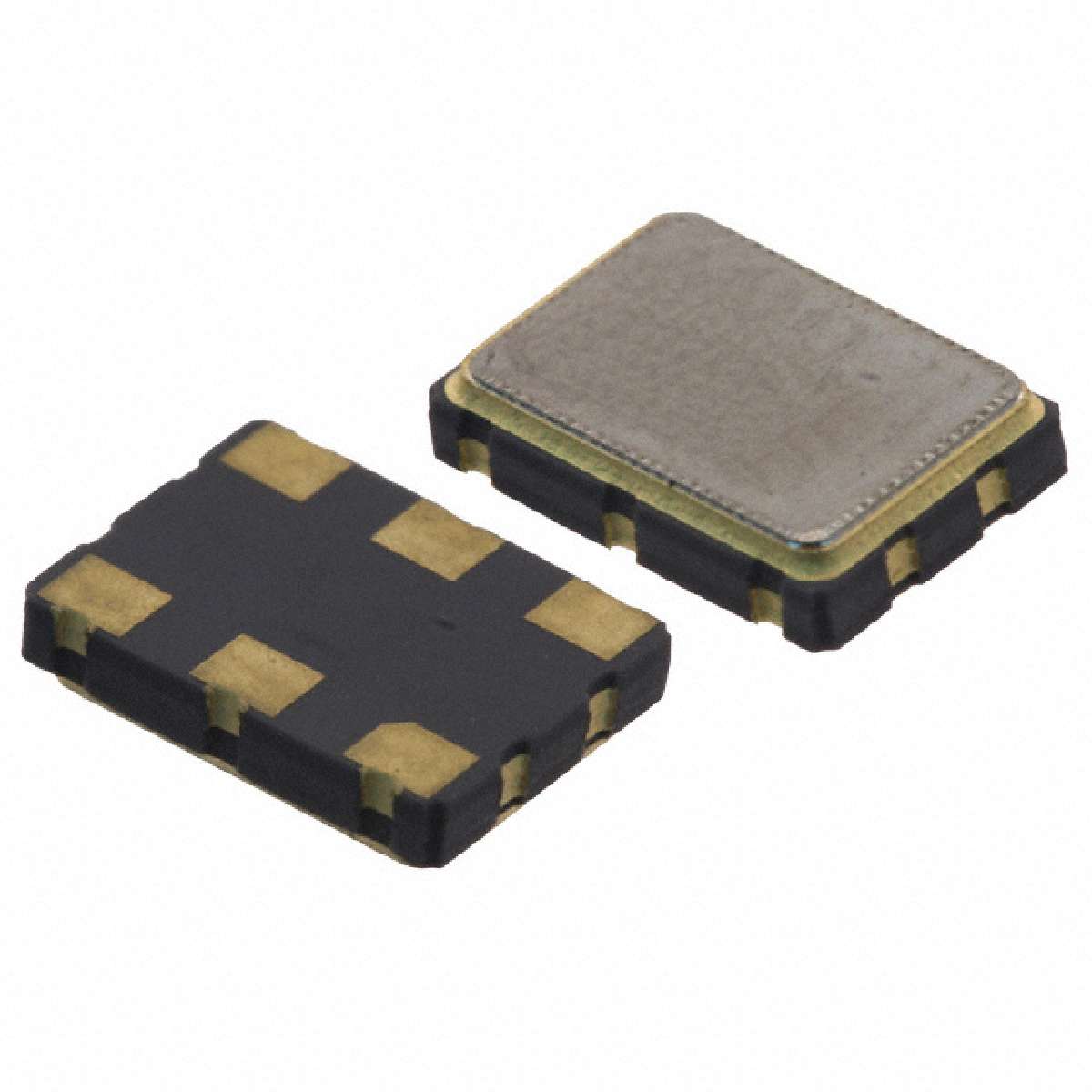

OSC XO 200.000MHZ LVDS SMD
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Frequency Stability | ±50ppm |
|---|---|
| Package / Case | 6-SMD, No Lead (DFN, LCC) |
| Function | Enable/Disable |
| Output | LVDS |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Category | Crystals, Oscillators, Resonators |
| Series | ECS-LVDS33 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Cut Tape (CT) |
| Voltage - Supply | 3.3V |
| Type | XO (Standard) |
| Height | 0.067" (1.70mm) |
| Current - Supply (Max) | 70mA |
| Part Status | Active |
| Manufacturer | ECS Inc. |
| Family | Oscillators |
| Frequency | 200MHz |
| Current - Supply (Disable) (Max) | 30µA |
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$13.13433
￥109.08912
| stock | Out of stock |
|---|---|
| Lead-Time | -- |
| Supplier SPQ/MOQ | 100/100 |
| Location | -- |
| DateCode | -- |
