| ECS-3953M-320-BN-TR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

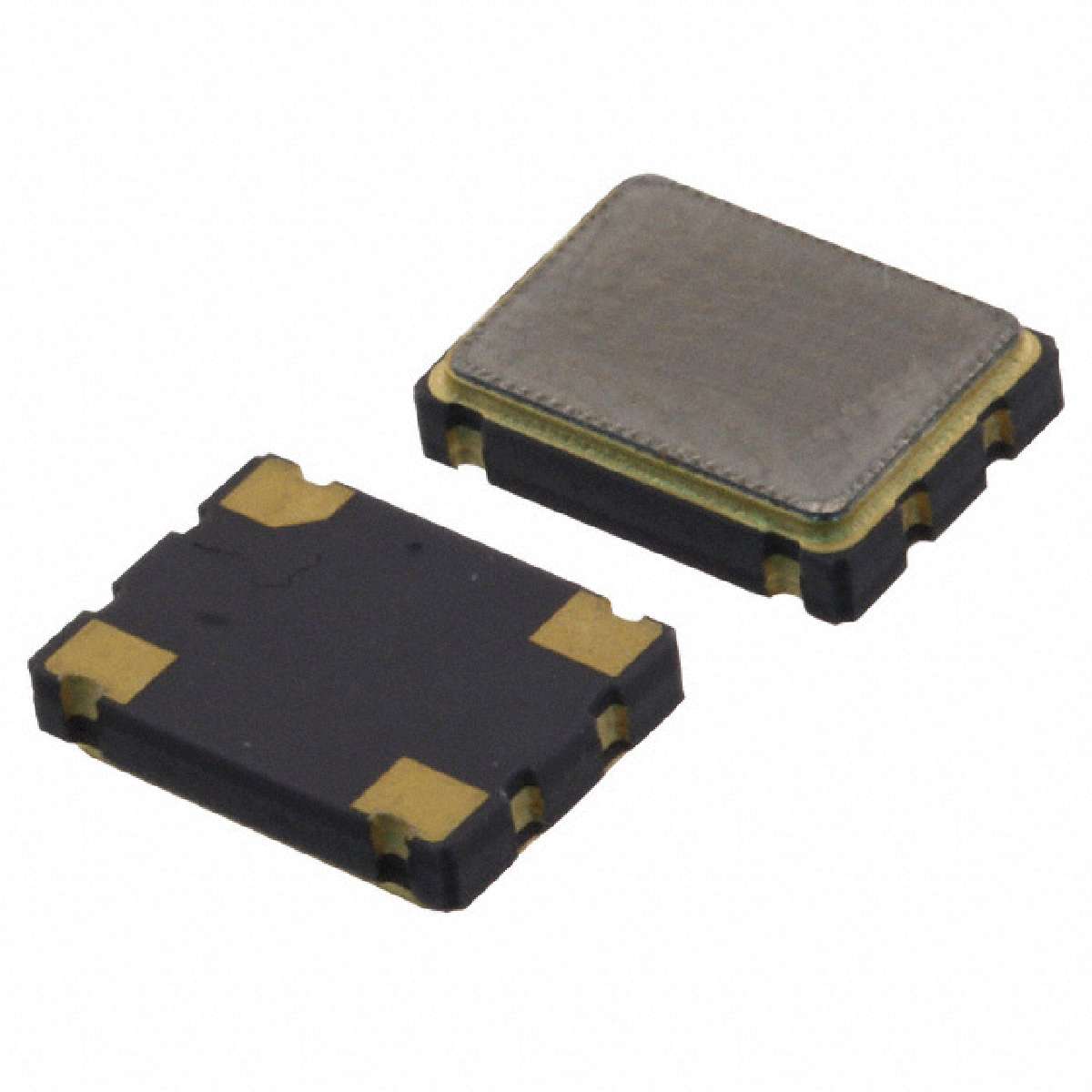

3.3V 32MHz Clock Oscillator
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | XO |
|---|---|
| Packaging: | Reel |
| Frequency: | 32 MHz |
| Package / Case: | 7.5 mm x 5 mm |
| Supply Voltage - Max: | 3.63 V |
| Length: | 7.5 mm |
| Load Capacitance: | 15 pF |
| Operating Supply Voltage: | 3.3 V |
| Factory Pack Quantity: | 1000 |
| Brand: | ECS |
| Termination Style: | SMD/SMT |
| Current Rating: | 4 mA |
| Maximum Operating Temperature: | + 85 C |
| Width: | 5 mm |
| Minimum Operating Temperature: | - 40 C |
| Supply Voltage - Min: | 2.97 V |
| Height: | 1.6 mm |
| Mounting Style: | SMD/SMT |
| Manufacturer: | ECS |
| Duty Cycle - Max: | 60 % |
| Series: | ECS3953 |
| Frequency Stability: | 50 PPM |
| RoHS: | Details |
| Product Category: | Standard Clock Oscillators |
| Type: | Crystal Oscillator |
| ECCN | EAR99 |
