| ECS-200-20-3X-TR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

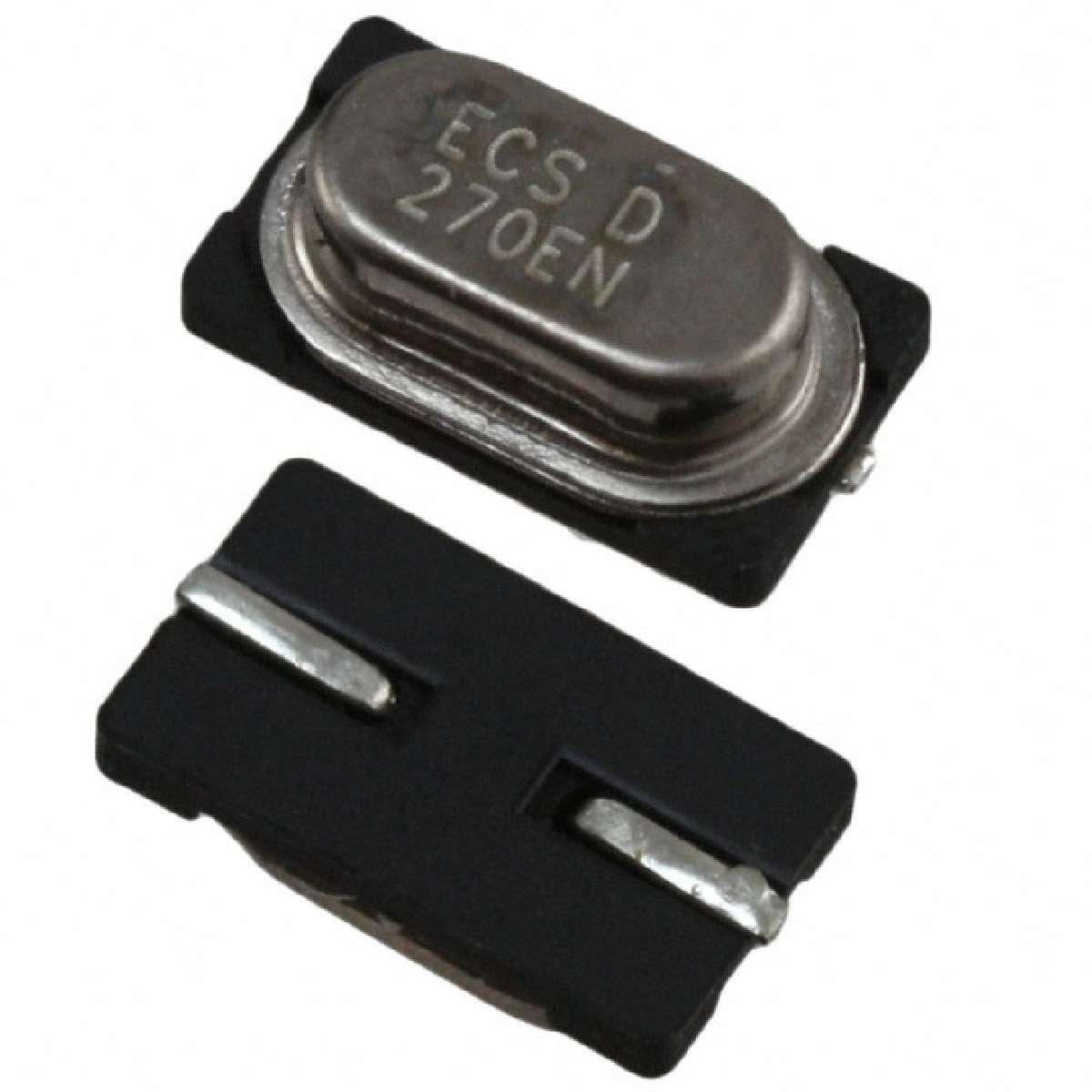

CSM-3X Series 20 MHz ±30 ppm 20 pF -10 to +70 °C Surface Mount Quartz Crystal
|
||
| 标准包装：3000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Frequency Stability | ±50ppm |
|---|---|
| Type | MHz Crystal |
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Part Status | Active |
| Frequency Tolerance | ±30ppm |
| Series | CSM-3X |
| Operating Mode | Fundamental |
| Mounting Type | Surface Mount |
| Operating Temperature | -10°C ~ 70°C |
| ECCN | EAR99 |
| Package / Case | HC49/US |
| Height | 0.091" (2.30mm) |
| Size / Dimension | 0.276" L x 0.161" W (7.00mm x 4.10mm) |
| Category | Crystals and Oscillators |
| Manufacturer | ECS Inc. |
| Family | Crystals |
| Load Capacitance | 20pF |
| Frequency | 20MHz |
| Packaging | Digi-Reel® |
