| DSP8-12A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

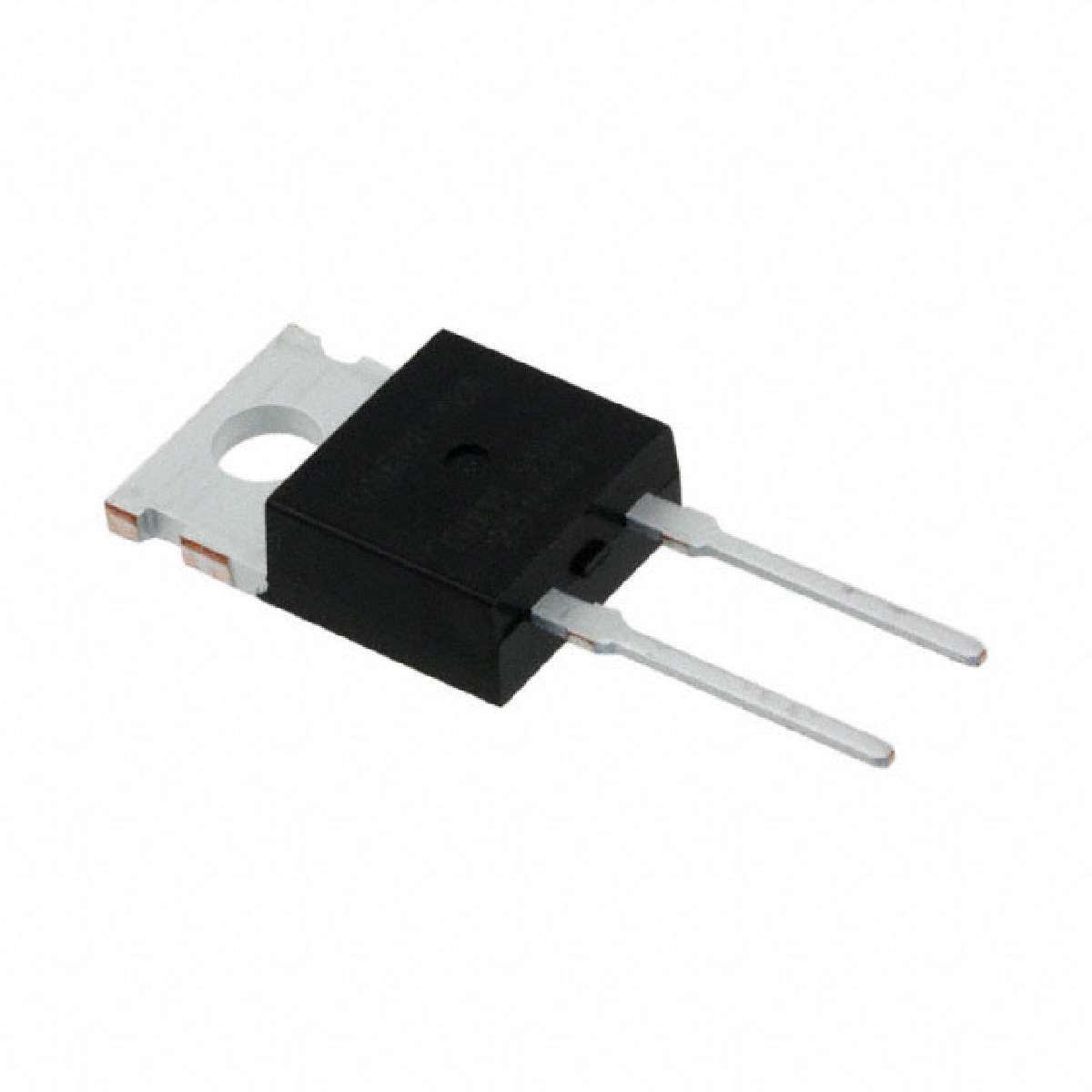

DSP8-12 Series 1200 Vrrm 2 x 11 A 1.15 Vf Phase-leg Rectifier Diode - TO-220AB
|
||
| 标准包装：50 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | Standard Recovery Rectifiers |
|---|---|
| Packaging: | Tube |
| Minimum Operating Temperature: | - 55 C |
| Pd - Power Dissipation: | 100 W |
| Package / Case: | TO-220-3 |
| Configuration: | Dual |
| Unit Weight: | 0.081130 oz |
| Length: | 10.66 mm |
| Manufacturer: | IXYS |
| Series: | DSP8-12 |
| Brand: | IXYS |
| Product Category: | Rectifiers |
| Maximum Operating Temperature: | + 175 C |
| Width: | 4.82 mm |
| Max Surge Current: | 120 A |
| Operating Temperature Range: | - 55 C to + 175 C |
| Ir - Reverse Current: | 0.2 mA |
| Height: | 16 mm |
| Mounting Style: | Through Hole |
| Vf - Forward Voltage: | 1.08 V |
| If - Forward Current: | 8 A |
| Vr - Reverse Voltage: | 1200 V |
| Factory Pack Quantity: | 50 |
| RoHS: | Details |
| Type: | Standard Rectifier |
| ECCN | EAR99 |
