| DSA35-16A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

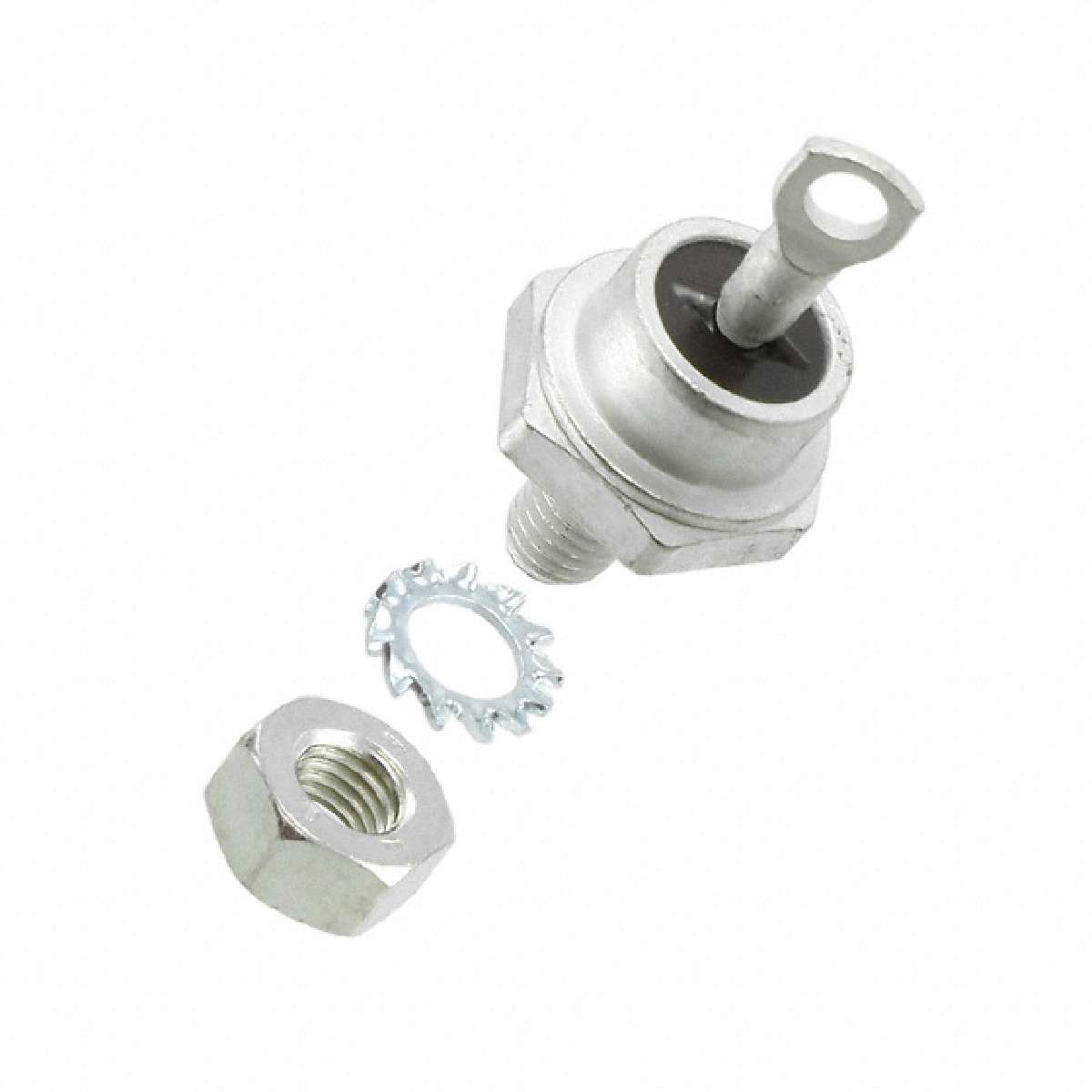

Diode: stud rectifying; 1.6kV; 1.55V; 49A; anode to stud; DO203AB
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | -40°C ~ 180°C |
|---|---|
| Package / Case | DO-203AB, DO-5, Stud |
| Part Status | Active |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Manufacturer | IXYS |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 1600V (1.6kV) |
| Packaging | Bulk |
| Current - Average Rectified (Io) | 49A |
| Supplier Device Package | DO-203AB |
| Diode Type | Avalanche |
| Category | Discrete Semiconductor Products |
| Current - Reverse Leakage @ Vr | 4mA @ 1600V |
| Mounting Type | Chassis, Stud Mount |
| Voltage - Forward (Vf) (Max) @ If | 1.55V @ 150A |
| ECCN | EAR99 |
