| DRQ73-4R7-R | ||
|---|---|---|
|
|
||
|
||

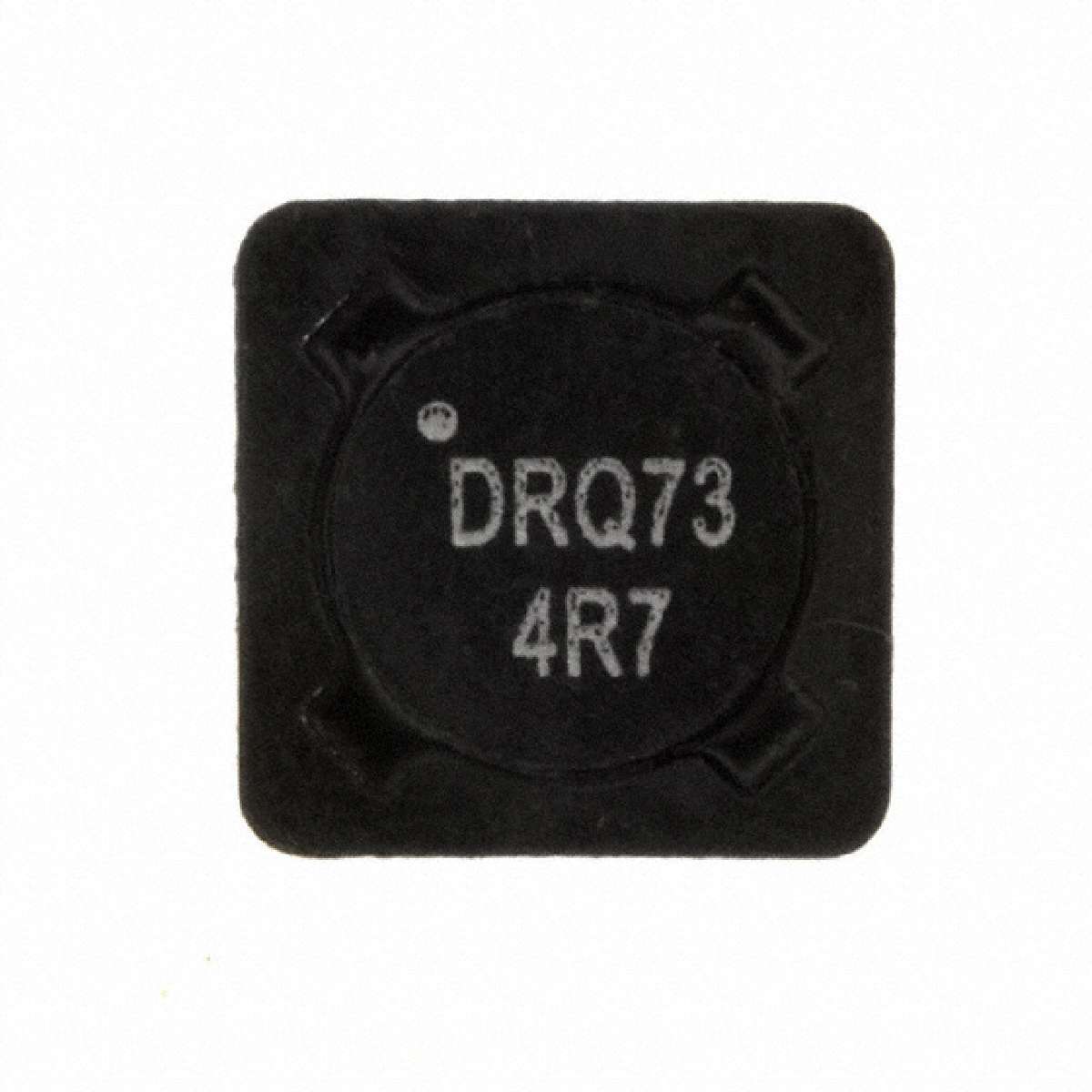

| Product description : DRQ Series 4.7 uH ±20 % 3.09 A 0.0297 Ω Shielded Surface Mount Power Inductor | ||
| SPQ：1 | ||
| Datasheet : |
- Specifications
- Product Attributes
- Documents
- Product reviews
| DC Resistance (DCR) - Series | 118.8 mOhm |
|---|---|
| Package / Case | Nonstandard |
| Height | 0.140" (3.55mm) |
| Inductance - Connected In Series | 17.69µH |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Current Rating - Series | 1.55A |
| Category | Inductors, Coils, Chokes |
| Current Saturation - Parallel | 3.78A |
| Series | DRQ |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| DC Resistance (DCR) - Parallel | 29.7 mOhm |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 4.422µH |
| Part Status | Active |
| Current Rating - Parallel | 3.09A |
| Manufacturer | Eaton |
| Current Saturation - Series | 1.89A |
| Family | Arrays, Signal Transformers |
| Shielding | Shielded |
| Packaging | Cut Tape (CT) |
| Datasheet： |
|---|
