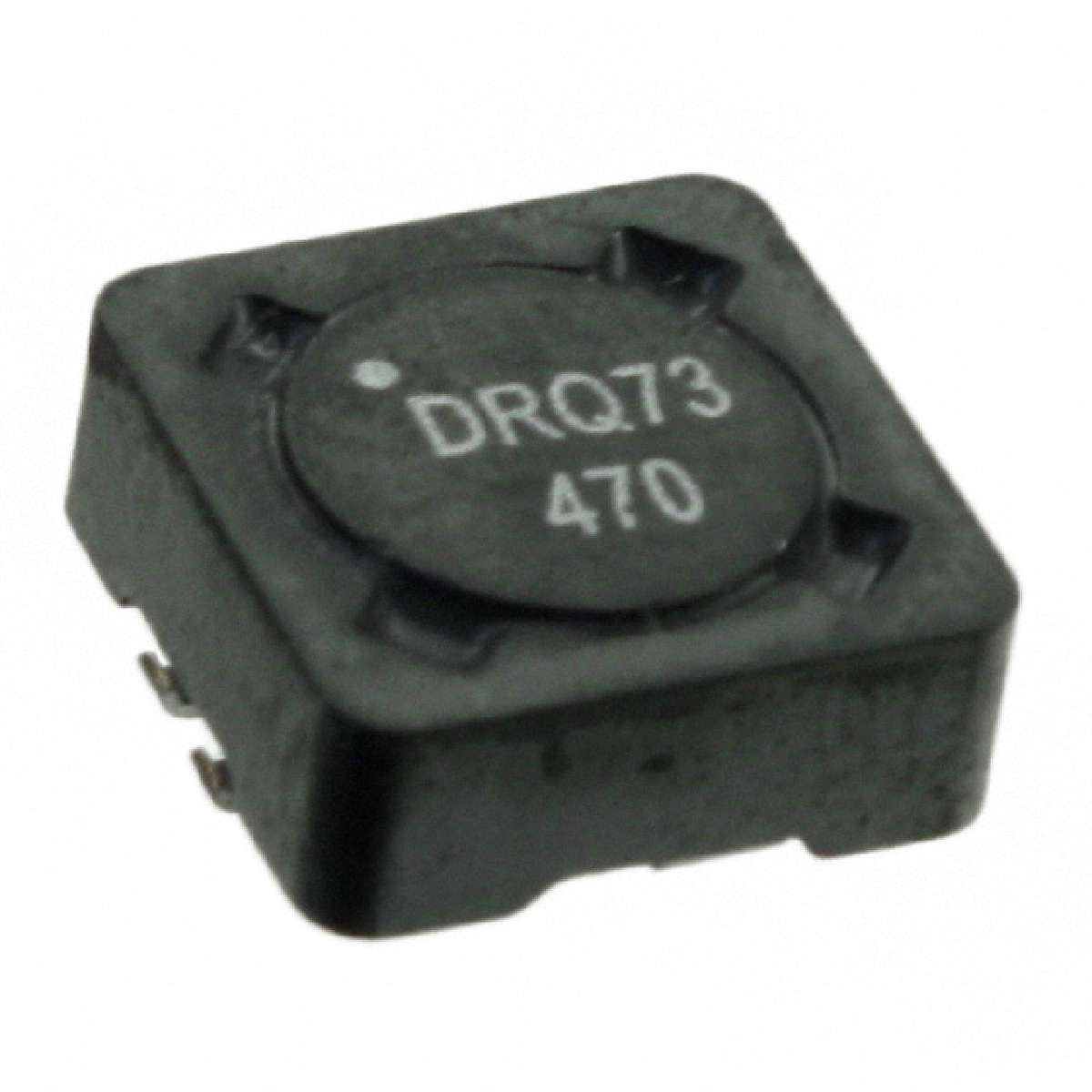

DRQ73-470-R | ||
---|---|---|
|
||
|
||
Product description : DRQ Series 47 uH ±20 % Tolerance 1.08 A Shielded SMT Power Inductor | ||
SPQ:1350 | ||
Datasheet : |
DC Resistance (DCR) - Series | 965 mOhm |
---|---|
Package / Case | Nonstandard |
Height | 0.140" (3.55mm) |
Inductance - Connected In Series | 194.5µH |
Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
Current Rating - Series | 542mA |
Category | Inductors, Coils, Chokes |
Current Saturation - Parallel | 1.14A |
Series | DRQ |
Mounting Type | Surface Mount |
Operating Temperature | -40°C ~ 125°C |
ECCN | EAR99 |
Tolerance | ±20% |
DC Resistance (DCR) - Parallel | 241 mOhm |
Number of Coils | 2 |
Inductance - Connected In Parallel | 48.62µH |
Part Status | Active |
Current Rating - Parallel | 1.08A |
Manufacturer | Eaton |
Current Saturation - Series | 570mA |
Family | Arrays, Signal Transformers |
Shielding | Shielded |
Packaging | Tape & Reel (TR) |
Datasheet: |
---|
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
See more prices
40+ | $2.55301 |
---|---|
100+ | $2.42529 |
340+ | $2.31586 |
680+ | $1.73228 |
stock | 1340 | Update On 2024-11-29 |
---|---|---|
Lead-Time | 0Weeks | |
Supplier SPQ/MOQ | 1350/40 | |
Location | -- | |
DateCode | 2352 |
