| DRQ73-150-R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

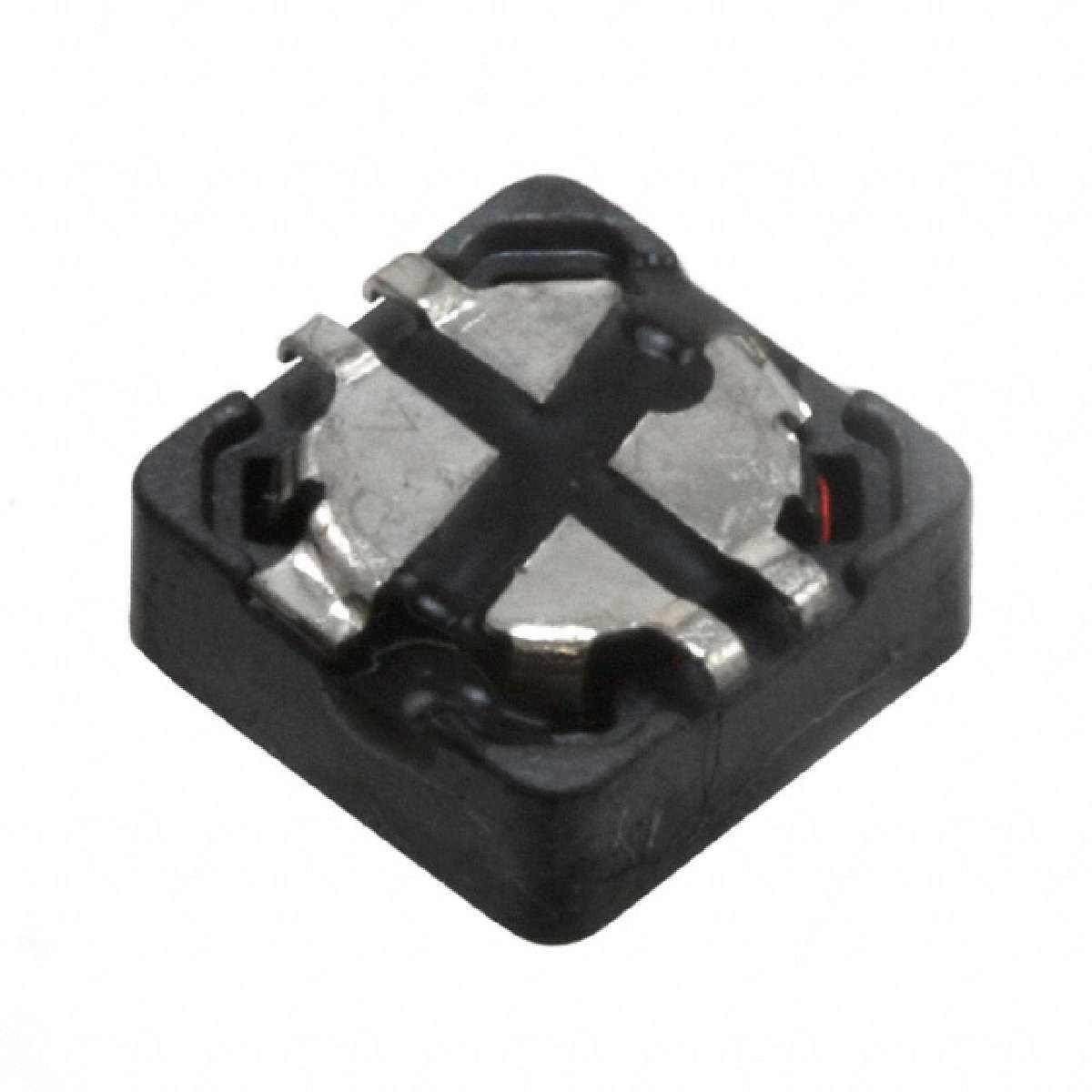

DRQ Series 7.6 x 7.6 x 3.55 mm 15 uH 1.83 A ±20 % Shielded Dual Winding Inductor
|
||
| 标准包装：1350 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Nonstandard |
|---|---|
| DC Resistance (DCR) - Series | 339 mOhm |
| Height | 0.140" (3.55mm) |
| Inductance - Connected In Series | 60.04µH |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Current Rating - Series | 916mA |
| Category | Inductors, Coils, Chokes |
| Current Saturation - Parallel | 2.05A |
| Series | DRQ |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| DC Resistance (DCR) - Parallel | 84.4 mOhm |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 15.01µH |
| Part Status | Active |
| Current Rating - Parallel | 1.83A |
| Manufacturer | Eaton |
| Current Saturation - Series | 1.03A |
| Family | Arrays, Signal Transformers |
| Shielding | Shielded |
| Packaging | Digi-Reel® |
| 数据手册： |
|---|
登录之后就可发表评论
Availability3Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 1350 | Update On 2025-06-24 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 1350/1350 | |
| Location | -- | |
| DateCode | 2422 |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$2.8565
￥23.725080538042032
See more prices
| 1+ | $2.8565 |
|---|---|
| 10+ | $2.61671 |
| 25+ | $2.08878 |
| 100+ | $1.81862 |
| 250+ | $1.54675 |
| 500+ | $1.47064 |
| stock | 776 | Update On 2022-12-02 |
|---|---|---|
| Lead-Time | 12Weeks | |
| Supplier SPQ/MOQ | 1350/1 | |
| Location | -- | |
| DateCode | 1752 |
