| DRA127-220-R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

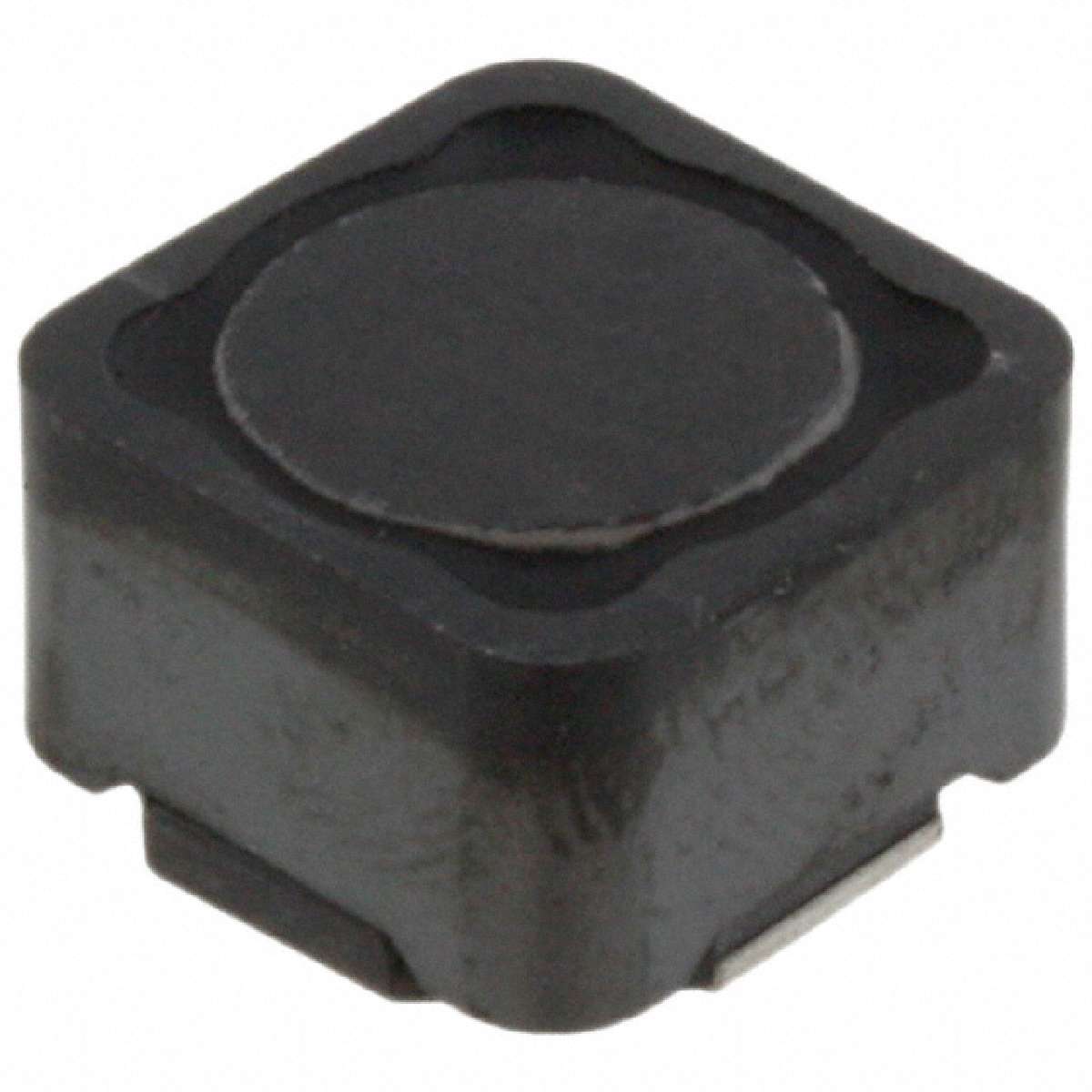

DRA Series 22 uH ±20 % Tolerance 3.98 A Shielded SMT Power Inductor
|
||
| 标准包装：350 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Inductance: | 21.47 uH |
|---|---|
| Product: | Power Inductors |
| Packaging: | Reel |
| Length: | 12.5 mm |
| Manufacturer: | Eaton |
| Operating Temperature Range: | - 40 C to + 165 C |
| Brand: | Coiltronics / Eaton |
| RoHS: | Details |
| Product Category: | Fixed Inductors |
| Maximum DC Resistance: | 47 mOhms |
| Height: | 8 mm |
| Type: | Automotive Inductor |
| Core Material: | Ferrite |
| Width: | 12.5 mm |
| Test Frequency: | 100 kHz |
| Qualification: | AEC-Q200 |
| Series: | DRA127 |
| Factory Pack Quantity: | 350 |
| Maximum DC Current: | 7.57 A |
| Termination Style: | SMD/SMT |
| Shielding: | Shielded |
| Tolerance: | 20 % |
| Unit Weight: | 0.208000 oz |
| ECCN | EAR99 |
| 数据手册： |
|---|
