| DR1050-680-R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

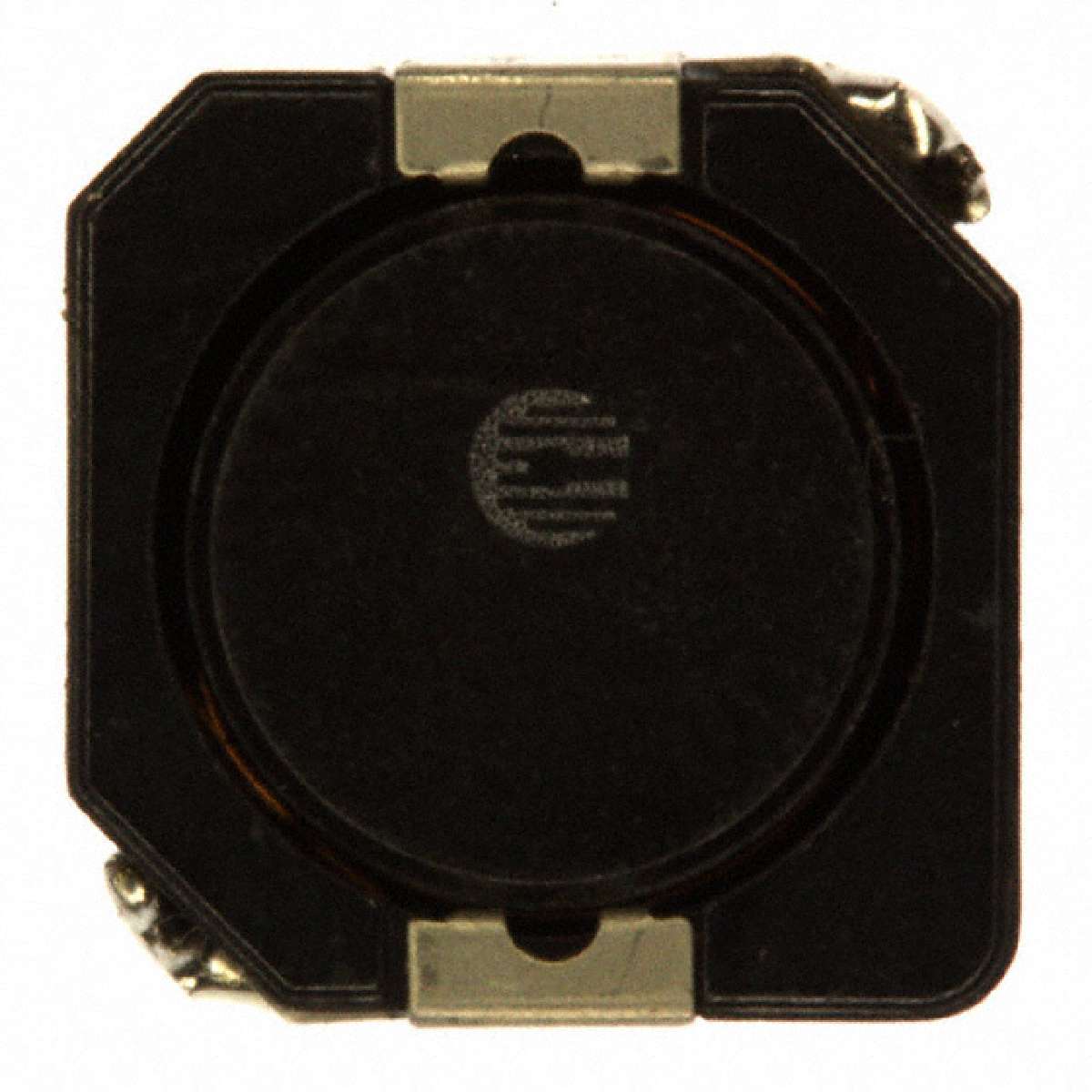

DR Series 68 uH ±30 % Tolerance 1.84 A Shielded SMT High Power Inductor
|
||
| 标准包装：500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Nonstandard |
|---|---|
| Tolerance | ±30% |
| Current - Saturation | 1.7A |
| Part Status | Active |
| Manufacturer | Eaton |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 139 mOhm Max |
| Current Rating | 1.84A |
| ECCN | EAR99 |
| Inductance | 68µH |
| Type | Wirewound |
| Size / Dimension | 0.413" L x 0.405" W (10.50mm x 10.30mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Series | DR1050 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Packaging | Tape & Reel (TR) |
| Frequency - Test | 100kHz |
