| DNA30E2200PA | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

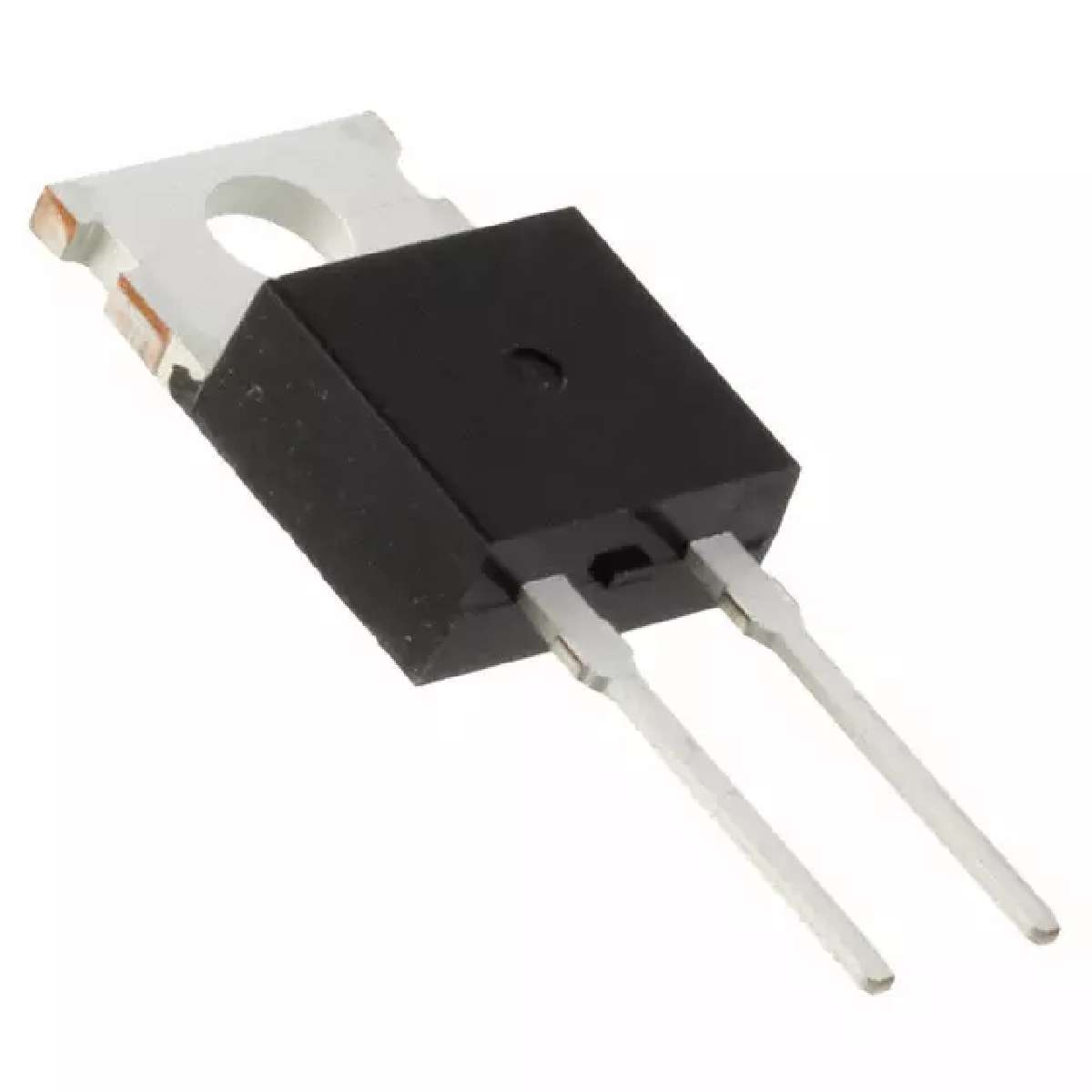

Diode: rectifying; THT; 2.2kV; 30A; tube; Ifsm: 315A; TO220AC; 210W
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | -55°C ~ 175°C |
|---|---|
| Capacitance @ Vr, F | 7pF @ 700V, 1MHz |
| Supplier Device Package | TO-220AC |
| Diode Type | Standard |
| Category | Discrete Semiconductor Products |
| Current - Reverse Leakage @ Vr | 40µA @ 2200V |
| Mounting Type | Through Hole |
| Voltage - Forward (Vf) (Max) @ If | 1.26V @ 30A |
| ECCN | ECL99 |
| Current - Average Rectified (Io) | 30A |
| Package / Case | TO-220-2 |
| Part Status | Active |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Manufacturer | IXYS |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 2200V (2.2kV) |
| Packaging | Tube |
