| DN2535N5-G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
MOSFET, DEPLETION-MODE, 350V, 25 Ohm
|
||
| 标准包装：100 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| FET Feature | Depletion Mode |
|---|---|
| Package / Case | CTUBE |
| Drain to Source Voltage (Vdss) | 350V |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Tj) |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Mounting Type | Through Hole |
| Input Capacitance (Ciss) @ Vds | 300pF @ 25V |
| ECCN | EAR99 |
| Rds On (Max) @ Id, Vgs | 25 Ohm @ 120mA, 0V |
| Power - Max | 15W |

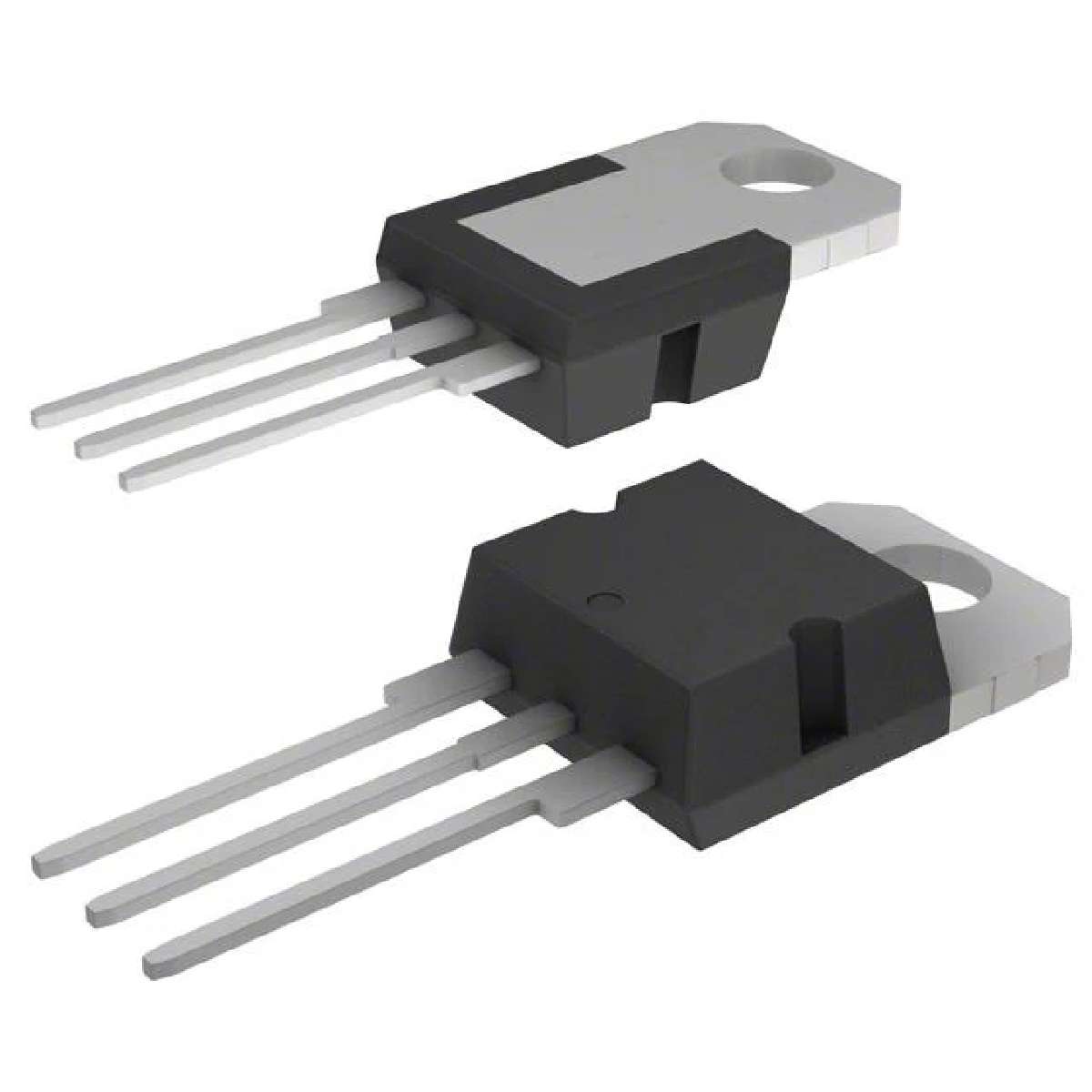

| Supplier Device Package | TO-220-3 |
| Part Status | Active |
| Manufacturer | Microchip Technology |
| Family | Transistors - FETs, MOSFETs - Single |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Packaging | Tube |
| SDP | 3-TO-220 |
