| DMN2016LFG-7 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

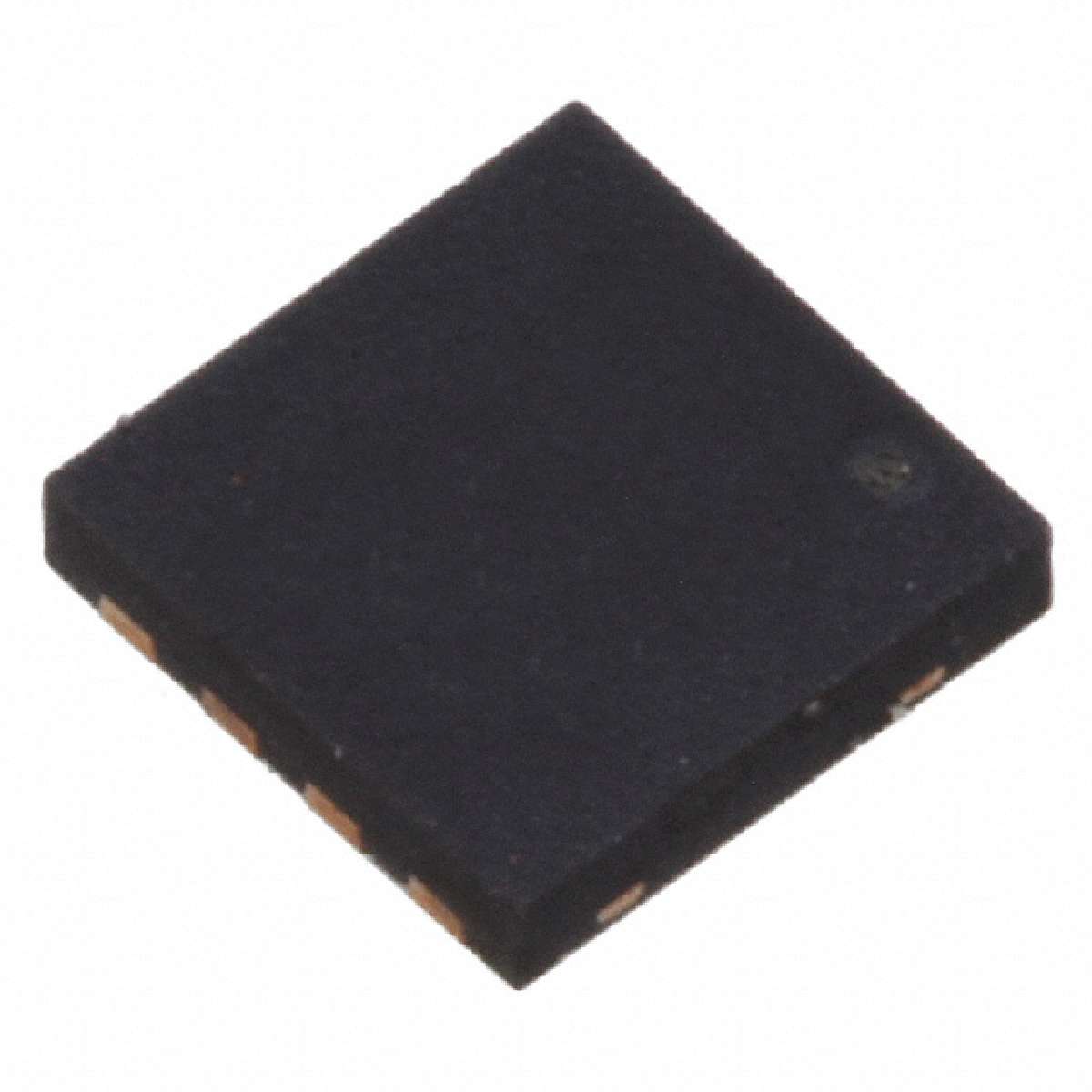

Dual N-Channel 20 V 18 mOhm Enhancement Mode Mosfet -UDFN-8
|
||
| 标准包装：3000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 8-PowerUDFN |
|---|---|
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5.2A |
| Part Status | Active |
| Manufacturer | Diodes Incorporated |
| Family | Transistors - FETs, MOSFETs - Arrays |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 1472pF @ 10V |
| ECCN | EAR99 |
| Rds On (Max) @ Id, Vgs | 18 mOhm @ 6A, 4.5V |
| Power - Max | 770mW |
| Supplier Device Package | U-DFN3030-8 |
| Gate Charge (Qg) @ Vgs | 16nC @ 4.5V |
| Category | Discrete Semiconductor Products |
| FET Type | 2 N-Channel (Dual) Common Drain |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Packaging | Cut Tape (CT) |
