| 0449.500MR | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

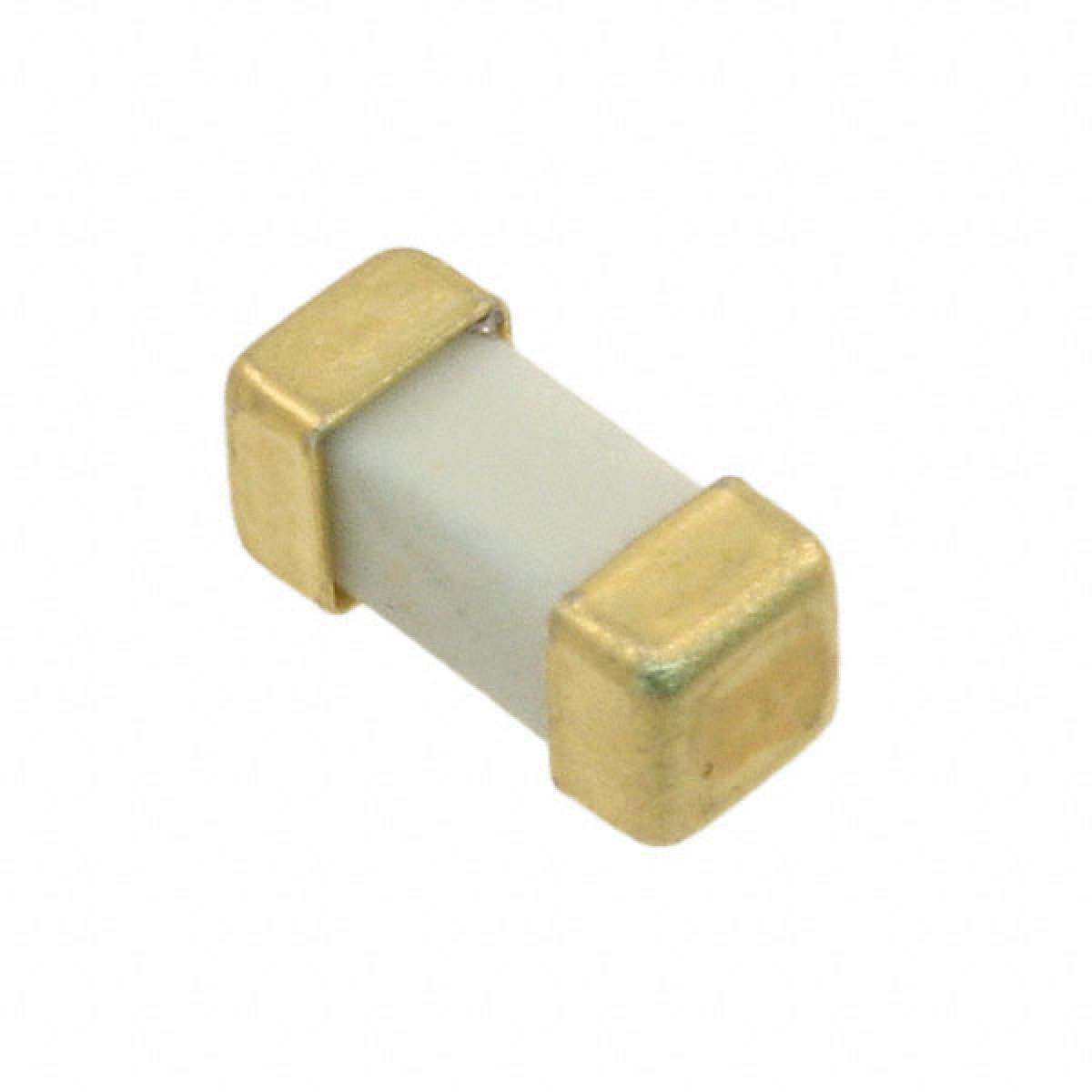

Fuse: fuse; time-lag; 500mA; 125VAC; 125V; 125VDC; SMD; ceramic; 449
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | 2-SMD, Square End Block |
|---|---|
| Voltage Rating - DC | 125V |
| Size / Dimension | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) |
| DC Cold Resistance | 0.7633 Ohm |
| Online Catalog | NANO²® 449 Series |
| Family | Fuses |
| Operating Temperature | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 50A |
| Current Rating | 500mA |
| ECCN | EAR99 |
| Voltage Rating - AC | 125V |
| Approvals | cULus |
| Fuse Type | Board Mount (Cartridge Style Excluded) |
| Response Time | Slow |
| Series | NANO²® 449 |
| Mounting Type | Surface Mount |
| Melting I²t | 0.258 |
| Packaging | Digi-Reel® |
| RoHS | Lead free / RoHS Compliant |
