| DF59-3P-2SP(50) | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

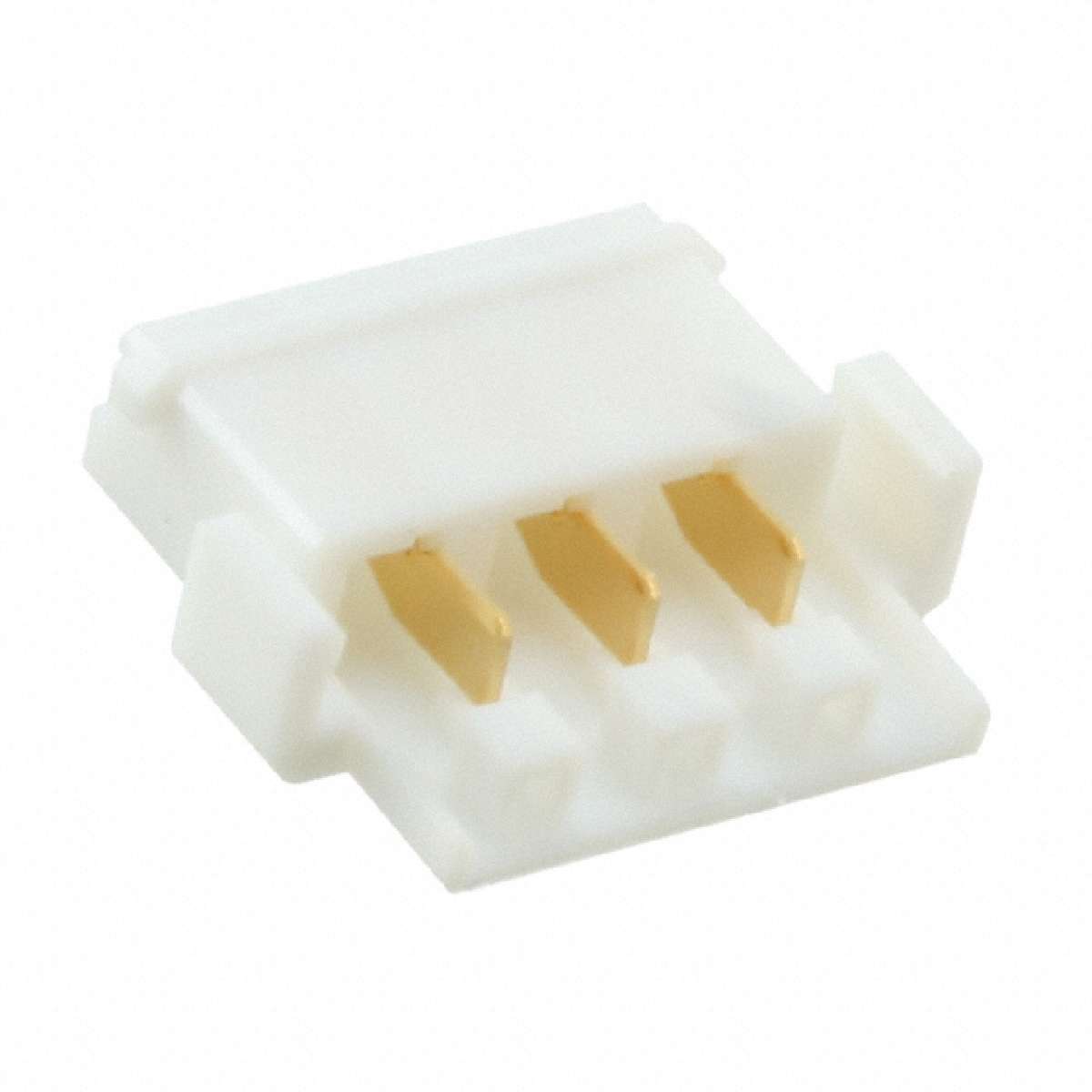

DF59 Series Multifunctional System 3 Position 2mm Pitch Short Pin Plug
|
||
| 标准包装：100 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | Connectors |
|---|---|
| Packaging: | Tray |
| Manufacturer: | Hirose Electric |
| Series: | DF59 |
| Brand: | Hirose Connector |
| Number of Positions: | 3 Position |
| Termination Style: | SMD/SMT |
| Contact Material: | Brass |
| Current Rating: | 3 A |
| Type: | Short Pin |
| Wire Gauge - AWG: | 22 |
| Housing Material: | Polybutylene Terephthalate (PBT) |
| Voltage Rating: | 230 V to 350 V |
| Factory Pack Quantity: | 1 |
| RoHS: | Details |
| Pitch: | 2 mm |
| Application: | Wire to Board |
| Product Category: | Lighting Connectors |
| Contact Plating: | Gold |
| ECCN | EAR99 |
