| 16SVPF270M | ||
|---|---|---|
|
|
||
|
||

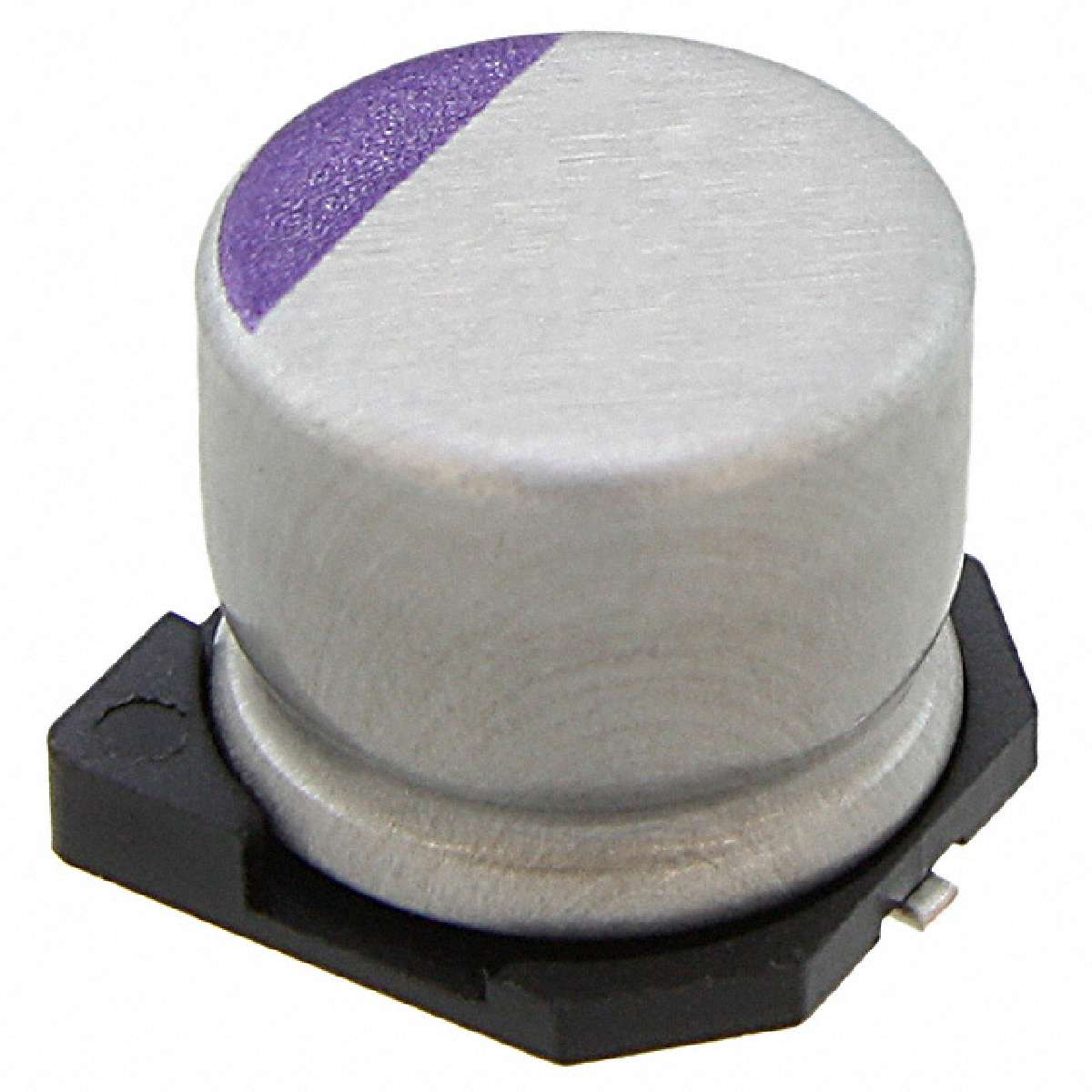

| Product description : SVPF Series 16 V 220 uF Ø8 x 7 mm 105°C V-Chip Polymer Aluminum Capacitor | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 16V |
|---|---|
| Type | Polymer |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| ESR (Equivalent Series Resistance) | 22 mOhm |
| Online Catalog | OS-CON, SVPF Series |
| Family | Aluminum - Polymer Capacitors |
| Operating Temperature | -55°C ~ 105°C |
| Tolerance | ±20% |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Packaging | Tape & Reel (TR) |
| Capacitance | 270µF |
| Ripple Current | 3.3A |
| Series | OS-CON, SVPF |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| RoHS | Lead free / RoHS Compliant |
