| DC3C-A1AA | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

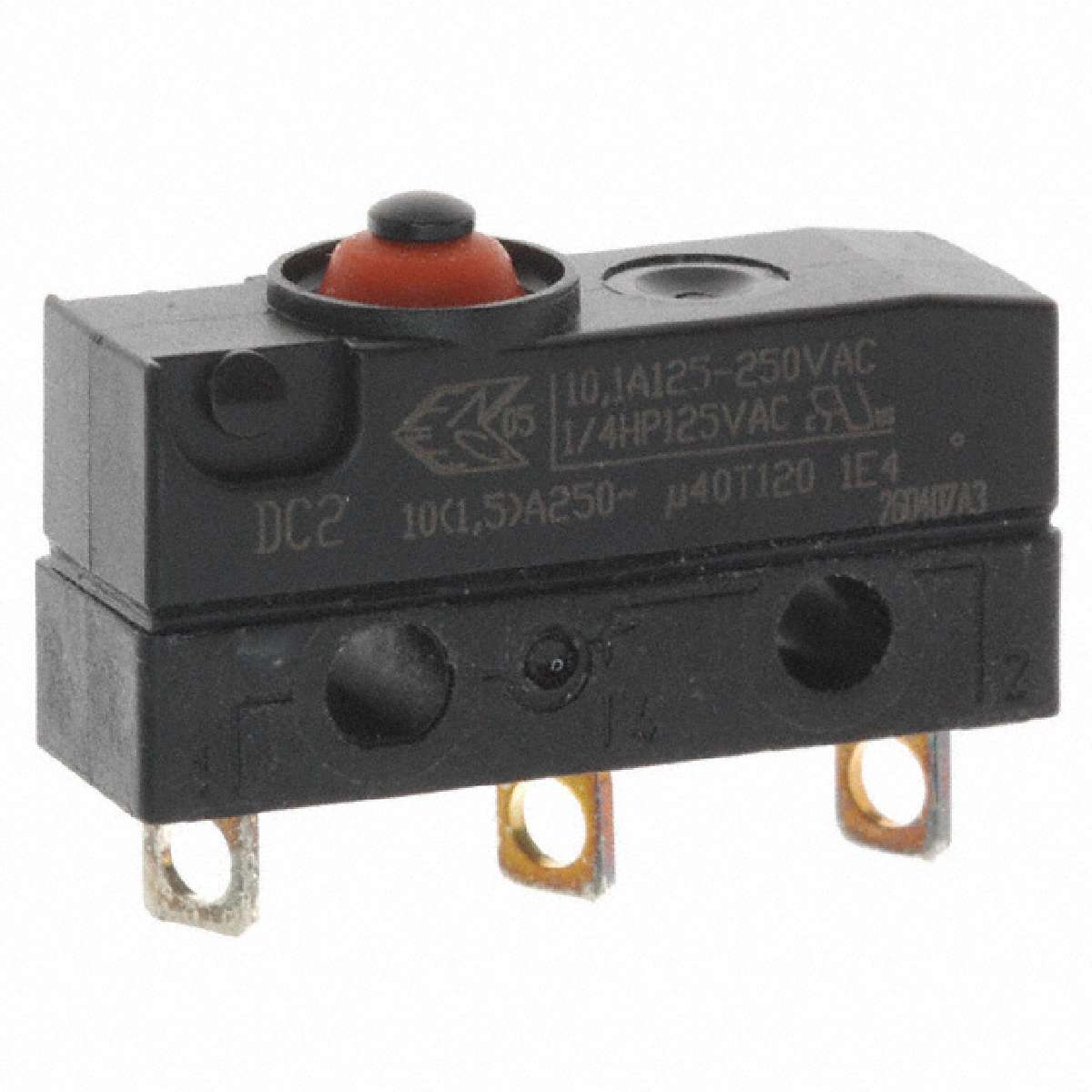

DC Series Sub Mini SPDT 2.04 N Button Solder Lug Snap Action Switch
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | SPDT |
|---|---|
| Switch Function | On-Mom |
| Pretravel | 0.040" (1.0mm) |
| Voltage Rating - AC | 125V |
| Part Status | Active |
| Electrical Life | 100,000 Cycles |
| Manufacturer | Cherry |
| Mechanical Life | 1,000,000 Cycles |
| Family | Snap Action, Limit Switches |
| Overtravel | 0.025" (0.6mm) |
| Packaging | Bulk |
| ECCN | EAR99 |
| Actuator Type | Round (Pin Plunger) |
| Differential Travel | 0.004" (0.1mm) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Termination Style | Solder Lug |
| Operating Force, Torque | 204gf |
| Category | Switches |
| Series | DC |
| Operating Position | 0.330" (8.4mm) |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 120°C |
| Current Rating | 100mA (AC) |
| 数据手册： |
|---|
