| CWSC21JFAFS | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

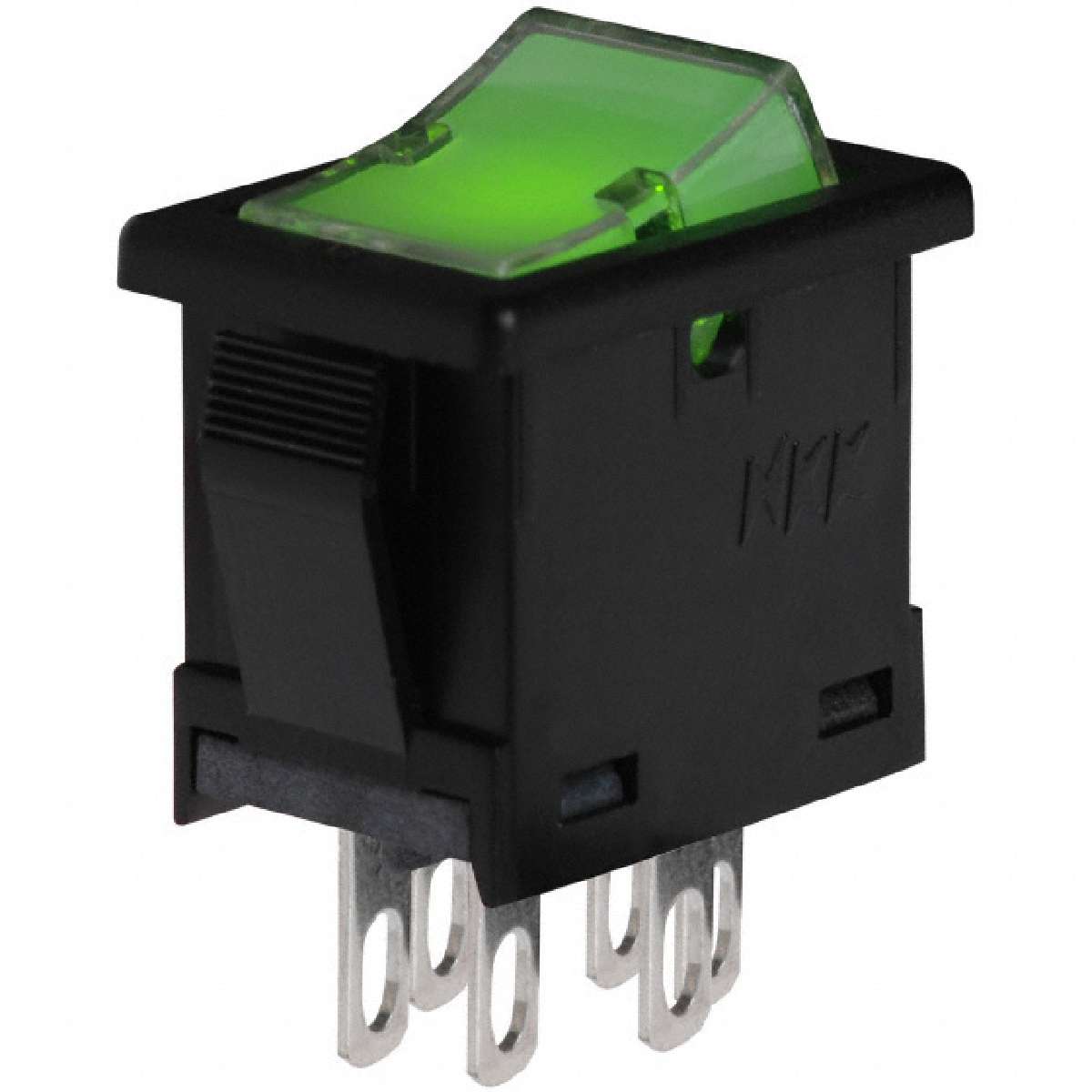

CWSC Series 9 A Mini DPST On-None-Off Vertical Quick Connect Rocker Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Color: | Green |
|---|---|
| Contact Rating: | 9 A at 125 V |
| Switch Function: | ON - OFF |
| Manufacturer: | NKK Switches |
| Series: | CWSC |
| Contact Form: | DPST |
| Part # Aliases: | CW-SC21WCKMMES |
| RoHS: | Details |
| Product Category: | Illuminated Rocker Switches |
| Contact Plating: | Silver |
| Illumination Color: | Clear, Green |
| ECCN | EAR99 |
| Packaging: | Tray |
| Housing Material: | Brass |
| Actuator: | Rocker |
| Voltage Rating AC: | 250 V |
| Operating Temperature Range: | - 10 C to + 50 C |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| Termination Style: | Solder Lug |
| Current Rating: | 9 A |
| Illumination: | Neon |
| Mounting Style: | Panel |
